Daedong HX9010 - Range Gear Shift Lever

4
DESCRIPTION OF OPERATING SYSTEM
4
-
31

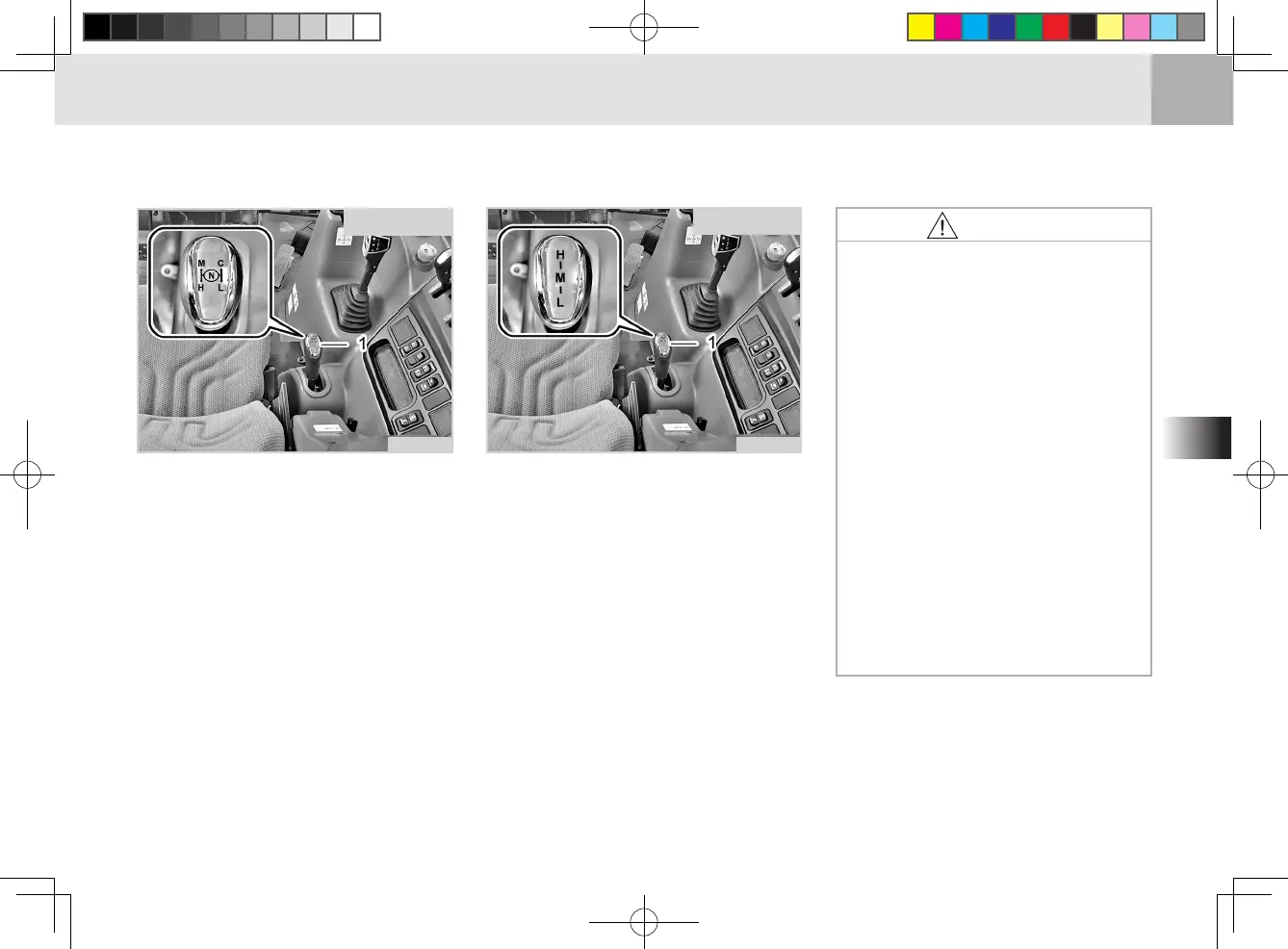

(1) Range Gear Shift lever
(C) Creep Speed (H) High Speed
(L) Low Speed (M) Mid Speed
(N) Neutral
(1) Range Gear Shift lever
(H) High Speed
(M) Mid Speed (L) Low Speed
High, mid, low and creep speeds can
be selected by the range shift lever.
(EU Model)
High, mid and low speeds can be
selected by the range shift lever. (US
Model)
Make sure to shift the range shift lever
after the tractor is completely stopped
by depressing the clutch pedal.
If the lever is not moved freely or
makes abnormal noise, put the lever
into the neutral position, engage and
disengage the clutch, and then try to
shift the lever.
RANGE GEAR SHIFT LEVER
HX1O499U
HX1O4G2A
• Make sure to shift the range
gear shift lever with the clutch
pedal depressed and the tractor
stationary.
• Never put the range shift lever
into the high speed position
during driving backward as it
is dangerous to drive at a high
speed.
• The tractor is not braked by
depressing the brake pedal
without depressing the clutch
pedal at a low speed as rota-
tional force of the axle has a
major effect at a low speed.
Therefore, disengage the clutch
before depressing the brake
pedal to stop the tractor
CAUTION
Position the creep speed lever in the
"H" position in normal conditions, and
shift it to the "L" position only when
necessary.
When the creep speed is selected, the
EU MODEL
US MODEL
