Daedong HX9010 - Instrument Panel

HX9010/1001/1151/1201
4
-
14
11 10 15 21 204 17 23 18 24
345 9 714
21
6
35
19
25 26 27 28 29
31 32 33 13 12 3 16 830
22
TG2O468A

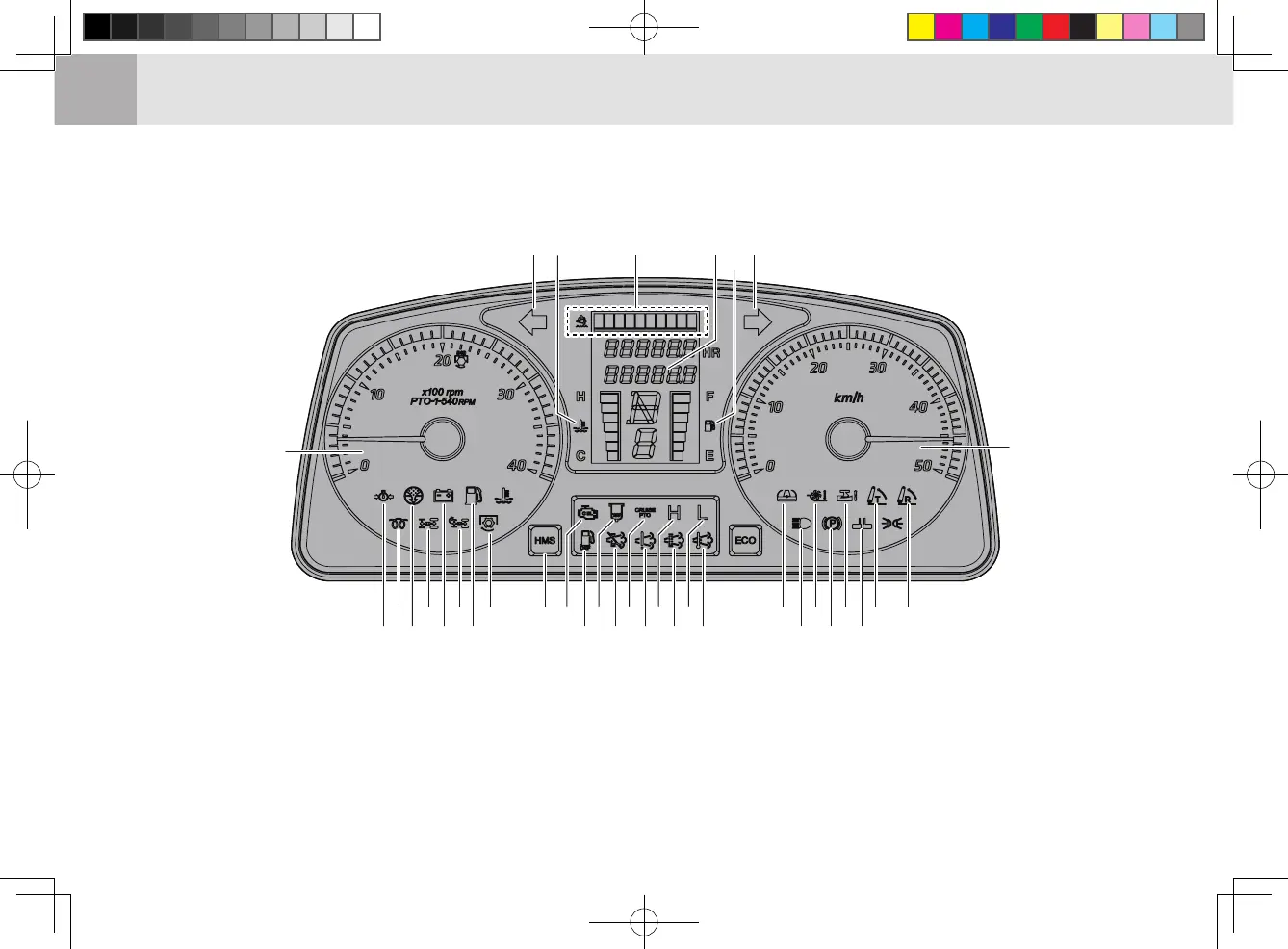

INSTRUMENT PANEL
(1) Engine Oil Pressure Warning Lamp
(2) Battery Charge Warning Lamp
(3) High Beam Lamp
(4) Glow Plug Lamp
(5) Turn Signal Lamp (LH)
(6) Tachometer
(7) Turn Signal Lamp (RH)
(8) One Side Brake Lamp
(9) Coolant Temperature Gauge
(10) Water Sensor Warning Lamp
(11) Engine Check Lamp
(12) DPF Regeneration Underway Lamp
(13) DPF Regeneration Warning Lamp
(14) Hour Meter / Error Code
(15) Cruise PTO Lamp
(16) Parking Brake Lamp
(17) 4WD Operation Lamp
(18) PTO ON Lamp
(19) Low Fuel Level Warning Lamp
(20) Low Speed Lamp
(21) High Speed Lamp
(22) Fuel Gauge
(23) QT
(24) HMS
(25) Horizontal Auto
(26) Auto tilling depth
(27) Auto draft
(28) Turn up
(29) Back Up
(30) Air Filter Clogging Warning Lamp
(31) Urea Low Level Warning Lamp
(32) DPF Prohibition Warning Lamp
(33) Emission Warning Lamp
(34) Urea Low Gauge
(35) Speed meter
Symbols on the instrument panel come on when the key switch is turned to the "ON" position.
