Daedong HX9010 - Slow Blow Fuse

7
MAINTENANCE
7
-
55
10A
15A
30A
BRAKE LAMP
(5P 35/20A)
KEY ON
(5P 35/20A)
15A
30A
10A
SAFETY UNIT
LCD MONITOR
10A
SWITCH MODULE
(B+)
SWITCH
MODULE
(IG+)
POWER
SOCKET
USB
SOCKET
BEACON
DEFROST
25A
BANANA
SOCKET
Refri
10A
10A
20A
WIPER
10A
Spare
20A
25A
25A
3P SOCKET1
(B+)
3P SOCKET1
(IG+)
3P SOCKET2
(IG+)
3P SOCKET2
(B+)
10A SPARE
SPARE
SPARE
10A
10A
20A
25A
Spare
Fuse
Puller
BEACON
(5P 35/20A)
DEFROST
(5P 35/20A)
WORK
LAMP-F,T
(4P 20A)
WORK
LAMP-F,B
(4P 20A)
WORK
LAMP-R
(4P 20A)
WORK
LAMP-S
(4P 20A)
WIPER-S
(5P 20/10A)
WIPER-R
(5P 20/10A)

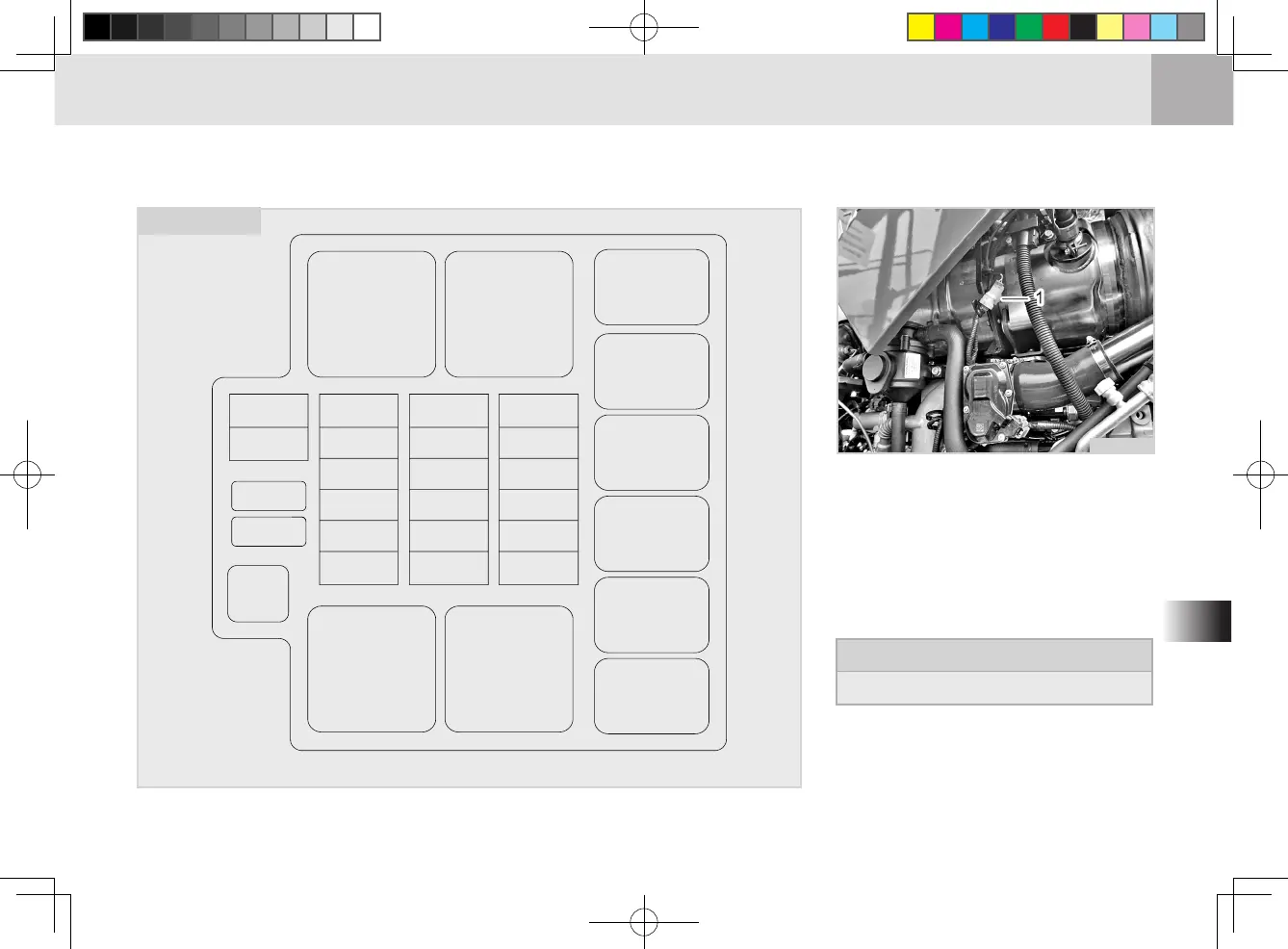

HX1O770A
FUSE BOX 2
(1) Slow Blow Fuse
SLOW BLOW FUSE
The slow-blow fuse is to protect the
electric wiring. If it is blown, nd and
repair the cause and replace it with a
new genuine part.
Slow Blow Fuse
60, 140A
HX1O734A
