Daedong HX9010 - Combination Switch

4
DESCRIPTION OF OPERATING SYSTEM
4
-
7

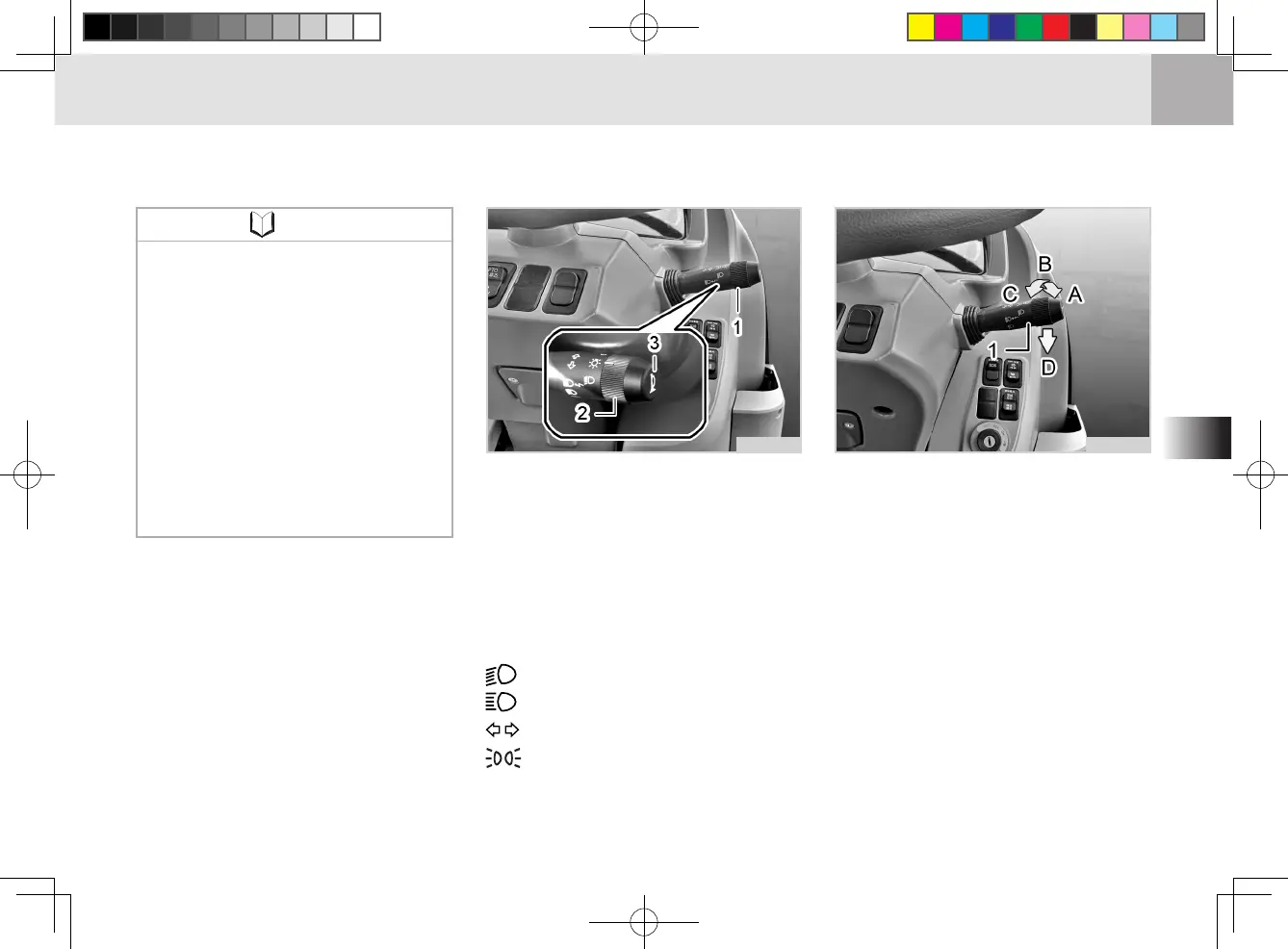

COMBINATION SWITCH
(1) Turn Signal Light Switch
(2) Head Light Switch (3) Horn Switch
NOTE
• When setting the ignition switch to
the OFF position after operation,
the pump is operated to return
urea left in the urea pump and
injector back to the tank, making
a ticking sound. This is normal.
• Do not set the battery cut-off
switch to the OFF position or
disconnect the battery during this
state.
• This takes for approximately two
minutes.
(1) Head Light Switch
(A) OFF (B) Instrument Panel ON
(C) Low Beam ON (D) High Beam ON
HEAD LIGHT SWITCH
The head light switch can be operated
only while the key switch is turned to
the "ON" position. Turning the head
light switch clockwise one click will
illuminate the instrument panel lights
while turning it one more click will
illuminate the low beam head lights.
HX1O404A
The combination switch consists of the
head light, turn signal light, and horn
switches. Its function by its position is
as follows :
"OFF" : Head light and tail light "OFF"
: Low beam and tail light "ON"
: High beam "ON"
: Turn signal light and tail light "ON"
: Head light "OFF" and tail light "ON"
HX1O405B
