(1) Brake Pedal
(A) Free Play

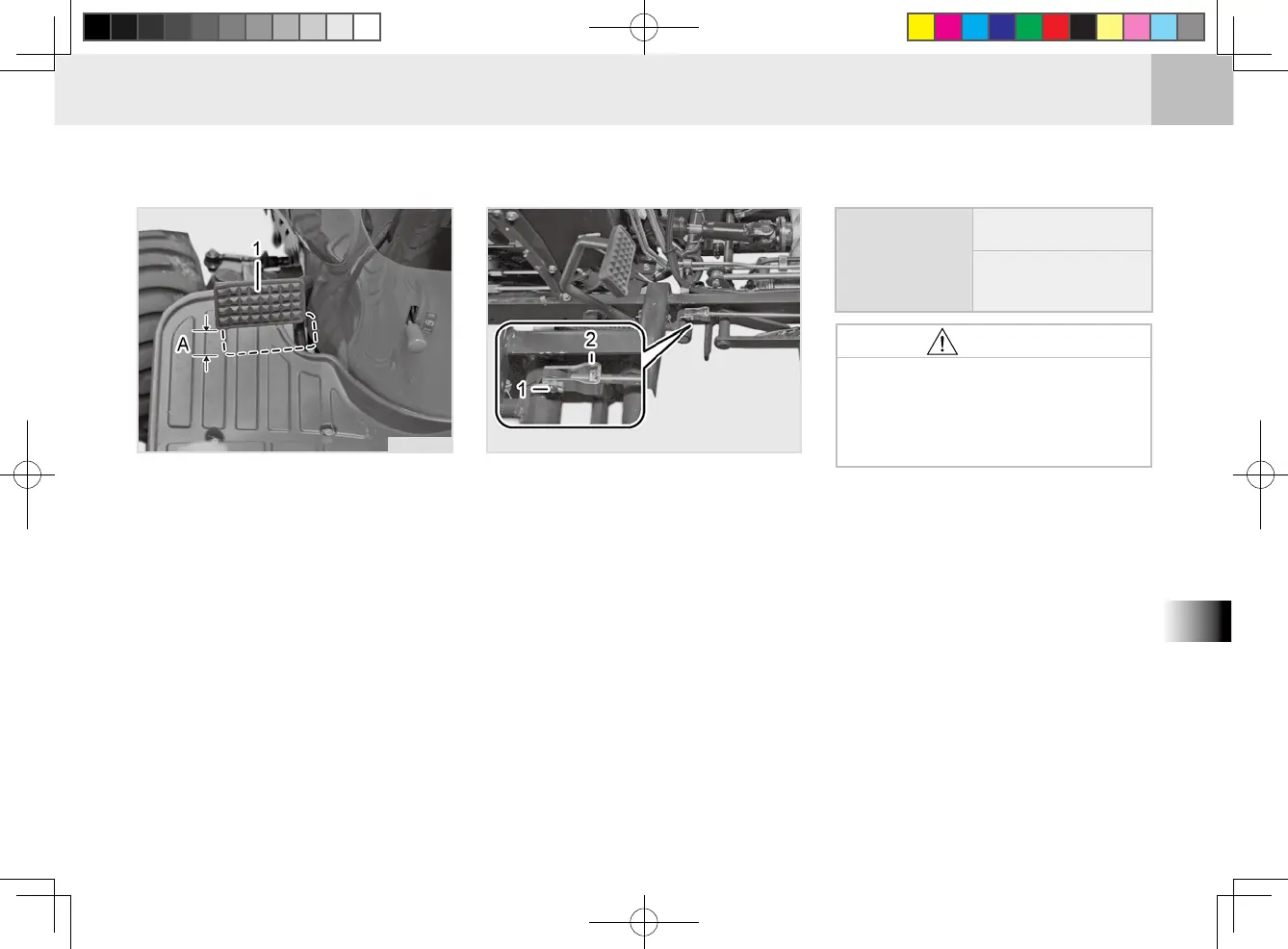

M46O717A
Using the brake pedal for an extend-
ed period of time causes it to play.
This may lead to deterioration of the
braking performance and malfunction
of the braking system.
The brake pedal can be adjusted as
follows:
1. Release the parking brake.
2. Slightly depress the pedals and
measure the free travel at the top
of the pedal stroke.
3. Release the pin and turn the turn
buckle to adjust the brake pedal.
(1) Pin (2) Turn Buckle
M46O718A
(A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
Keep the free travel
in the right and left
brake pedals equal
wheels before checking brake
•
CAUTION
To Next Page
