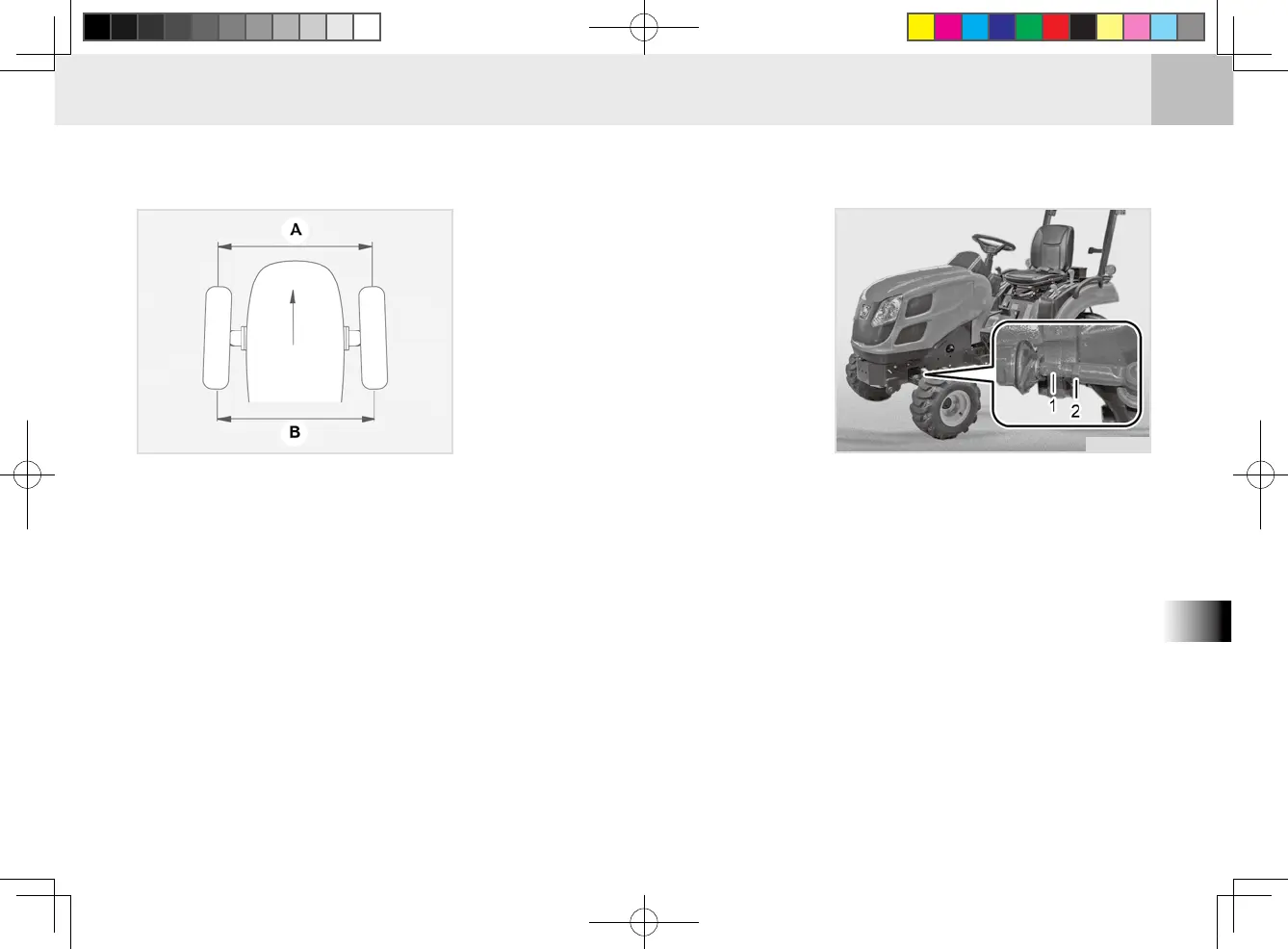

ADJUSTING TOE-IN (Y)
T46OA36A
(A) Wheel - to - wheel distance at front
(B) Wheel - to - wheel distance at rear
1. Park tractor on a at level area.
2. Tur n s te er i n g w he e l so f ro n t
wheels are pointed straight ahead.
3. Lower the implement, lock the
parking brake and stop the engine.
4. Measure distance between tire
beads (center) at front of tire and
hub height.
5. Measure distance between tire
beads at the rear of tire and hub
height.
READJUSTMENT
(1) Tie Rod Lock Nut (2) Tie Rod
M46O730A
1. Loosen the lock nut and turn the
turnbuckle to adjust the rod length
until the proper toe-in measure-
ment is obtained.
2. Check the toe-in value after the tie
rod is adjusted.
3. Adjust it again if necessary.
6. Front distance should be 2~8
mm (0.08~0.31 in.) less than rear
distance. If not, adjust ball joint
length.
