DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
4
-
29
4
-
28
DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
H23O452A

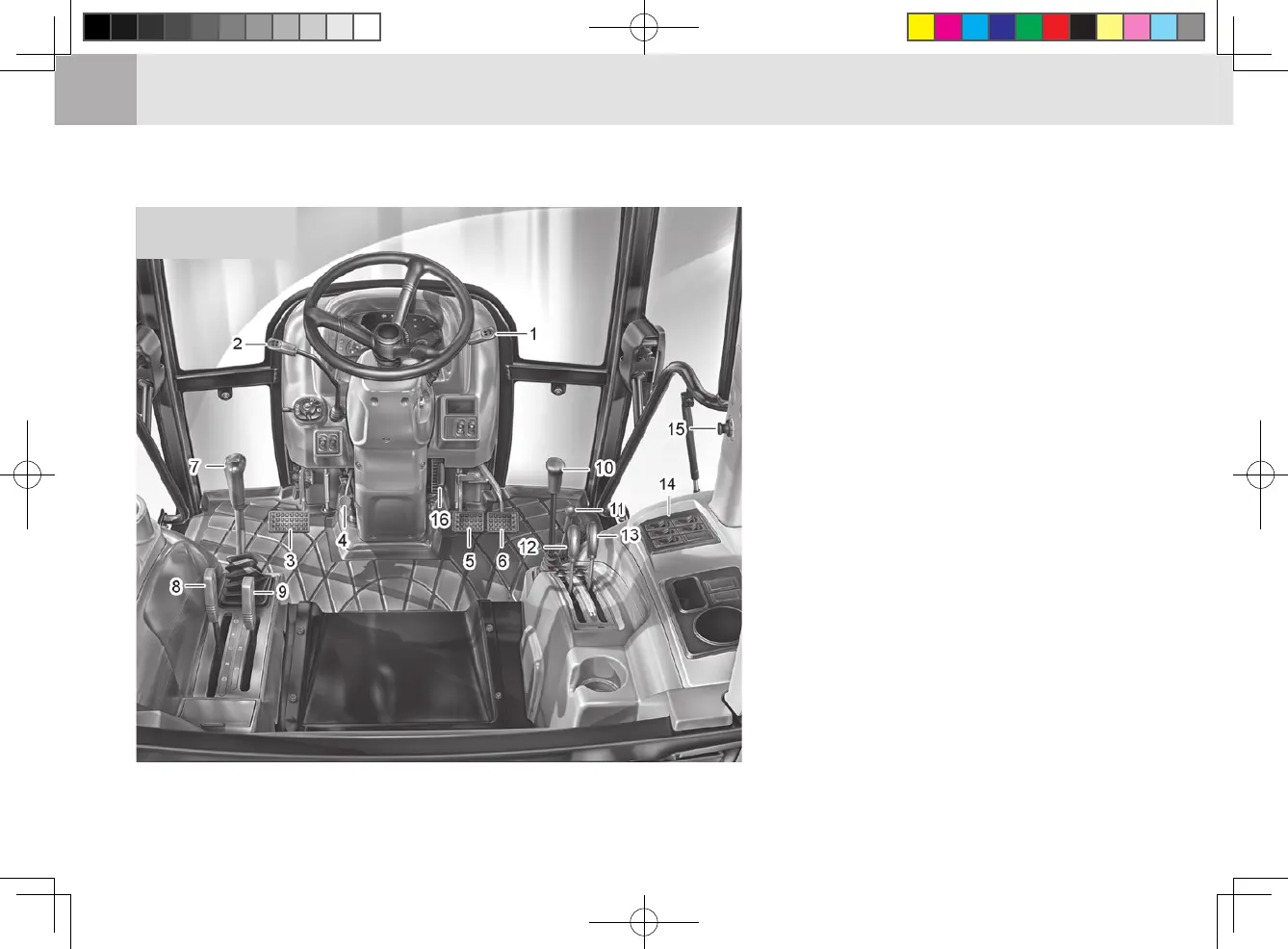

CABIN MODEL
(MANUAL Type)
(1) Hand Throttle Lever
(2) Shuttle Shift Lever
(3) Clutch Pedal
(4) Tilt Steering Pedal (Steering Wheel Angle
Adjustment)
(5) Brake Pedal (L)
(6) Brake Pedal (R)
(7) Main Gear Shift Lever
(8) Range Gear Shift Lever
(9) Creep Gear Speed Lever
(10) Joystick Lever (For Loader Operation)
(11) Double Acting Lever (A, B)
(12) Draft Control Lever
(13) Lift Position Control Lever (Lifting Arm)
(14) Switch Panel
(15) Power Socket
(16) Parking Brake Lock Lever
