DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)
4
4
-
29
4
-
28
DESCRIPTION OF OPERATING SYSTEMEX35(C)/EX40(C)/EX45(C)/EX50(C)

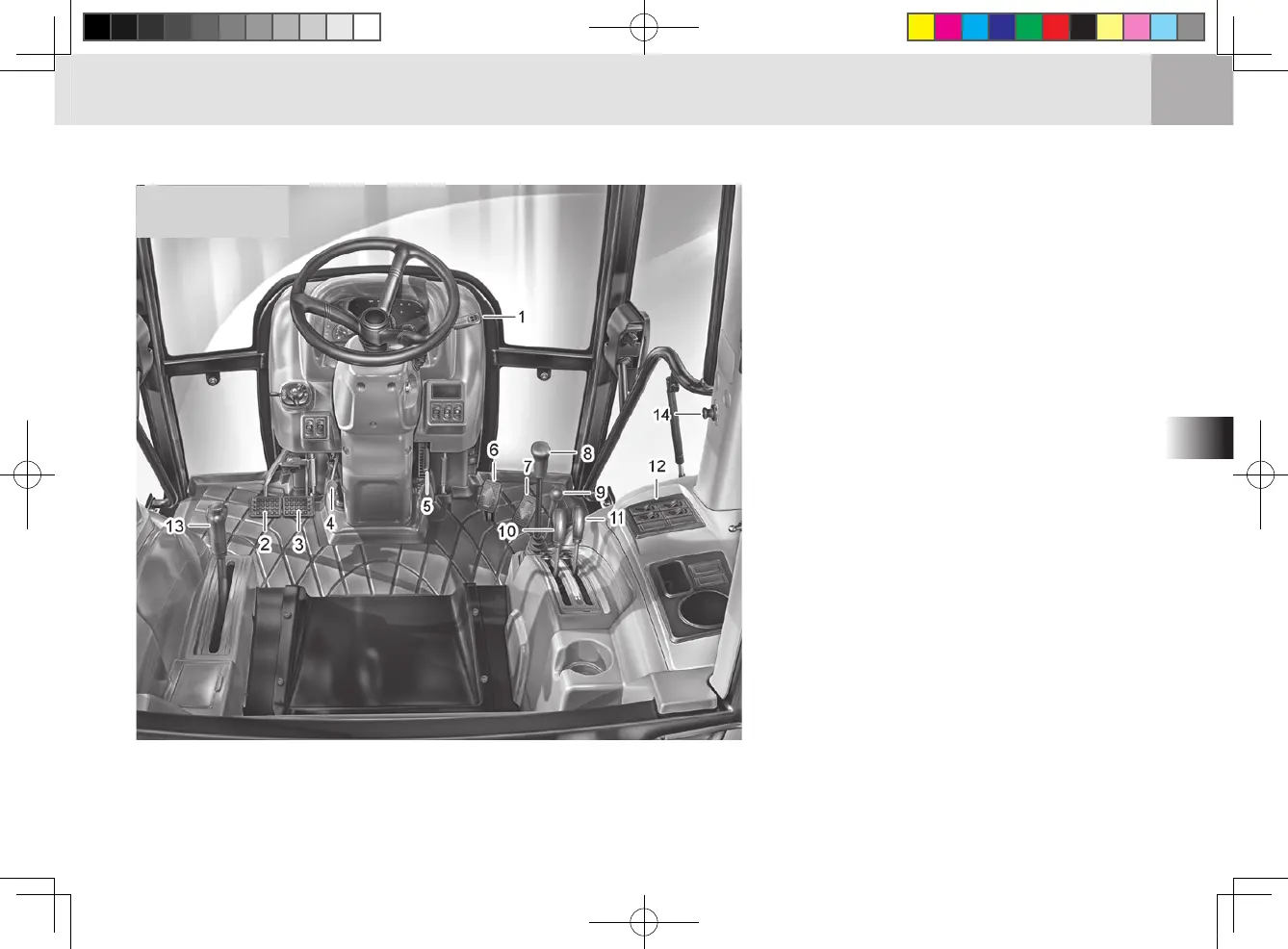

H11O453A
(1) Hand Throttle Lever
(2) Brake Pedal (L)
(3) Brake Pedal (R)
(4) Tilt Steering Pedal (Steering Wheel Angle
Adjustment)
(5) Parking Brake Lock Lever
(6) Forward Driving Pedal
(7) Reverse Driving Pedal
(8) Joystick Lever (For Loader Operation)
(9) Double Acting Lever (A, B)
(10) Draft Control Lever
(11) Lift Position Control Lever
(12) Switch Panel
(13) Range Gear Shift Lever
(14) Power Socket
CABIN MODEL
(HST Type)
