DAELIM S2 125

INSPECTION

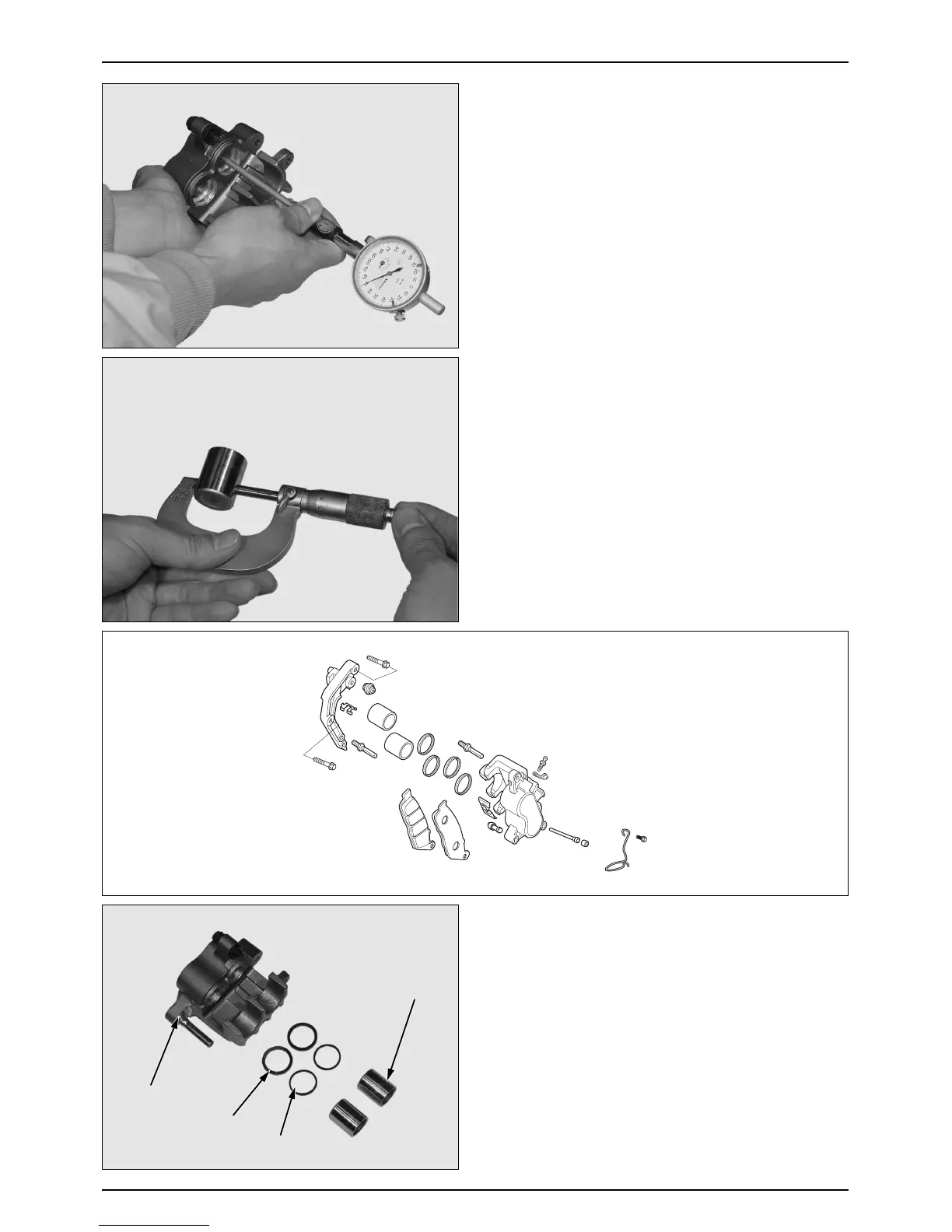

● Check the caliper cylinder bore for scoring, scratches
or other damage.
● Measure the caliper I.D.
SERVICE LIMIT : 25.42mm
● Check the piston for scratches or wear.
● Measure the piston O.D. with a micrometer gauge.
SERVICE LIMIT : 25.27mm
● Clean the piston seal and the dust seal with the brake
fluid and install them in the caliper. Install the piston in
the caliper with the groove side of the piston facing the
pad.
12-13
FRONT WHEEL/FRONT FORK/STEERING/BRAKE
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
PISTON SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
DUST SEAL
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
CALIPER
