6-2
ENGINE REMOVAL/INSTALLATION
ENGINE REMOVAL
● Drain the engine oil.
● Release the seat lock by turning the main switch key to
open the seat.
● Remove the following parts.
-Luggage box (⇨3-2)
-Center cover (⇨3-3)
-Air cleaner (⇨2-5)
-Carburetor (⇨5-3)

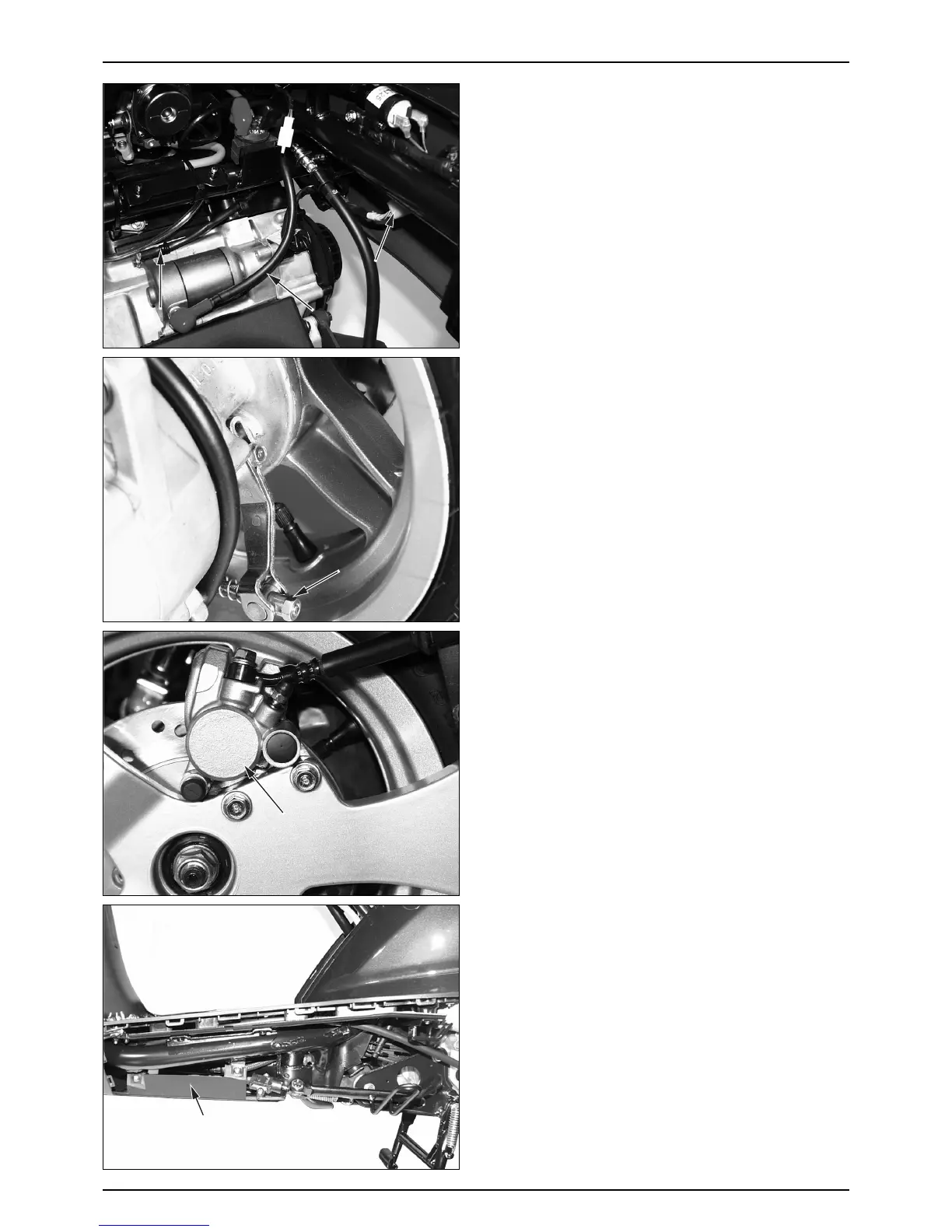

● Disconnect the A.C generator coupler and connector
wiring connected to the A.C generator, disconnect the
starter motor wiring cable.
●Remove the battery earth cable from the RH. shroud
groove.
● Disconnect the high-tension cord from the engine.
● Remove the bleeder tube from the cylinder head cover.
● Loosen the parking brake rod adjuster nut B, remove
the parking brake cable.
● Remove the negative pressure tube from the carburetor
insulator.
● Remove the EX. muffler. (⇨3-8)
● Remove the rear brake caliper. (⇨13-3)
● Remove the RH./LH. floor side cover. (⇨3-4)
● Remove the under cover (⇨3-5)
To Next Page
