INSPECTIONS / ADJUSTMENTS

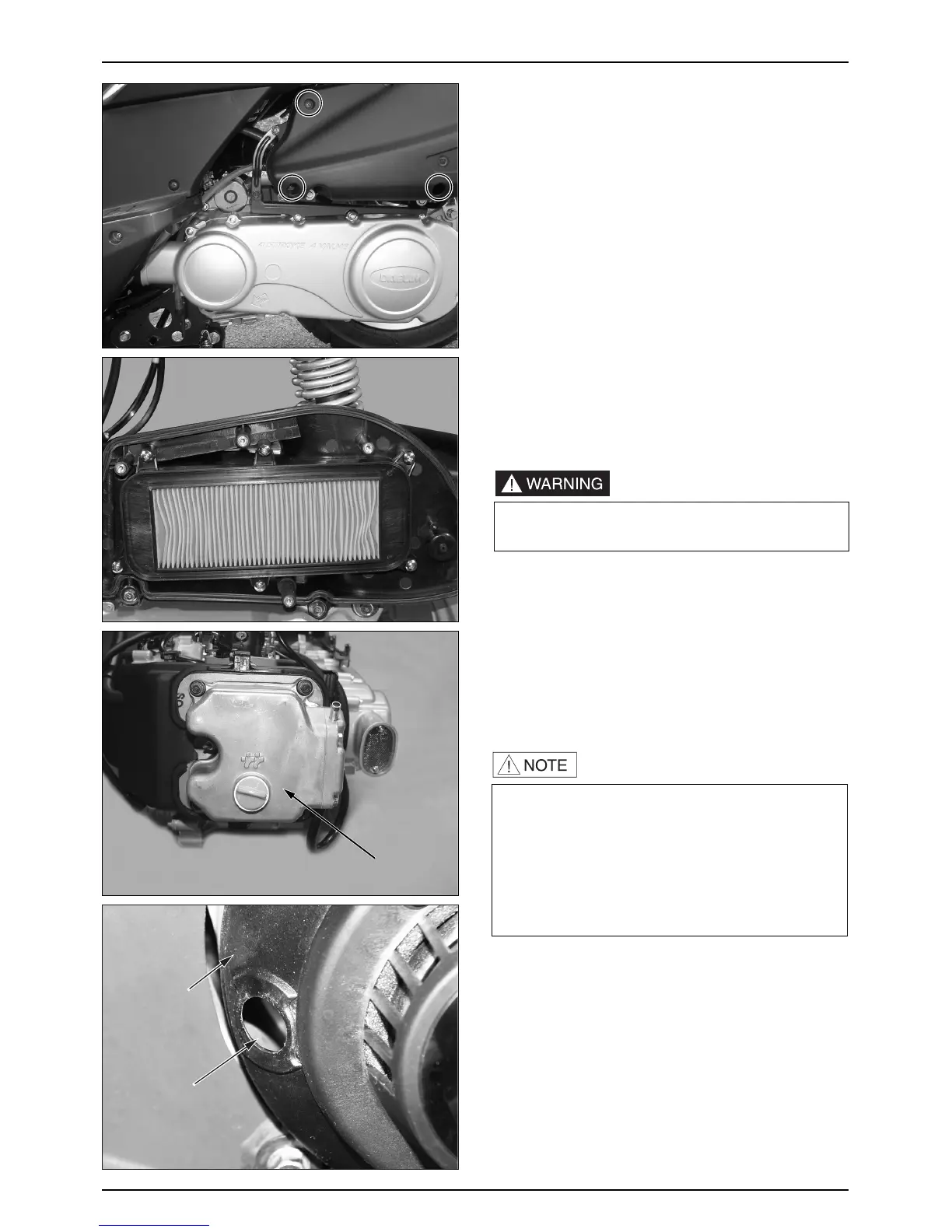

AIR CLEANER
● Loosen the 6 screws securing the air cleaner case cover,
remove it.
● Loosen the 2 screws securing the air cleaner element
holder, remove it.
VALVE CLEARANCE
● Remove the following parts.
-Luggage box. (⇨4-4)
-Center cover. (⇨4-5)
● Loosen the 4 cylinder head bolts.
● Measure valve clearance with a feeler gauge.
VALVE CLEARANCE : Intake : 0.12
±
0.02mm
Exhaust : 0.12
±
0.02mm
● Remove the air cleaner element.
● Wash away any accumulated dust or dirt, by gently
squeezing it in non flammable or high flash point
solvent.
•Using gasoline or low flash point solvents for
cleaning parts may result in a fire or explosion.
TIMING CHECKING
RH. SHROUD
•Inspect and adjust the valve clearance when the
engine is cool. (under 35°C / 95°F)
•Remove the cylinder head cover.
•Turn the flywheel counterclockwise, and align the
“T” mark on the flywheel with the index mark on
the RH. crank case cover.
•The piston at this time must be at the top dead center
of the compression stroke.
