DAELIM S2 125

5-6
FUEL SYSTEM

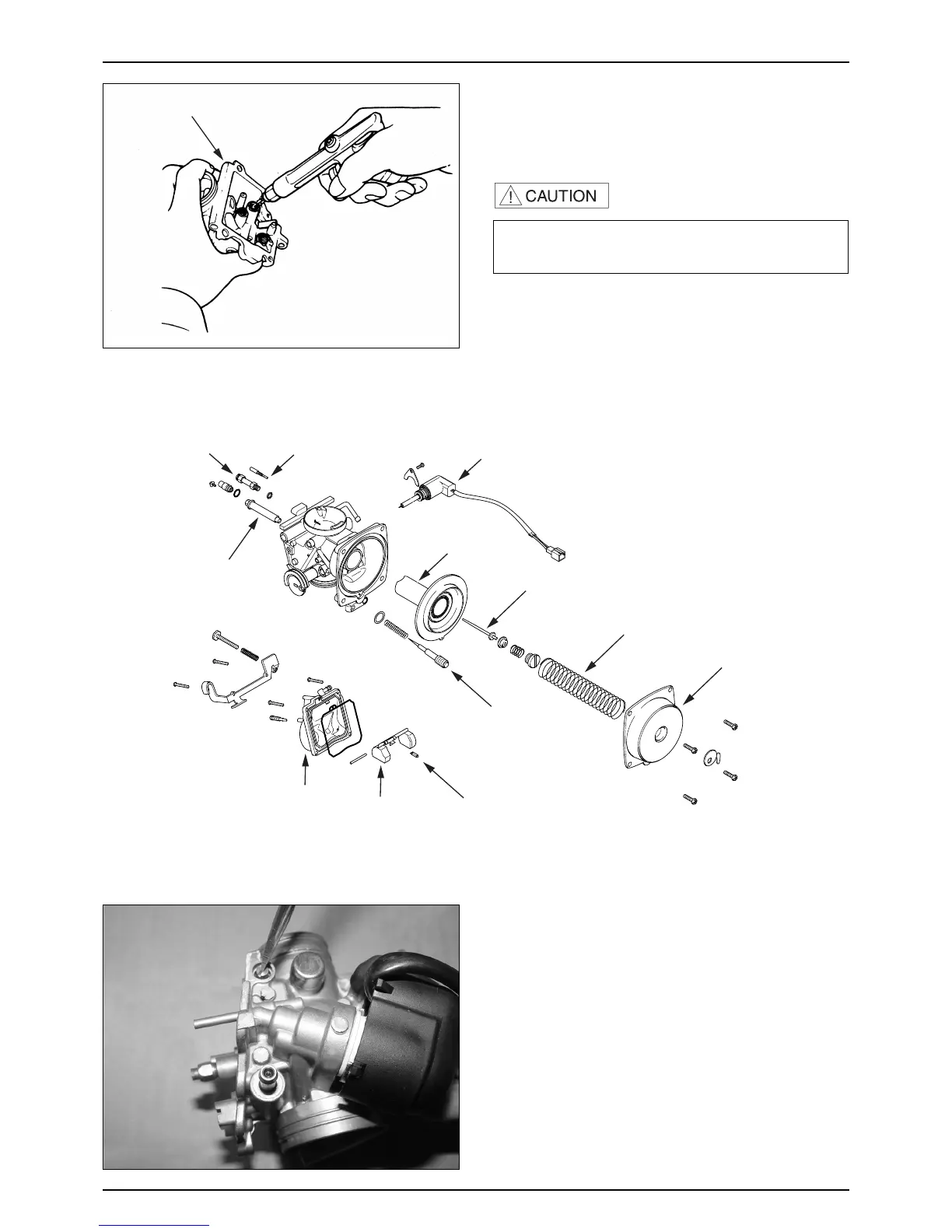

CARBURETOR CLEANING
● After removing all parts, blow open air and fuel
passages in the carburetor body with compressed air.
FLOAT CHAMBER/FLOAT/JET
ASSEMBLY
● Install the needle jet, needle jet holder, main jet and
slow jet.
● Tighten the pilot jet until it seats lightly, then turn it
out as much as the number recorded during removal.
● Install the pilot jet rubber.
CARBURETOR BODY
PLUNGER ASS'Y
DIAPHRAGM COVER
SPRING
JET NEEDLE
DIAPHRAGM
SLOW JET
MAIN JET
NEEDLE JET
FLOAT BODY
FLOAT
FLOAT VALVE
PILOT JET
•Cleaning the air and fuel passages with a piece of
wire will damage the carburetor body or fuel pump.
