DAELIM S2 125 Service Manual

13-7
REAR WHEEL / BRAKE / SUSPENSION / SWING ARM

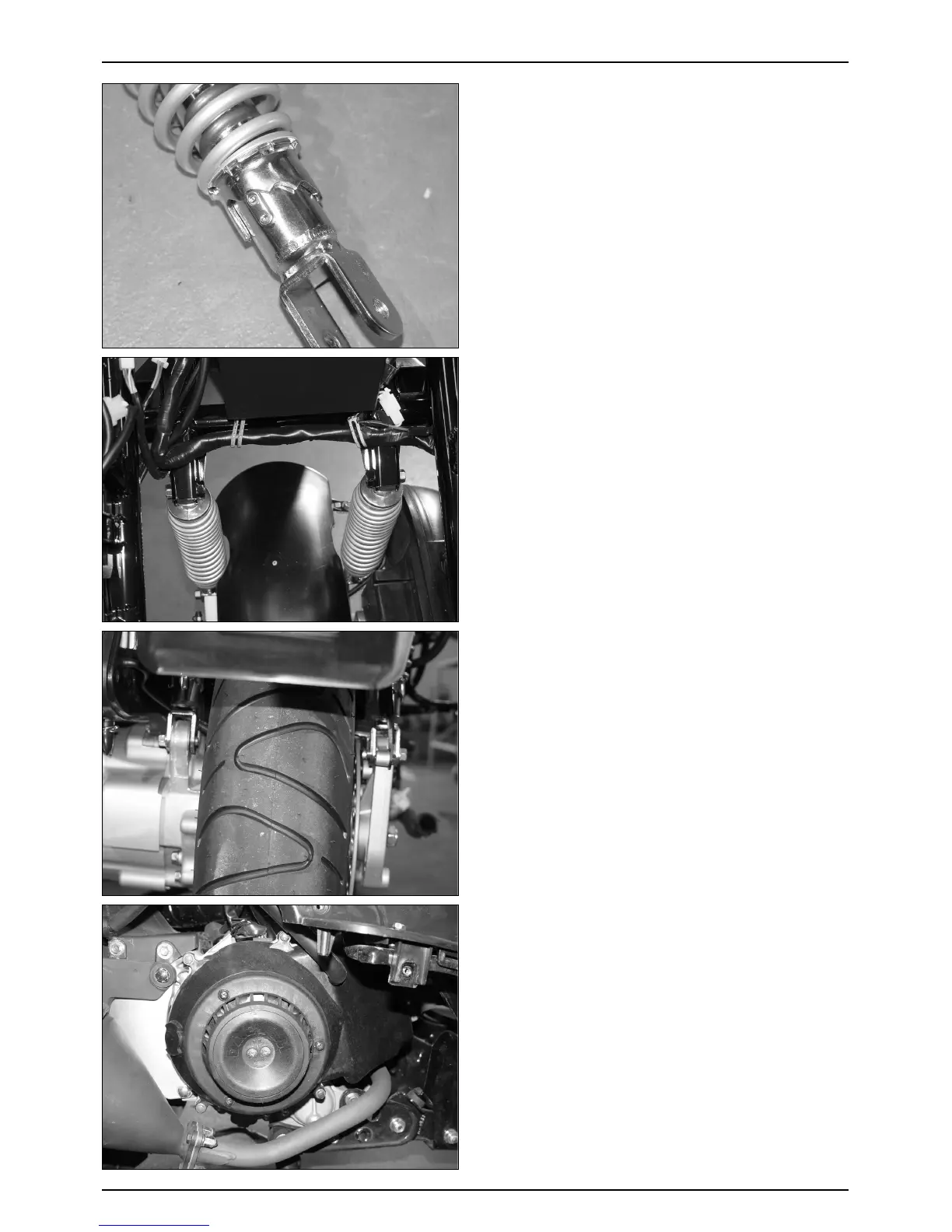

REAR CUSHION ADJUST
● Adjust the cushion spring according to the load
condition.
● The rear cushion can be adjusted as below.
1-2-3-4-5
soft medium hard
REAR CUSHION
REMOVAL
● Remove the luggage box.
● Remove the air cleaner.
● Remove the upper bolt.
● Remove the lower bolt.
● Remove the rear cushion.
INSTALLATION
● Install in the reverse order of removal.
TORQUE VALUE : 3.92kgf
·
m
REAR SWING ARM
REMOVAL
● Remove the EX. muffler. (⇨3-8 )
● Remove the rear brake caliper. (⇨13-3 )
● Loosen the flange bolt securing the RH. crank case
cover.
● Loosen the rear axle U-nut.
● Remove the rear swing arm.

DAELIM S2 125 Specifications

General

Displacement	124.6 cc
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air-cooled
Transmission	Automatic (CVT)
Front Brake	Disc
