DAELIM S2 125 Service Manual

8-6

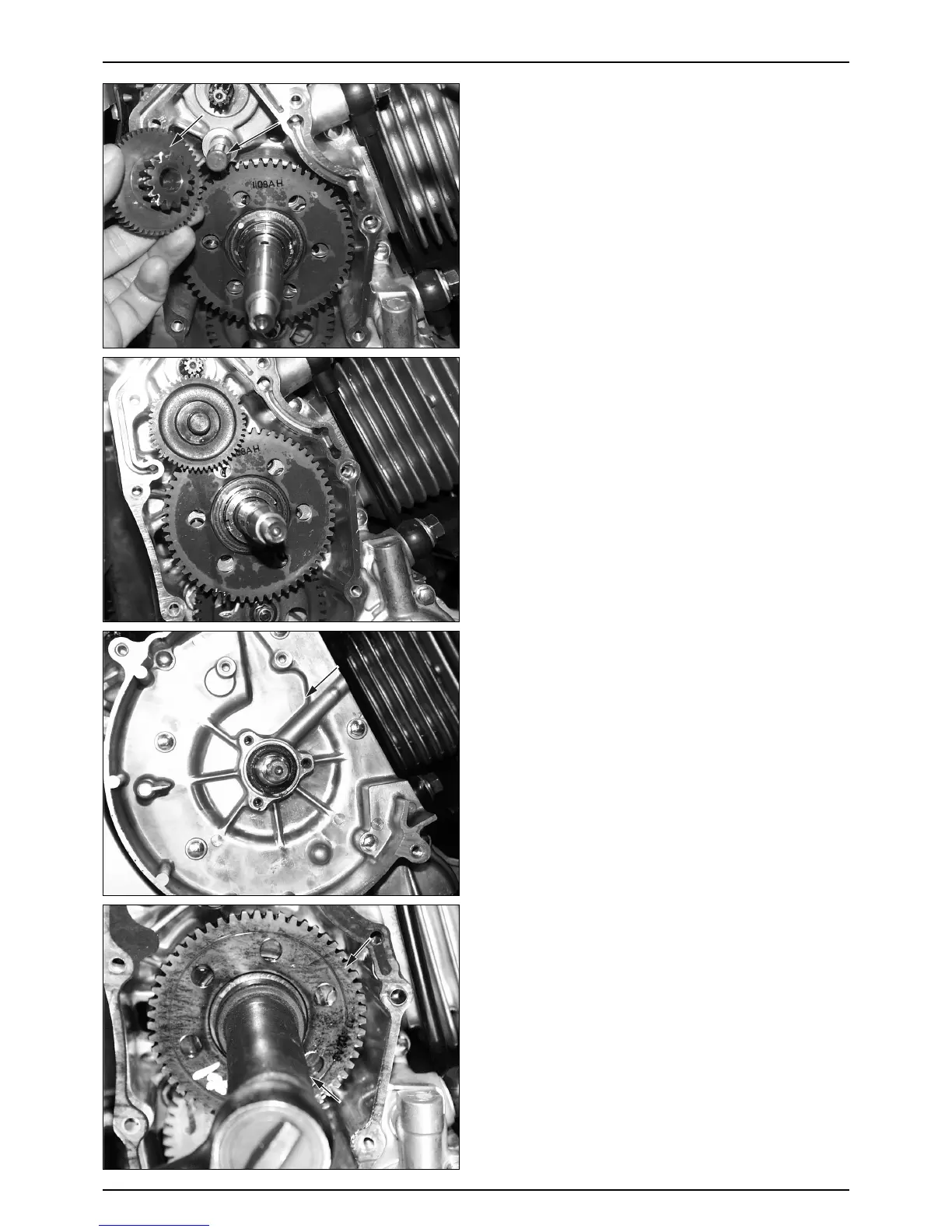

A.C GENERATOR/STARTER CLUTCH
REDUCTION GEAR
SHAFT
RH. CRANKCASE COVER
STARTER CLUTCH
SPECIAL SOCKET
(12.7X28X120)
STARTER REDUCTION GEAR
INSTALLATION
● Install the starter reduction gear and shaft.
STARTER CLUTCH
REMOVAL
● Loosen the rear cushion under bolt.
● Remove the following parts.
-RH. floor side cover (⇨3-4 )
-RH. shroud (⇨8-2 )
-Cooling fan (⇨8-2 )
-A.C Generator (⇨8-2 )
-EX. muffler (⇨3-8 )
-Rear caliper (⇨13-3 )
-Rear swing arm (⇨13-7 )
-RH. crankcase cover (⇨8-4 )
● Remove the LH. crankcase cover and hold the drive
face with the drive face holder.
● Loosen the starter clutch lock nut with a special socket.
TORQUE VALUE : 9.5 kgf
·
m
TOOLS : SPECIAL SOCKET (12.7x28x120)
DRIVE FACE HOLDER
● Remove the gasket residues from the RH. crankcase.
● Install a new gasket and dowel pin.
● Tighten the RH. crankcase cover with setting bolts.
● Install the following parts.
-A.C.Generator (⇨8-2 )
-Cooling fan (⇨8-2 )
-RH. shroud (⇨8-2 )
-Rear swing arm (⇨13-7 )
-Rear caliper (⇨13-3)
-EX. muffler (⇨3-8 )
-RH. floor side cover (⇨4-7 )
-Luggage box (⇨3-2 )
● Tighten the rear cushion under bolt.

DAELIM S2 125 Specifications

General

Displacement	124.6 cc
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air-cooled
Transmission	Automatic (CVT)
Front Brake	Disc
