DAELIM S2 125 - Lubrication Points

4-9
LUBRICATION SYSTEM
4-9
LUBRICATION SYSTEM

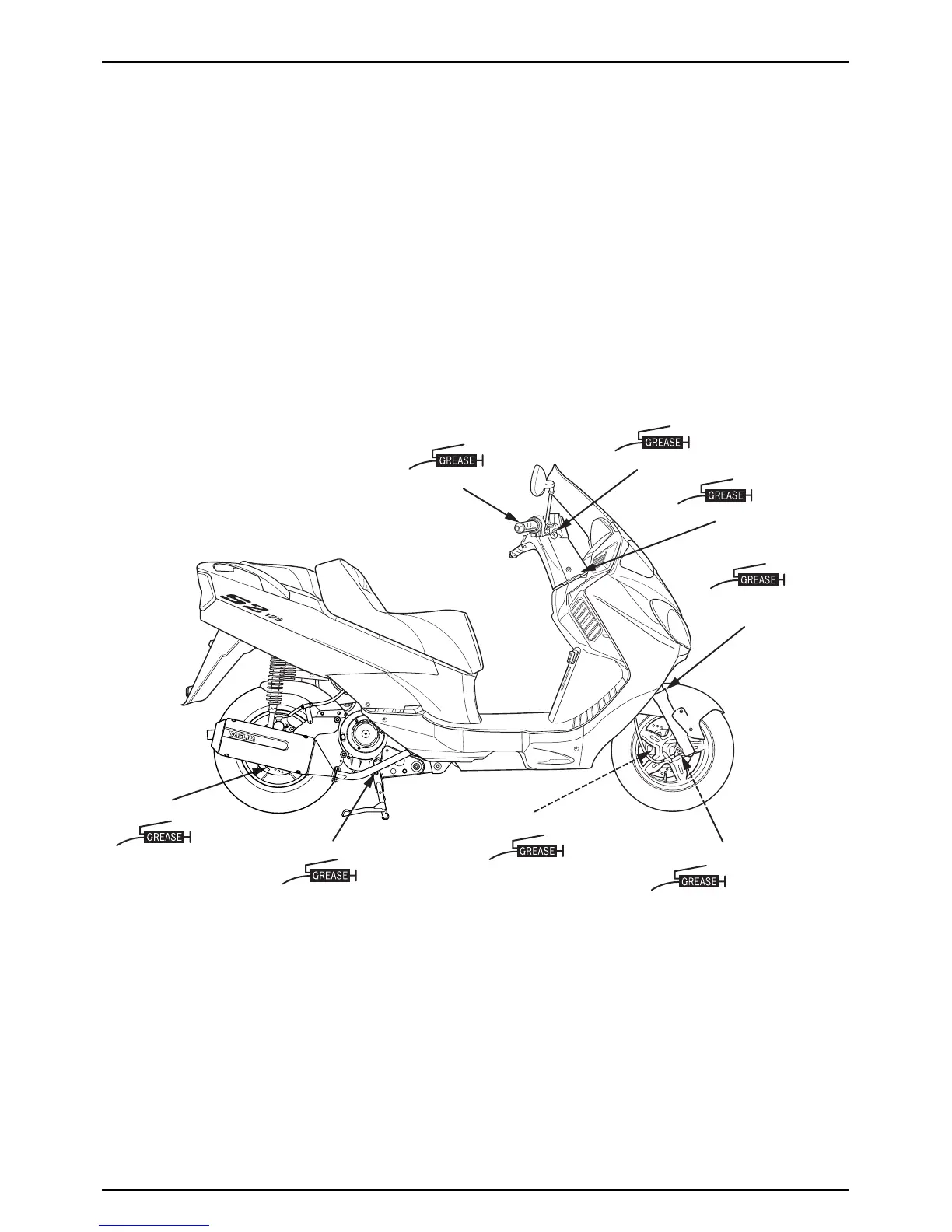

LUBRICATION POINTS
Unless specifically designated, use general grease to
lubricate the lubrication points. For sliding parts not
shown here, add oil or grease.
CONTROL CABLE LUBRICATION
Remove and clean the upper assembly of the throttle
cable, and apply oil. If the cable has expanded, replace it.
FRONTBRAKELEVERPIVOT
THROTTLEGRIP
STEERINGHEADBEARING
FRONTFORK
DUSTSEAL
WHEELBEARING/SPEEDOMETERGEAR
BRAKECALIPERBRACKET
SIDE/MAINSTANDPIVOT
WHEELBEARING
