DAELIM S2 125

4-4
LUBRICATION SYSTEM

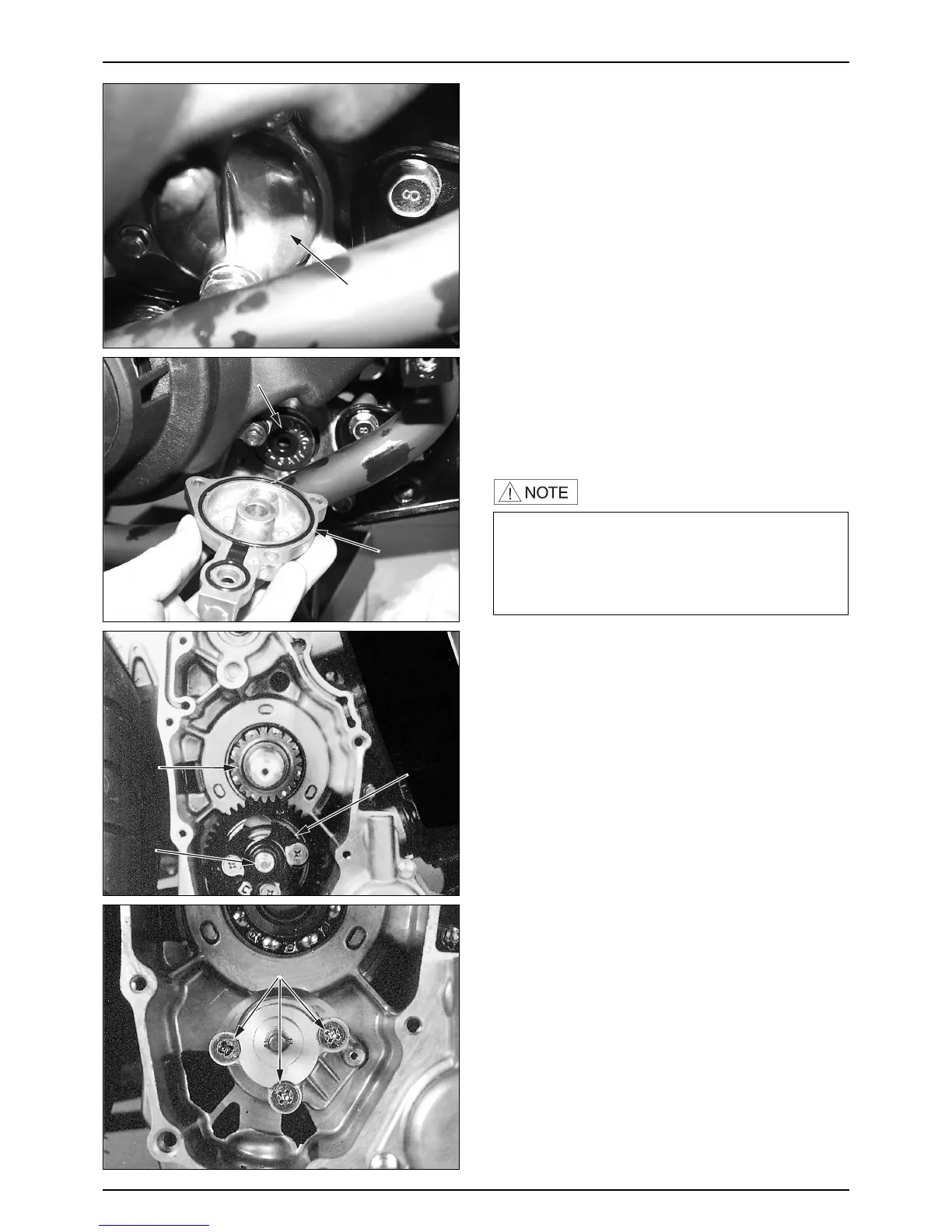

OIL FILTER ELEMENT CHANGE
●Drain engine oil. (⇨4-3)
●Loosen the 3 flange bolts securing the oil filter cover,
remove the oil filter cover.
●Remove the oil filter element and oil filter spring.
●Change the oil filter element with a new one.
●Check if the oil filter seal is in good condition.
●Assemble the filter element spring and filter cover, and
tighten bolts.
TORQUE VALUE : OIL FILTER COVER 1.1kgf
·
m
OIL PUMP
REMOVAL
●Remove the following parts :
-Rear cushion lower bolt (⇨13-7)
-Muffler (⇨3-8)
-Rear swing arm (⇨13-7)
-Rear caliper (⇨13-3)
-Shroud (⇨8-2)
-Cooling fan (⇨8-2)
-A.C. generator (⇨8-2)
-RH. crankcase cover (⇨8-4)
-Starter driven gear (⇨8-7)
-Reduction gear (⇨8-5)
-Starting clutch assembly (⇨8-8)
●Loosen the oil pump driven gear setting nut.
●Remove the oil pump driven gear.
●Remove the oil pump drive gear.
●Loosen the 3 flat screws securing the oil pump.
●Remove the oil pump.
OIL FILTER COVER
ELEMENT
OIL FILTER SEAL
NUT
DRIVEN GEAR
DRIVE
GEAR
FLAT SCREW
•Always use a genuine oil filter element.
•Be sure to replace the oil filter seal when removing oil
filter element.
•Be careful not to lose the oil filter spring when
assembling the oil filter element.
