DAELIM S2 125

SETTING BOLTS
PISTON
PISTON SEAL
DUST SEAL
13-3
REAR WHEEL / BRAKE / SUSPENSION / SWING ARM

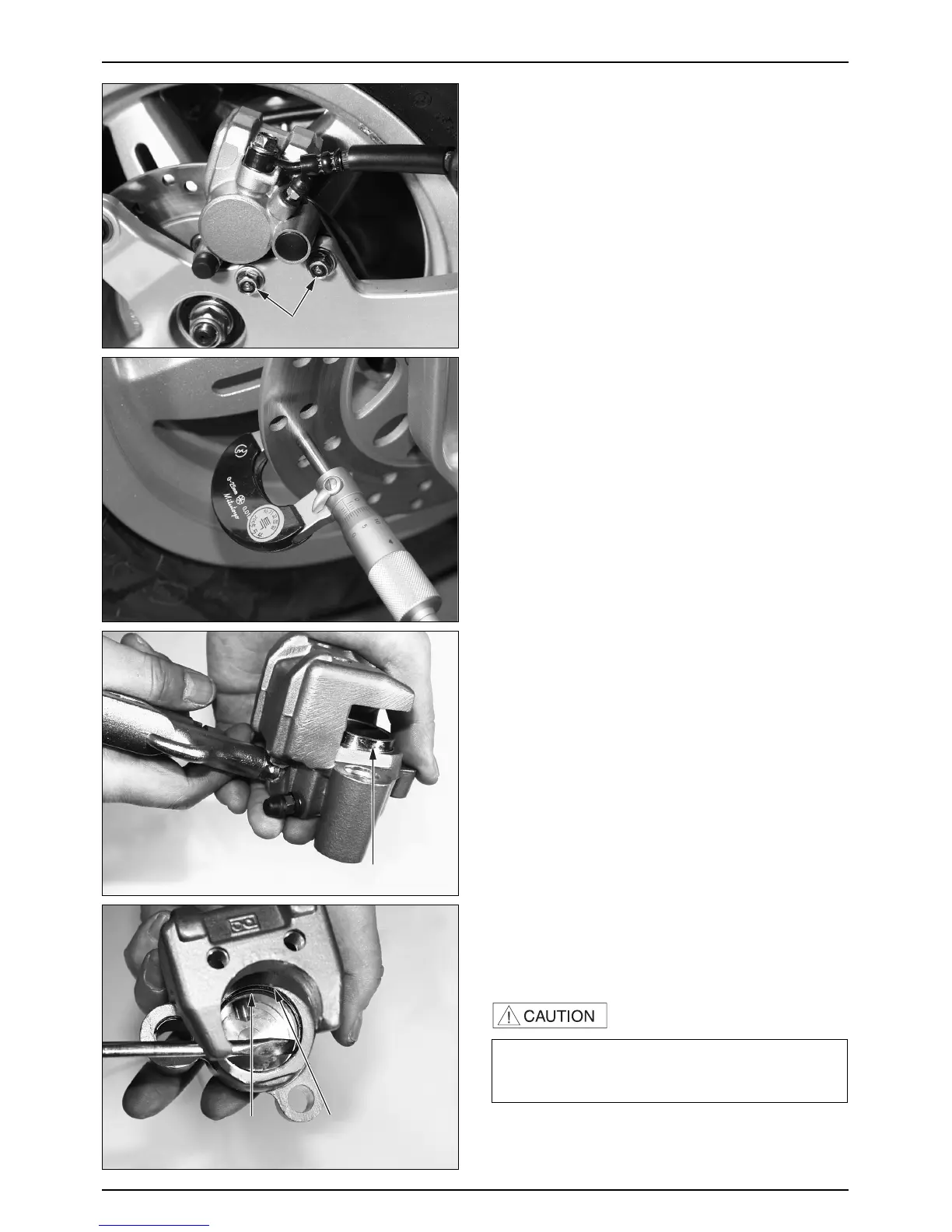

REAR BRAKE
REMOVAL
● Remove the muffler.
● Loosen the rear break tube bolt and remove the break
tube.
● Loosen 2 bolts and remove rear break caliper.
● Wind the caliper facing down with cloth to prevent the
piston or break fluid from leaking.
● Remove the piston from the caliper while blowing the
low-pressure air in the opening of the break hose.
DISASSEMBLY
● Remove the rear break caliper.
● Inspect caliper assembly.
● Remove the pad spring, slide pin, caliper bracket, and
boot from the caliper body.
● Check the boot for wearand damage and replace if
necessany.
INSPECTION
● Inspect break pad and disk.
● Measure the break disk thickness.
SERVICE LIMIT : 3mm
·Never use the high-pressure air or bring the air gun
too close.
·Never touch the inside of the caliper
