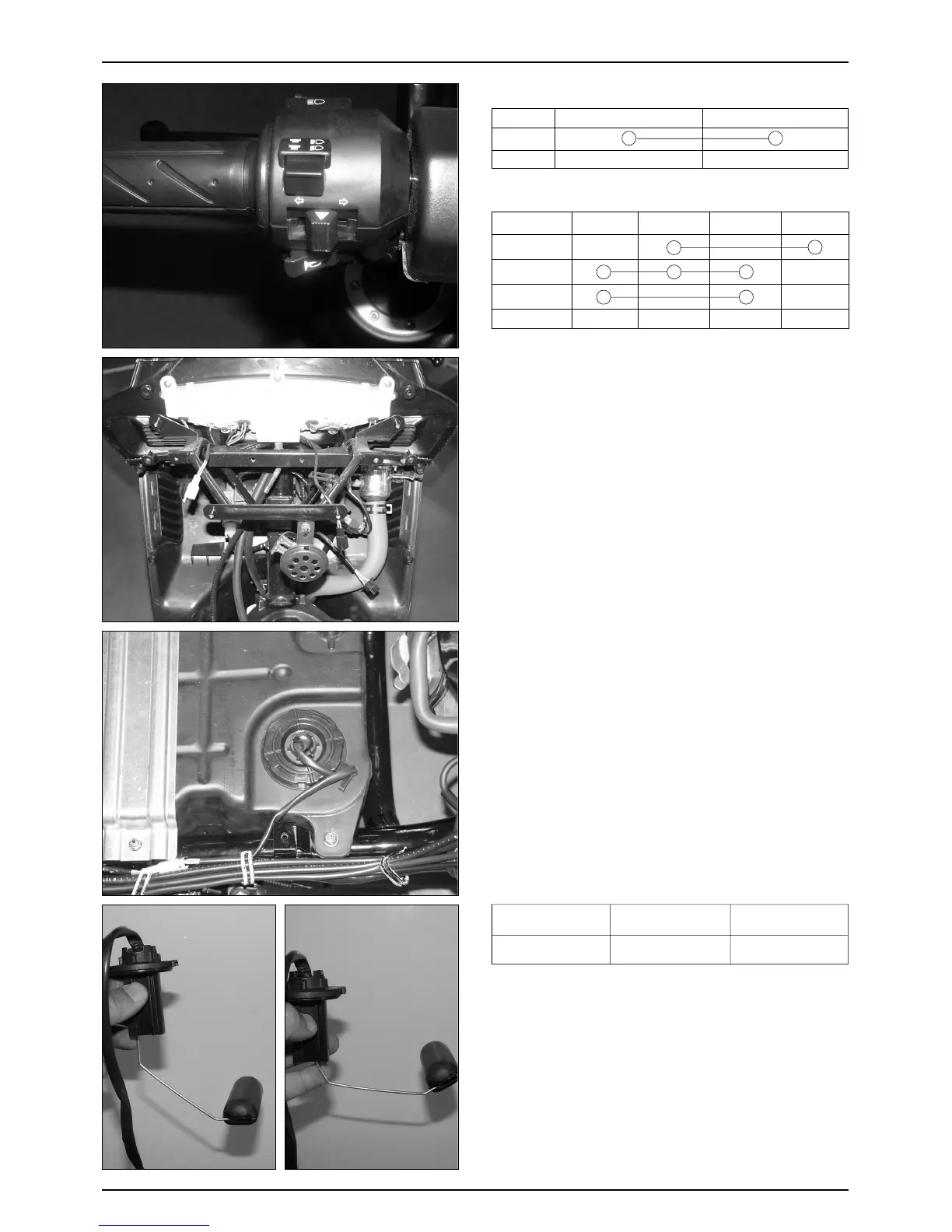

DAELIM S2 125

17-3
LIGHTS/SWITCH/HORN
HORN
● Remove the horn from the wire connector.
● Connect the horn terminal with 12V battery.
● Normal if it sounds.
FUEL UNIT
● Remove the foor panel.
● Be cover full not to be damaged for the wire.
● Check the base packing for damage.
● Measure the resistance between the fuel unit upper and
lower.
BAT2 HI
BLACK BLUE
HI
COLOR
COLOR UPPER LOWER
Y/W~L/W
1.8~1.2
Ω 70~130 Ω
DIMMER SWITCH
PASSING SWITCH
HI
(N)
LO
COLOR
BAT4 HI LO BAT2
BROWN/WHITE BLUE WHITE BLACK
