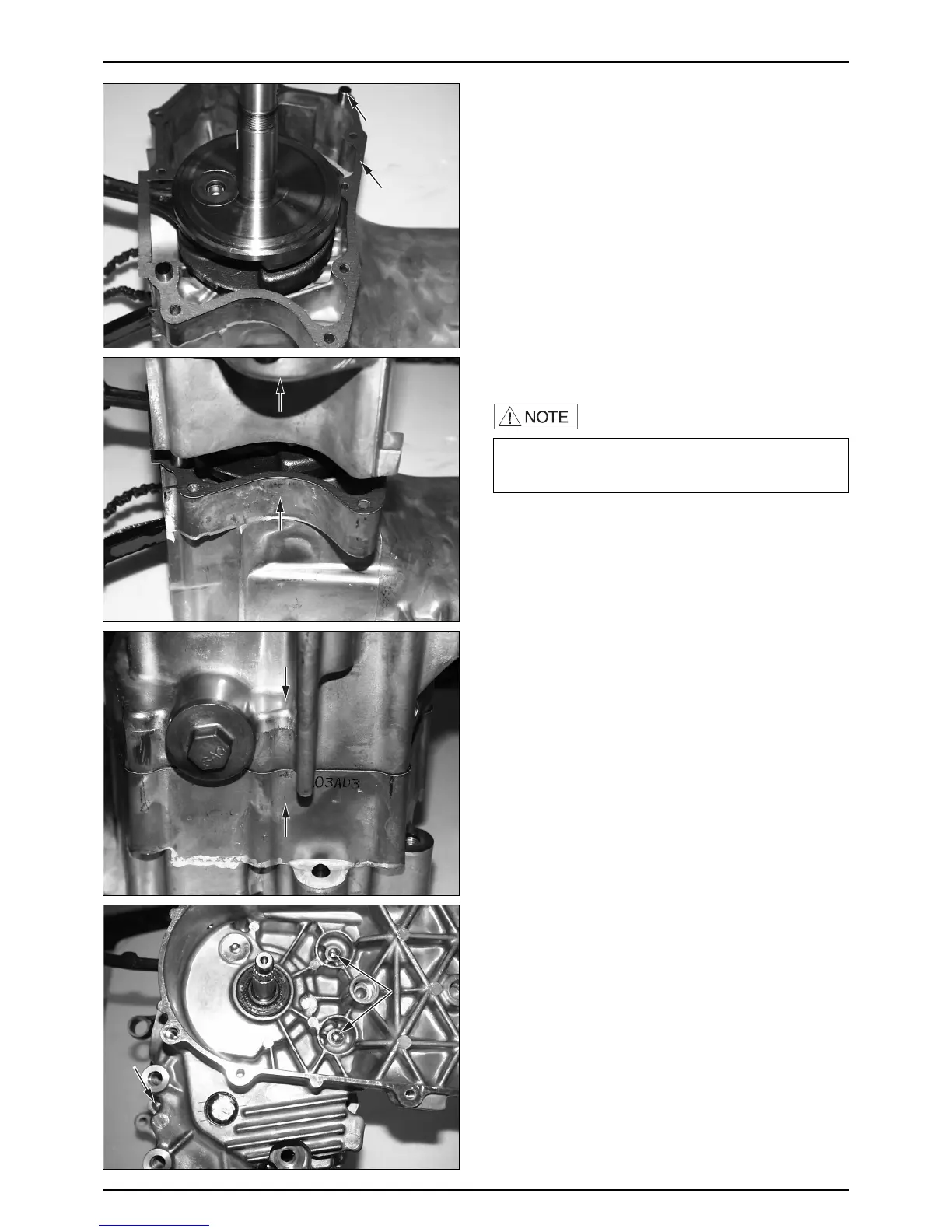

11-10
TRANSMISSION/CRANKSHAFT/CRANKCASE
● Install the RH. crankcase to the LH. crankcase.
● Install the RH./LH. radiator hose.
● Install the bleeder tube to the LH. crankcase.
● Install the removed parts.
● Install the engine on the frame.(⇨6-2 )
CRANKCASE INSTALLATION
● Install the dowel pins and a new gasket.
● Install the cam chain to the LH. crankcase.
·Make sure that the gasket is completely attached
without any clearance.
LH. CRANKCASE
DOWEL PIN
LH. CRANKCASE
RH. CRANKCASE
LH. CRANKCASE
RH. CRANKCASE
SETTING
BOLTS
SETTING
BOLTS
