TRANSMISSION BEARING
REPLACEMENT
LH. crankcase

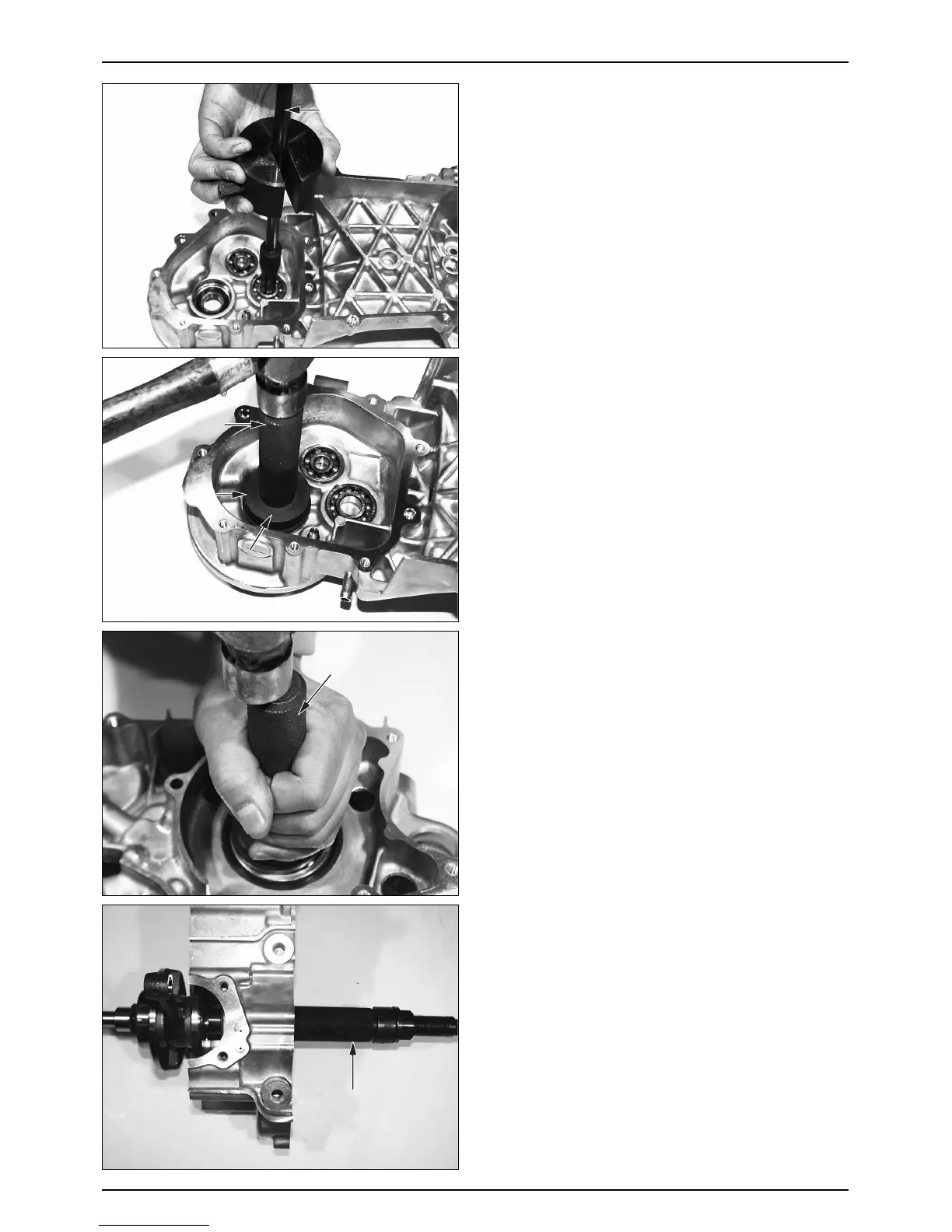

● Use special tools to remove the drive shaft bearing.
TOOLS : BEARING REMOVER SET
REMOVER SHAFT
REMOVER HEAD
● Remove the final shaft bearing and oil seal.
● Remove the countergear bearing.
● Apply clean engine oil to a new bearing, and assemble
it to the crankcase.
TOOLS : DRIVER HANDLE A
DRIVER PILOT
OUTER DRIVER
● Install a new final shaft oil seal.
● Use special tools to assemble the crankshaft bearing to
the RH. crankcase.
TOOLS : DRIVER HANDLE A
OUTER DRIVER
DRIVER PILOT
CRANKSHAFT INSTALLATION
● Apply clean engine oil to the new RH. crankshaft
bearing, and press in the bearing into the RH. crankcase.
TOOLS : DRIVER HANDLE A
OUTER DRIVER
DRIVER PILOT
