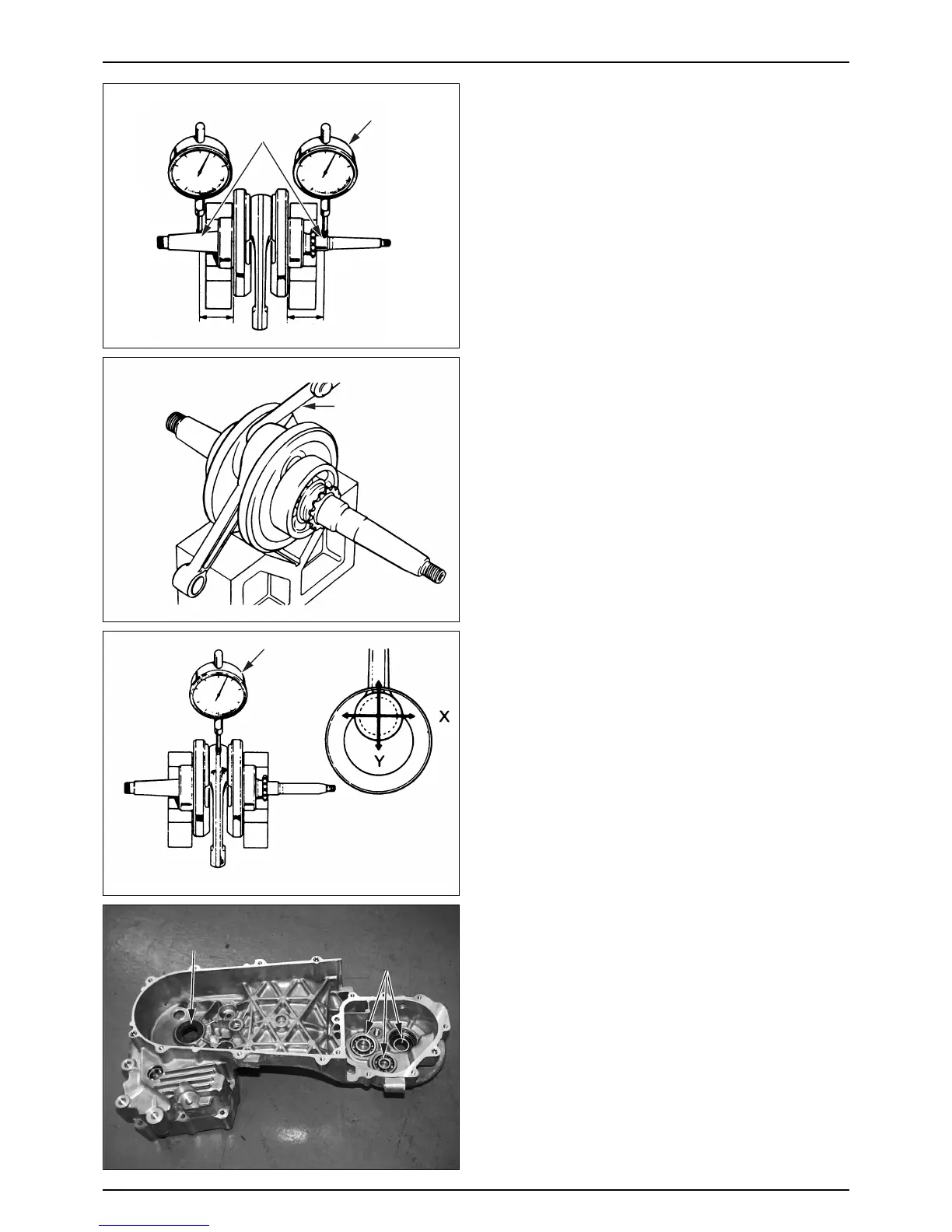

CRANKSHAFT INSPECTION
● Place the crankshaft on a stand or V-block, and measure
the crankshaft runout using dial gauge.
SERVICE LIMIT : RIGHT : 0.1 mm
LEFT : 0.1 mm
TRANSMISSION BEARING
● Remove the transmission and crankshaft.
INSPECTION
● Check that the bearing outer race fits the case tightly
without play.
● Turn the inner race and check that the bearing turns
smoothly and quietly.
● Replace the bearing if necessary.
● Measure the connecting rod radial clearance in both X
and Y directions.
● Replace the crankshaft if the service limit is exceeded.
SERVICE LIMIT : 0.05 mm
● Measure the side clearance by inserting the feeler
gauge between the crankshaft and connecting rod big
end as shown.
TOOL : FEELER GAUGE
