DAELIM S2 125

6-3

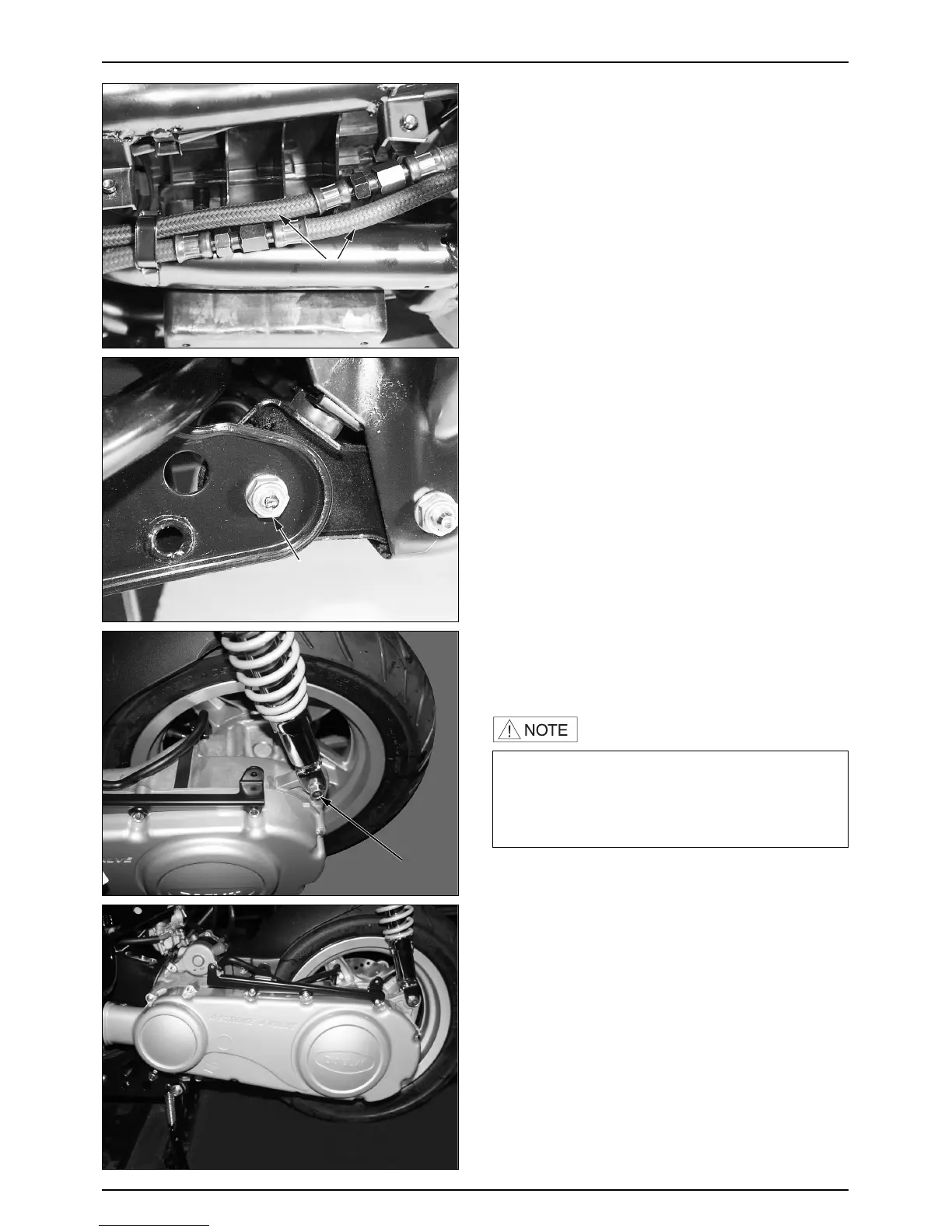

ENGINE REMOVAL/INSTALLATION
● Remove the RH./LH. radiator hose, remove the
RH./LH. radiator hose from the frame setting clamp.
● Loosen the U-nut securing the engine hanger.
● Loosen the rear cushion lower bolt.
● Remove the engine. (with the rear swing arm and rear
wheel attached)
● Remove the rear swing arm. (⇨13-7)
● Remove the rear wheel. (⇨13-5)
● Remove the rear wheel mud guard. (⇨3-8)
ENGINE INSTALLATION
● Install in the reverse order of removal.
TORQUE VALUE
ENGINE HANGER BOLT (FRONT) : 4.5
㎏
f
·
m
(REAR) : 4.5
㎏
f
·
m
● Check the following after the engine is installed.
-Engine oil
-Electric systems.
-Adjust of the parking brake free play.
-Inspection of the throttle cable operation.
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
LOWER BOLT
RADIATOR HOSE
U-NUT
•Take precautions not to damage wiring and cable.
•Take precautions not to damage the threaded part of
bolts.
•Arrange the cable, tubes and wiring in the right
positions.
