DAELIM S2 125

8-7

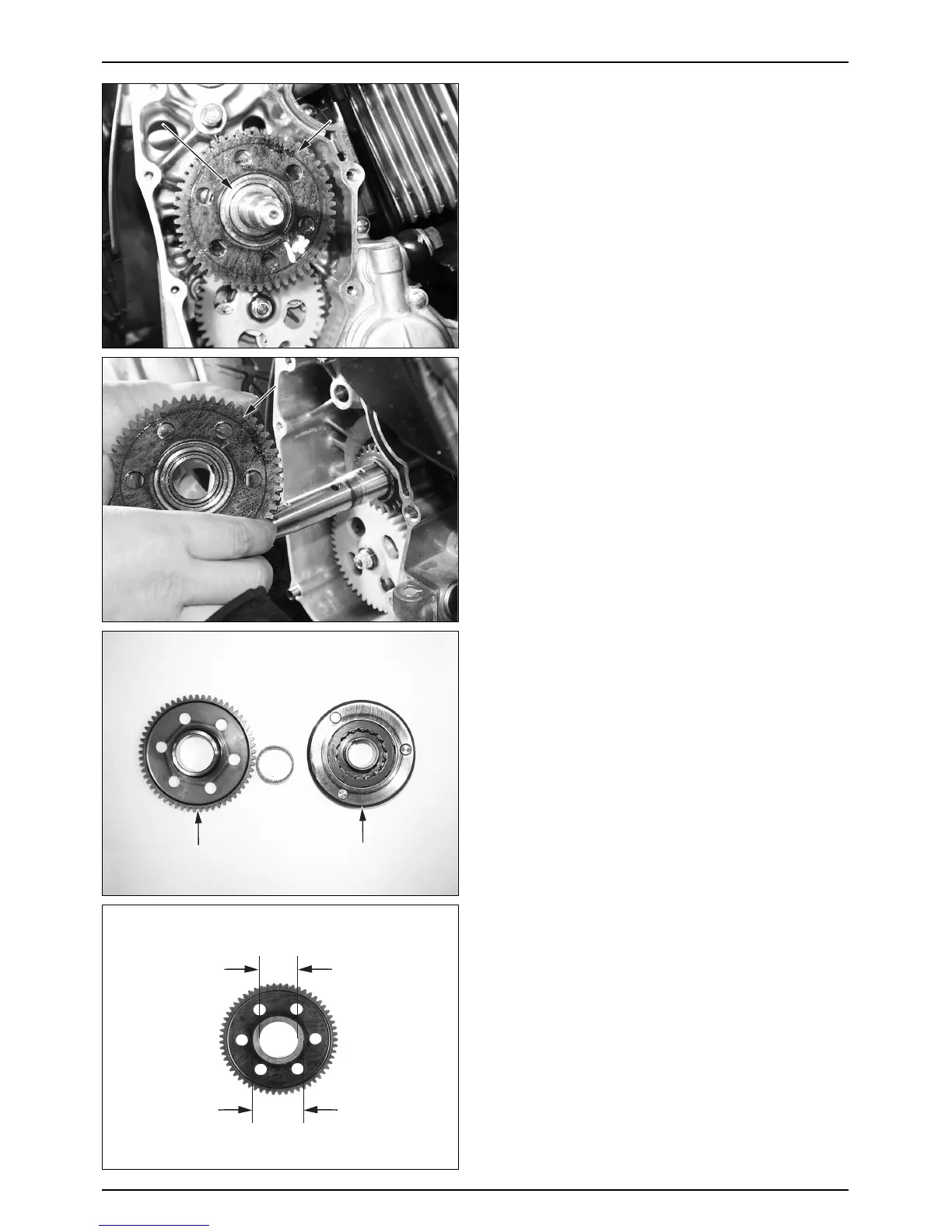

A.C GENERATOR/STARTER CLUTCH
STARTER CLUTCH
WASHER
STARTER CLUTCH
STARTER
DRIVEN GEAR
STARTER ONEWAY
CLUTCH SET
A
B
● Remove the washer.
● Remove the starter driven gear and starter clutch.
● Check the starter driven gear for wear or damage.
● Measure the inner diameter of the starter driven gear.
SERVICE LIMIT : A : 32.10 mm
B : 39.53 mm
STARTER CLUTCH INSPECTION
● Remove the starter driven gear, needle bearing and
starter oneway clutch set from the starter clutch
assembly.
● Check the starter driven gear and starter clutch for
proper operation.
● Remove the starter clutch.
