DAELIM S2 125

8-8
A.C GENERATOR/STARTER CLUTCH
STARTER ONEWAY CLUTCH SET
LOCK NUT
SPECIAL SOCKET
RH. CRANKCASE
COVER

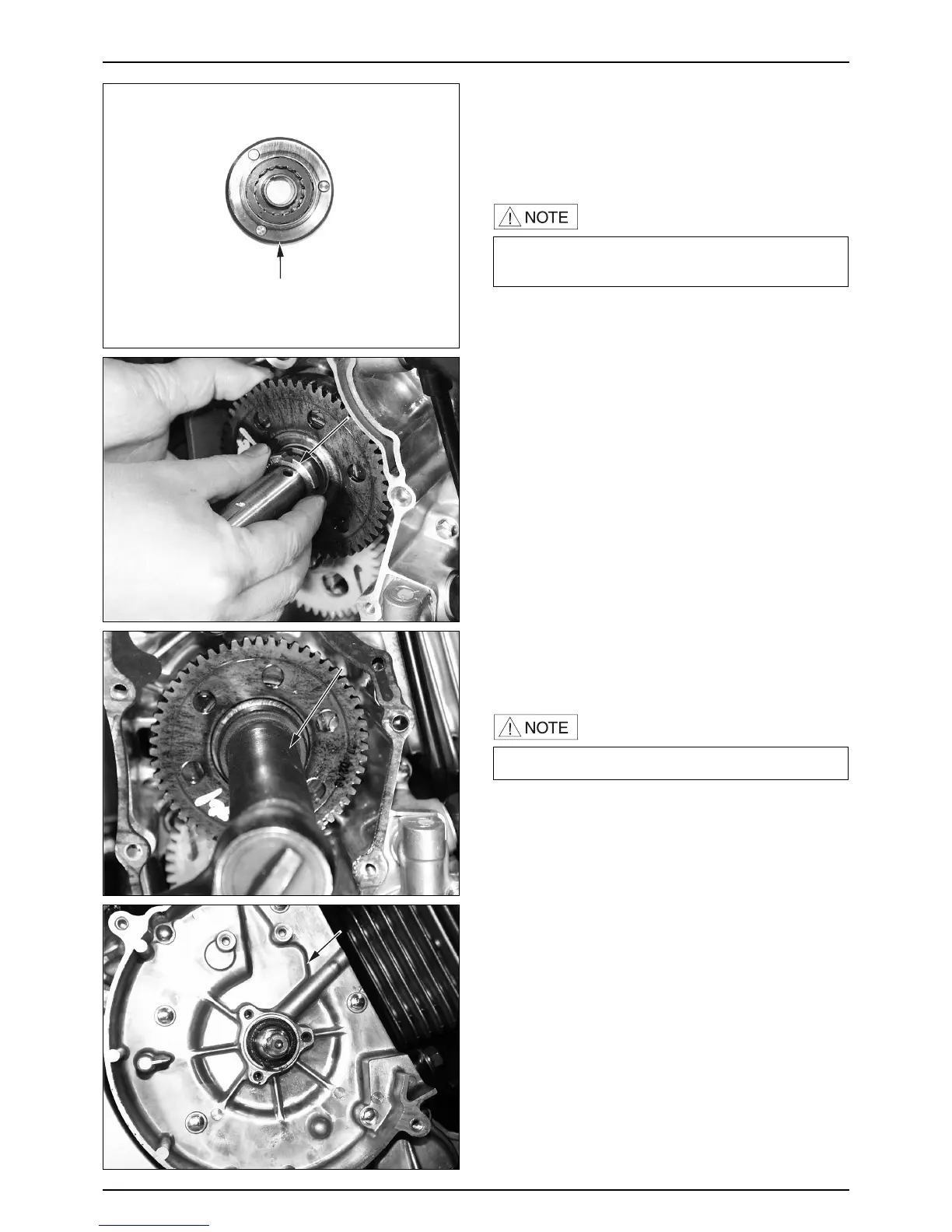

STARTER CLUTCH INSTALLATION
● Install the starter oneway clutch set, starter driven gear
and needle bearing to the starter clutch assembly.
● Install the starter clutch to the RH. crankshaft.
TORQUE VALUE : 9.5 kgf
·
m
TOOLS : SPECIAL SOCKET (12.7x28x120)
DRIVE FACE HOLDER
● Install the following parts.
-RH. crankcase cover (⇨8-2 )
-A.C Generator (⇨8-2 )
-Cooling fan (⇨8-2 )
-RH. shroud (⇨8-2 )
-Rear swing arm (⇨13-7 )
-Rear caliper (⇨13-3 )
-EX. muffler (⇨3-8 )
-RH. floor side cover (⇨3-4 )
-LH. crankcase cover (⇨7-2 )
● Tighten the rear cushion upper bolt.
● Hold the drive face with the drive face holder.
● Tighten the starter clutch lock nut with a special
socket.
● Install the thrust washer.
● Temporarily install the starter clutch lock nut.
·When installing the starter clutch, match it with the
groove accurately
·Tighten the lock nut with specified torque.
