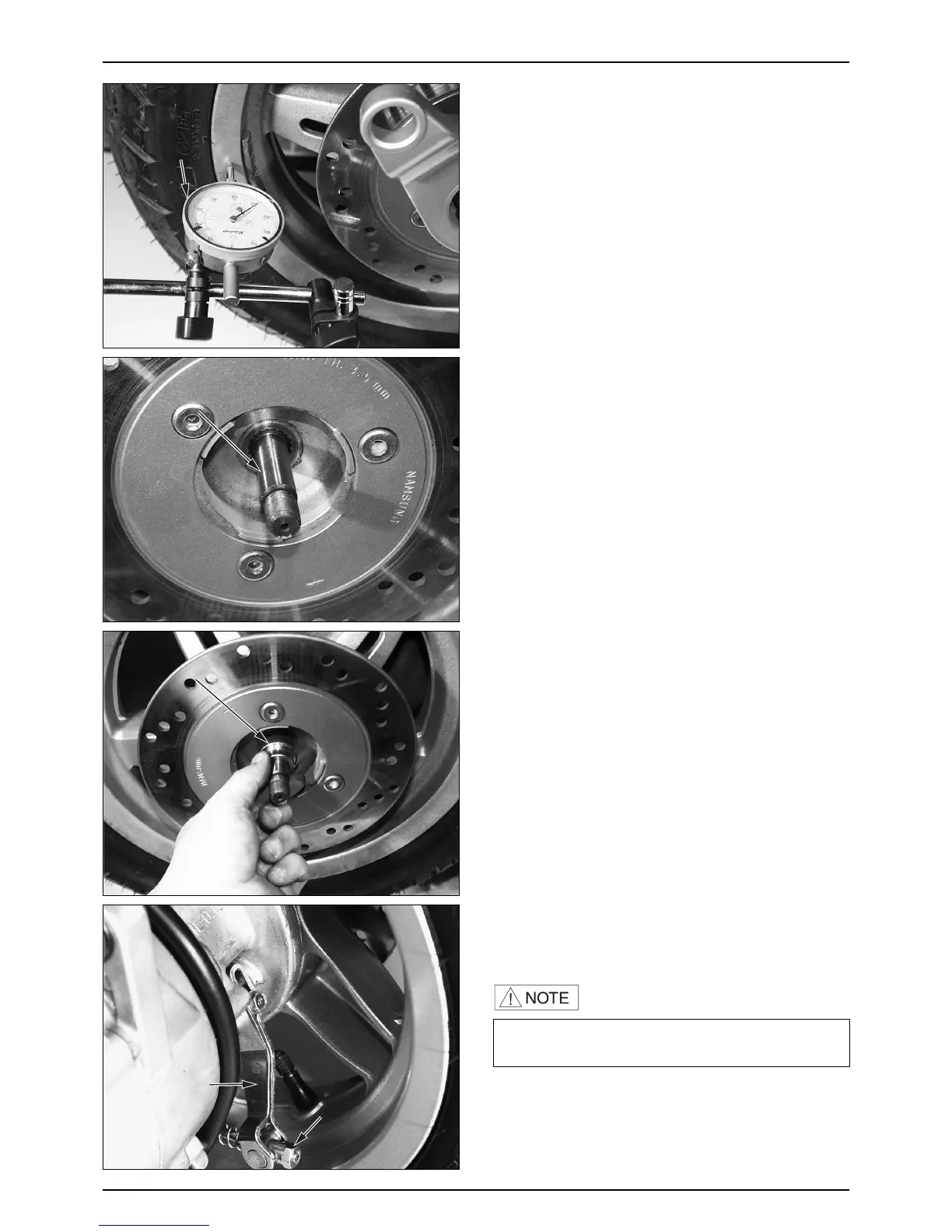

DAELIM S2 125

REAR WHEEL INSPECTION
● Check the rim for wobbles by rotating the wheel.
SERVICE LIMIT : Radical 2.0mm
Axial 2.0mm
TOOL : DIAL GAUGE
● Insert the brake arm joint B into the rear parking brake
arm, and connect the brake arm joint B to the parking
brake cable and tighten the adjust nut B.
● Install the rear wheel inside collar.
● Install the rear swing arm. (⇨13-8 )
● Tighten the rear axle U-nut to the specified torque.
TORQUE VALUE : 6.0~8.0 kgf
·
m
● Install the rear brake caliper assembly to the rear swing
arm.
● Install the EX. muffler. (⇨3-8 )
● Install the rear wheel mudguard. (⇨3-8 )
REAR WHEEL INSTALLATION
● Install the rear brake disk.
● Insert the rear wheel over the final shaft.
13-6
REAR WHEEL / BRAKE / SUSPENSION / SWING ARM
DIAL GAUGE
FINAL SHAFT
INSIDE COLLAR
ADJUST NUT B
REAR PARKING
BRAKE ARM
·After installing the parking brake, be sure to adjust
the parking brake free play.
