DAELIM S2 125 Service Manual

REAR WHEEL
REMOVAL

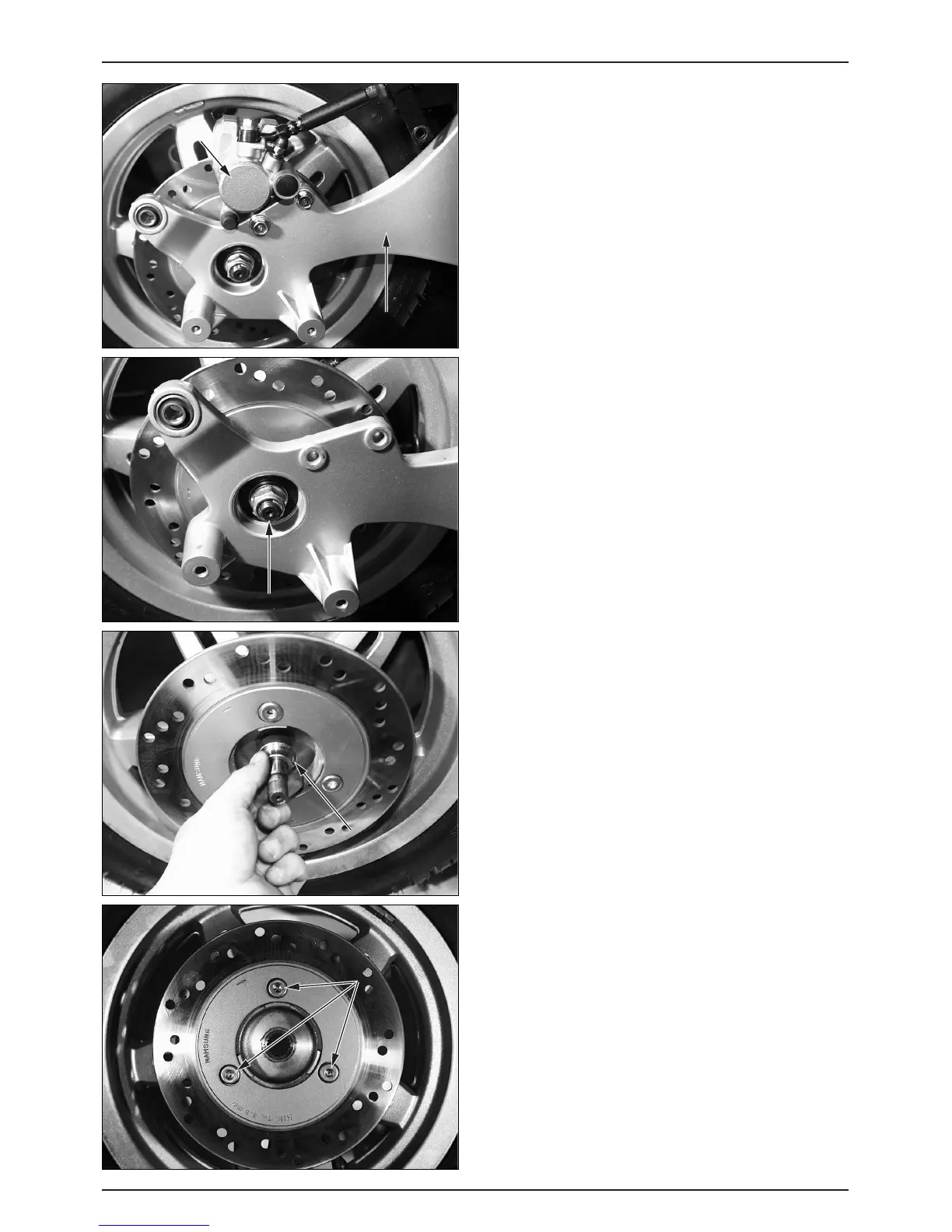

● Support the motorcycle on the main stand.
● Loosen the parking brake rod adjust nut B, and remove
the parking brake cable.
● Remove the brake arm joint B from the rear parking
brake arm.
● Remove the muffler. (⇨3-8 )
● Remove the rear brake caliper assembly from the rear
swing arm.
● Loosen the 3 rear brake disk bolts, remove the rear
brake disk from the rear wheel.
● Remove the rear swing arm. (⇨13-7 )
● Remove the rear wheel inside collar.
● Remove the rear wheel mudguard. (⇨3-8 )
● Remove the rear wheel.
● Loosen the rear axle nut.
13-5
REAR WHEEL / BRAKE / SUSPENSION / SWING ARM
REAR SWING ARM
REAR CALIPER
REAR AXLE NUT
INSIDE COLLAR
DISK BOLTS

DAELIM S2 125 Specifications

General

Displacement	124.6 cc
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air-cooled
Transmission	Automatic (CVT)
Front Brake	Disc
