DAELIM S2 125

DISASSEMBLY

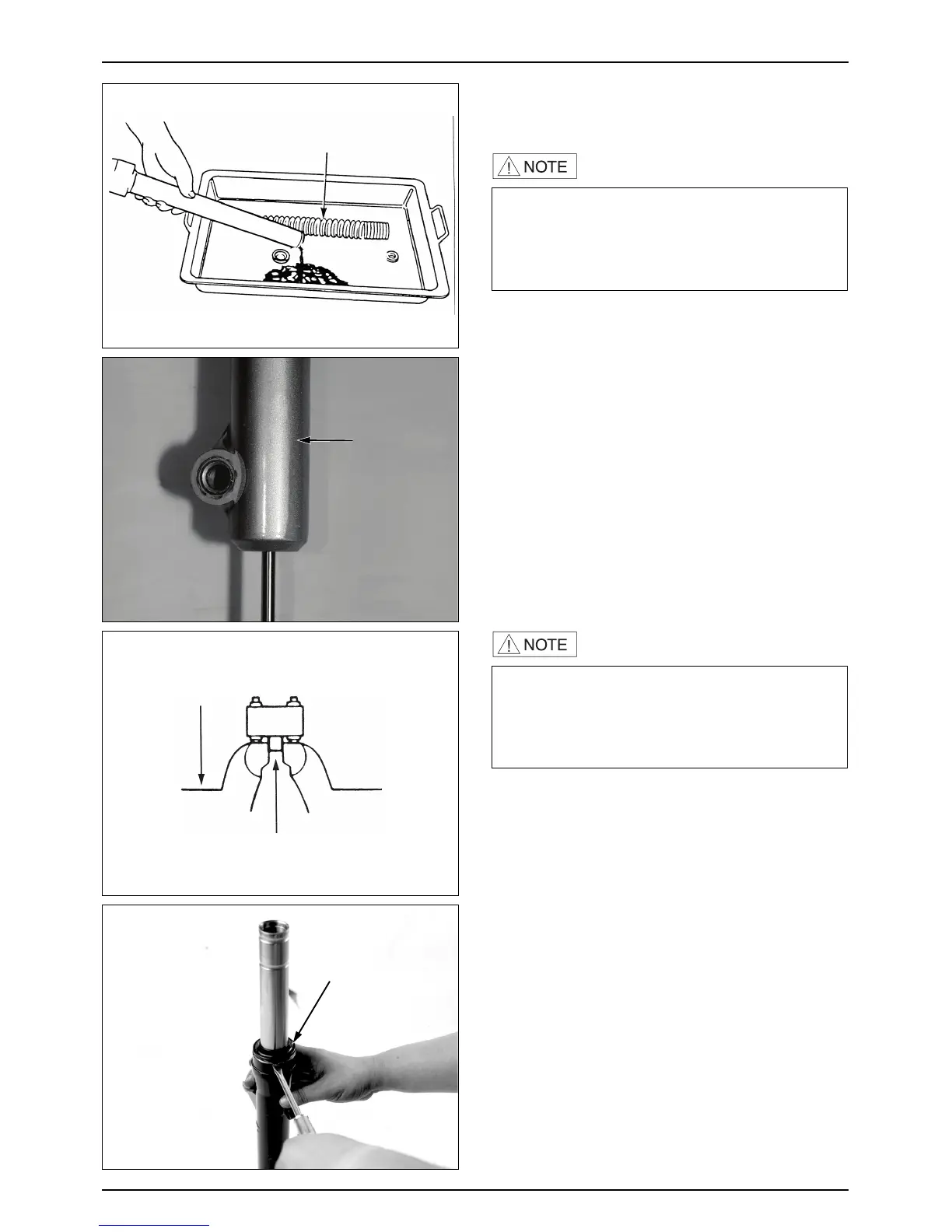

● Remove the fork pipe bolt.
● Wrap the bottom case with a piece of cloth, and
remove the socket bolt.
● Remove the dust seal.
12-15
FRONT WHEEL/FRONT FORK/STEERING/BRAKE
·If the screw is completely loosened, the fork tube
cap bolt may spring out by the force of the spring.
Take due precautions.
·Remove the fork spring, and expand and release the
fork pipe several times to drain fork oil.
·If the socket bolt turns idle but cannot be removed,
temporarily assemble the spring and the fork tube
cap bolt first.
·Hold the bottom case firmly with a vise, taking
precautions not to distort or damage it.
