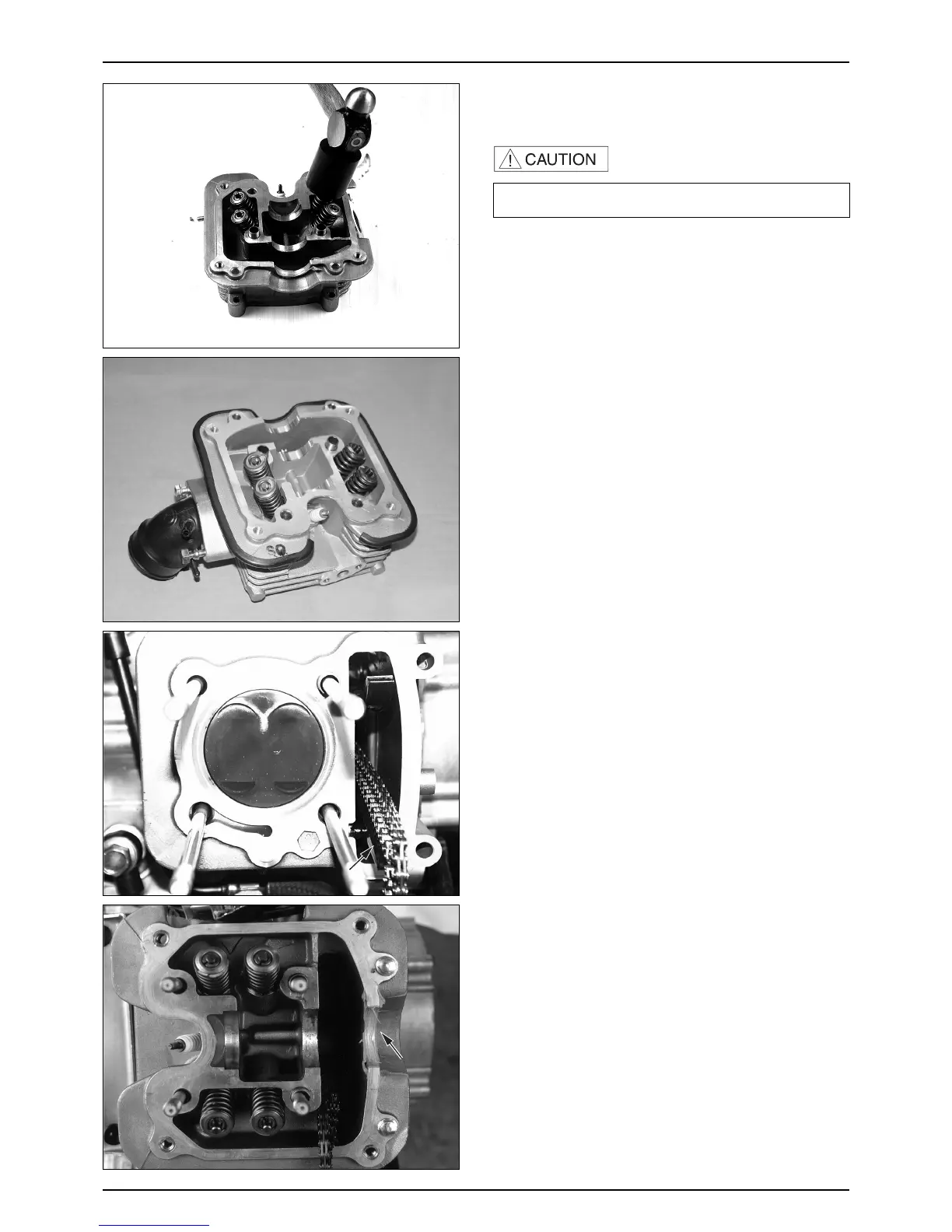

9-12
CYLINDER HEAD / VALVE
CAM CHAIN GUIDE
CYLINDER
HEAD
Tap the valve stems gently with a soft hammer to
firmly seat the cotters.
Apply engine oil to the new O-ring, and assemble it to
the carburetor insulator groove.
Tighten the carburetor insulator with mounting bolts.
Install the cam chain tensioner, and assemble pivot
bolts.
TORQUE : 1.0 kgf
·
m
Install the spark plug.
TORQUE : 1.2 kgf
·
m
Install the cylinder head.
Clean any gasket material from the cylinder mating surface.
Install the cam chain guide to the cylinder.
Install the dowel pins and new gasket.
·Take necessary precautions not to damage the valve.
