34

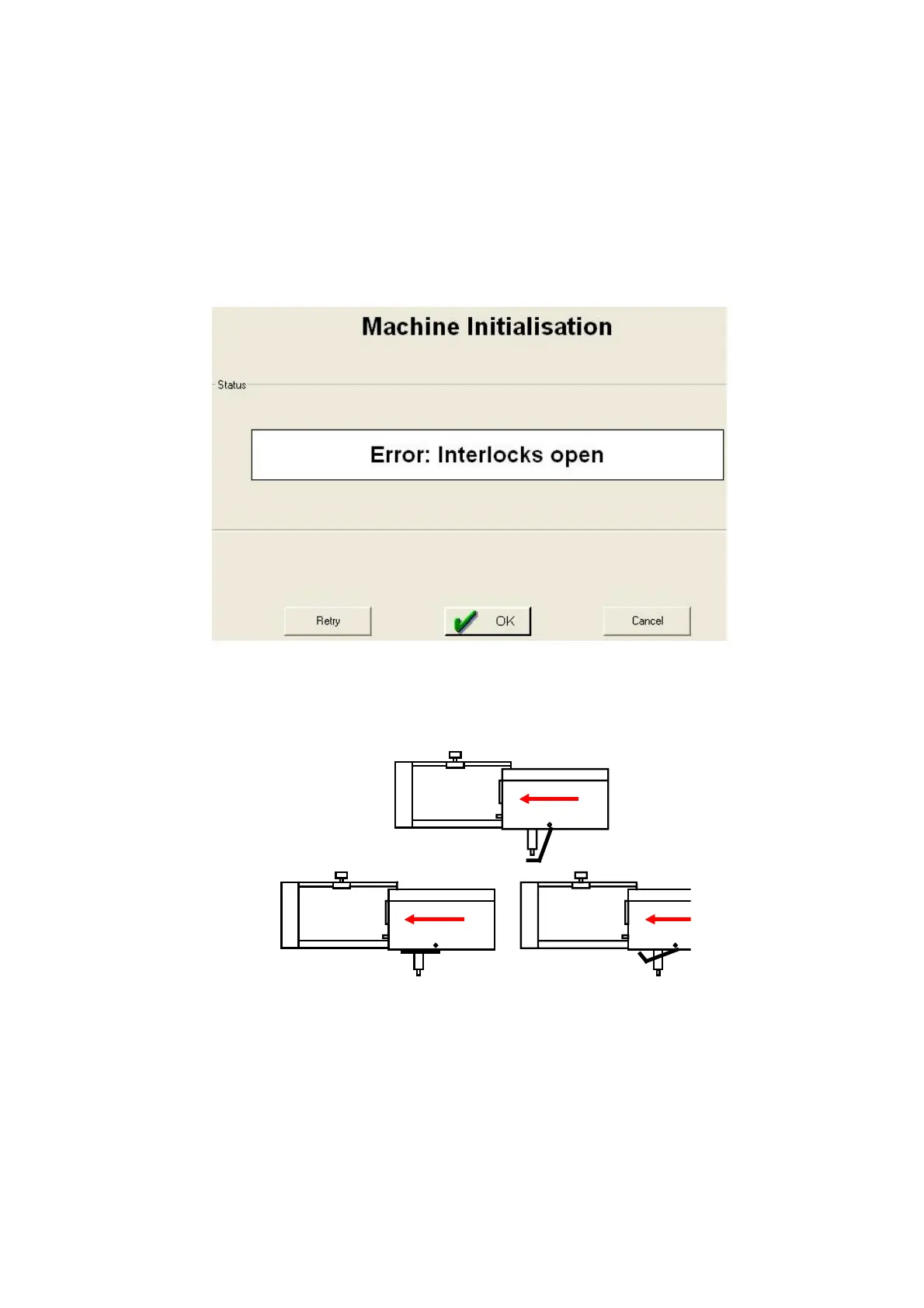

This screen is shown if the guards are not closed quickly enough after load cell
installation. As mentioned previously to remove this error close the guard doors if
they are not already closed and press retry.
Note: If a Zone shear XY table has been fitted to the machine the guards will
differ slightly but will function in the same manner as those shown here.
Note: Do not try to fit a cartridge with the guard up. This will jam the
mechanism.
Loosen the clamp screw as shown below.
