Take the cartridge keeping your hands and fingers clear of the tool guard.
Engage the lower left-hand edge of the cartridge 'V' slide as shown below.
Push the cartridge towards the machine and slide it to the left so that it engages with the upper
slide. This is very similar to fitting the load cell in the storage shelves.
Guide the cartridge with both hands as shown until the two faces indicated touch.
Use your left thumb to control the speed and force as the connections are made.
Tighten the clamp screw.
Once the load cell is fitted and the clamp screw has been tightened close the guard doors.

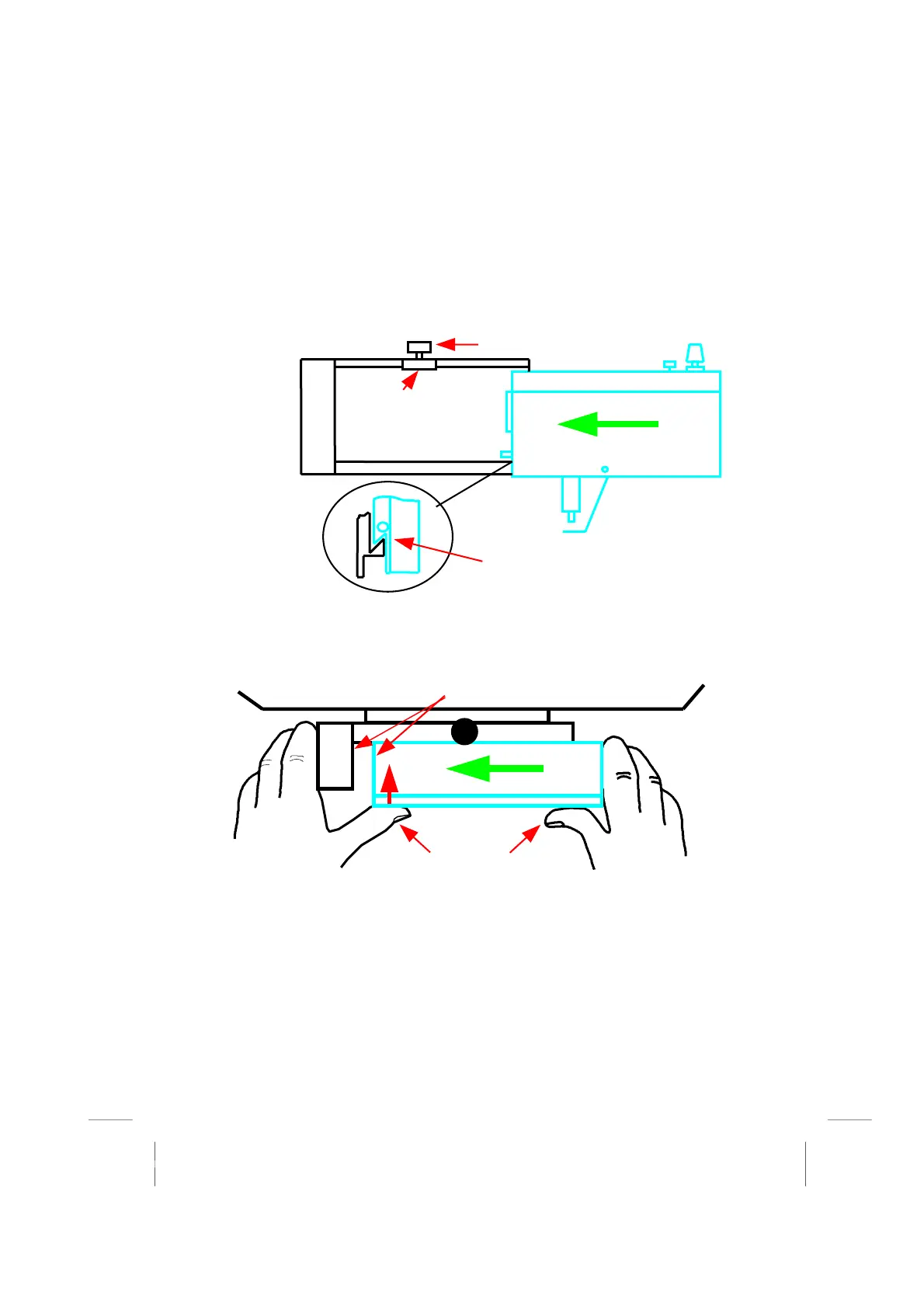

Align 'V' slides on the
cartridge and machine
Clamp screw
Upper slide
These two faces must touch
Guide cartridge with thumbs and
push cartridge towards the machine
