Dage 4000HS - Page 64

64

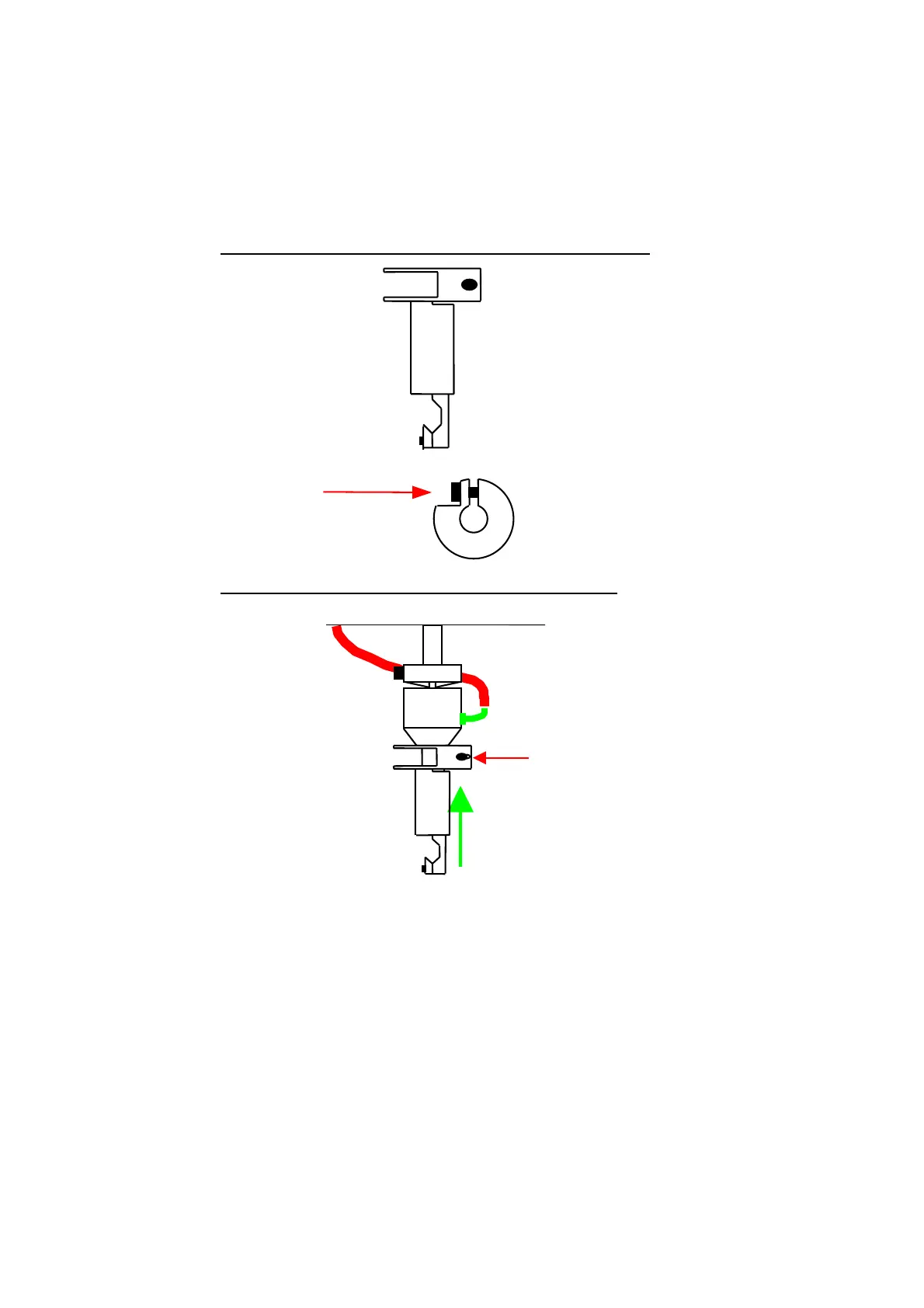

A small attachment is used for hooking the weight as shown below: -
Fit the hook to the Cold Bump Pull cartridge as shown below: -
Tighten the
clamp screw
Clamp screw
This calibration hook should be
included with the load cell
Remove any jaws,
which may be fitted to
the cartridge
