BS5KGHS load cell calibration using the high speed XY table.
BS5KGHS load cell calibration using the zone shear XY table.
Fixing Holes

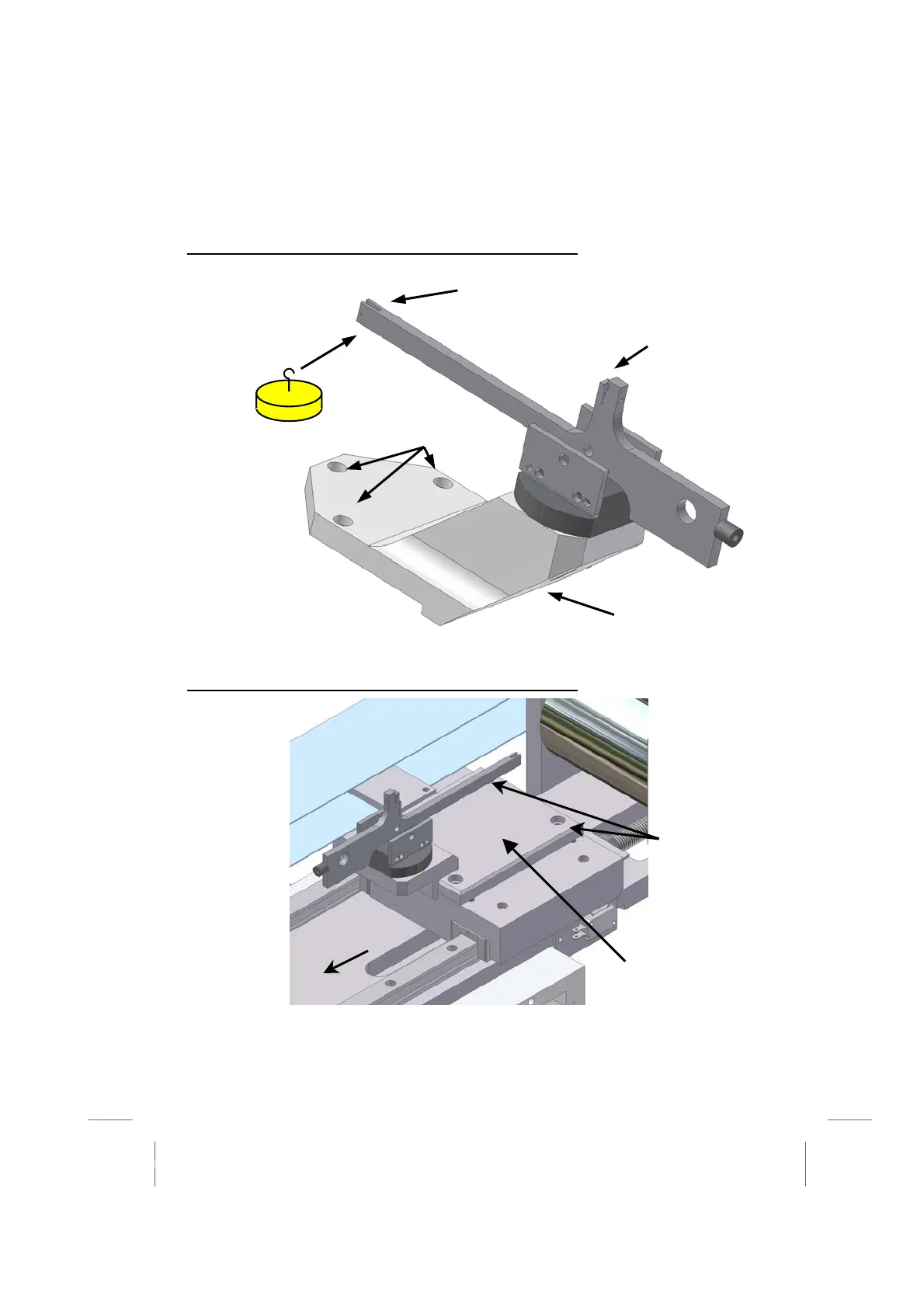

Hang the weight, which is asked for by
the software here
Shear tool shear point
Front of calibration jig
Adapter Plate
Fixing Holes. One at Each
Corner.
Front of XY
Table
The adapter plate can only be
installed in one orientation.
To Next Page
