68
To fit the calibration jig in order to calibrate the BS5KgHS it is necessary to remove the
existing work holder and stand by removing the three or four screws as described in
section 5.3. At the time of press the BS5KGHS has only one range so only one weight
(500g) is required for BS5KgHS load cell calibration.
IT IS VERY IMPORTANT THAT WHEN
CALIBRATING A BS5KGHS NOT TO PERFORM A
STANDARD SHEAR TEST AS A COLLISION AND
DAMAGE IS VERY LIKELY. THIS CALIBRATION JIG IS TO BE USED IN
CONJUNCTION WITH THE CALIBRATION ROUTINE ONLY.

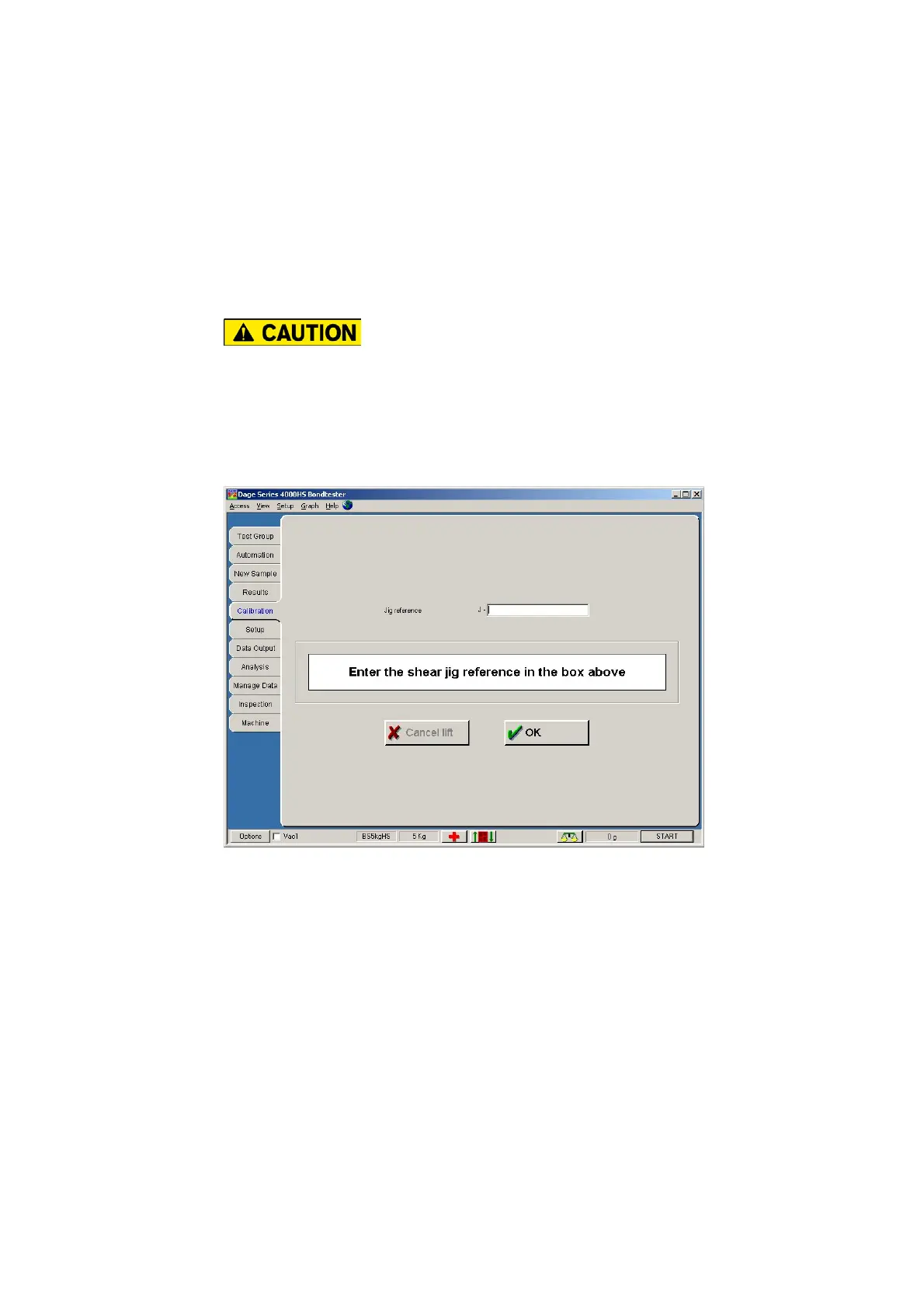

Select <Calibration> as shown below
You will need to enter the reference number on the top of the jig (begins with
"J").
