Dahua NVR1A-4P Series User Manual

116

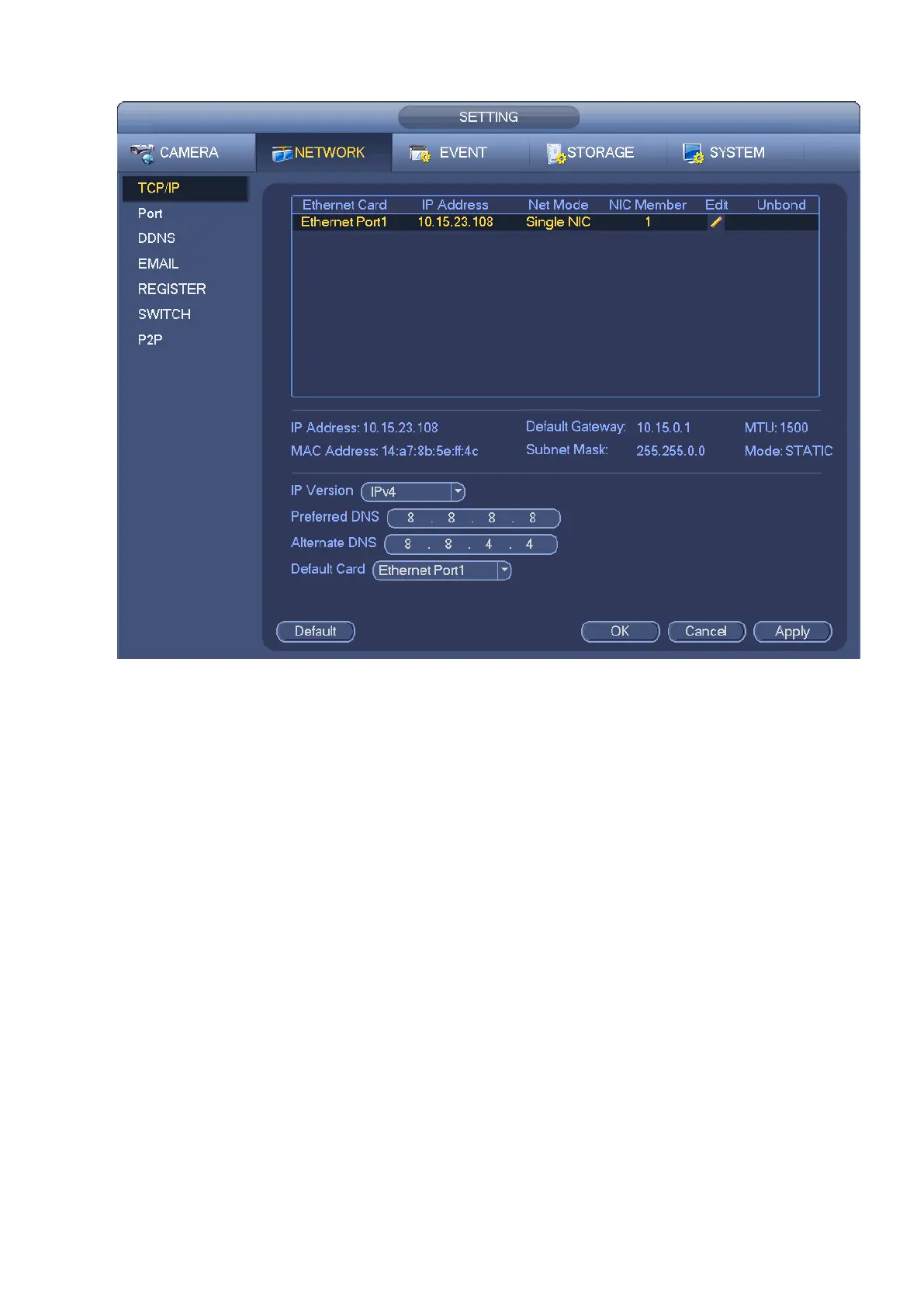

Figure 4-94
4.8.1.2 Port
The port setup interface is shown as in Figure 4-95.
 Max connection: The max client login amount (such as WEB, platform, cellphone and etc). The value
ranges from 1 to 128(default).
 TCP port: Default value is 37777.
 UDP port: Default value is 37778.
 HTTP port: Default value is 80.
 HTTPS port: Select the Enable check box and configure the port according to your actual needs. The
default value is 443. After HTTPS is enabled, HTTP will be switched to HTTPS by force to transmit
data in a safer way.
 RTSP port: Default value is 554.
Important: System needs to reboot after you changed and saved any setup of the above four ports.
Please make sure the port values here do not conflict.
