Dahua NVR1A-4P Series - Connection Sample; NVR1 A-4 P, NVR1 A-8 P, NVR1 B04 (;L), NVR1 B08 (;L), NVR1 B04-4 P (;L) Series; Nvr1 Ahs, Nvr1 Ahs-4 P, Nvr1 Ahs-8 P, Nvr1 B04 Hs (;L), Nvr1 B08 Hs (;L)

36
Figure 3-12

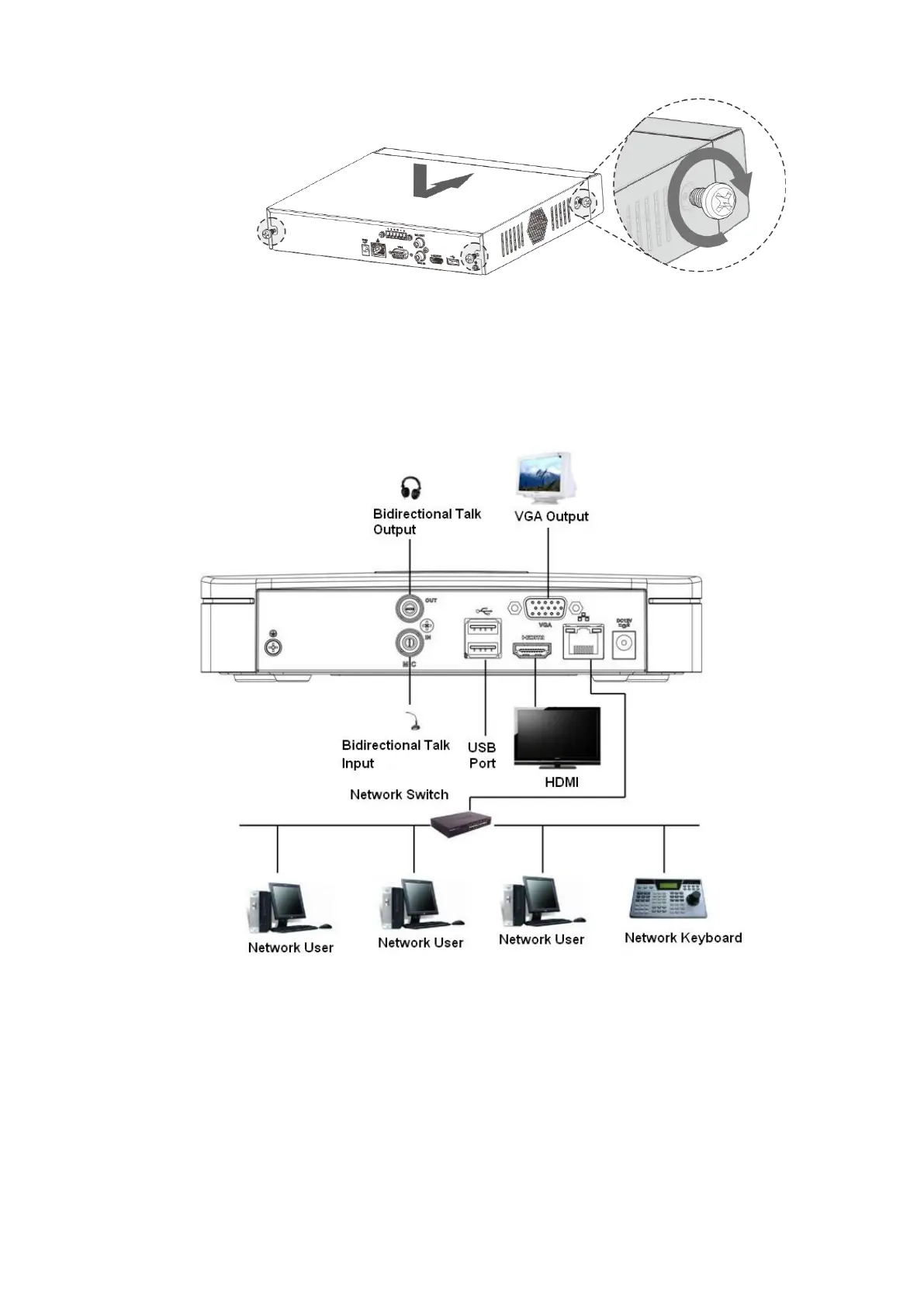

3.5 Connection Sample
3.5.1 NVR1A-4P, NVR1A-8P, NVR1B04 (/L), NVR1B08 (/L), NVR1B04-4P (/L) Series
Please refer to Figure 3-13 for connection sample.
The following figure for reference only.
Figure 3-13
3.5.2 NVR1AHS, NVR1AHS-4P, NVR1AHS-8P, NVR1B04HS (/L), NVR1B08HS (/L),
NVR1B04HS-4P (/L), NVR1B08HS-8P, NVR1BHC/E, NVR1BHC-4P/E,
NVR1BHS-8P/E Series
Please refer to Figure 3-14 for connection sample.
The following figure for reference only.
