35

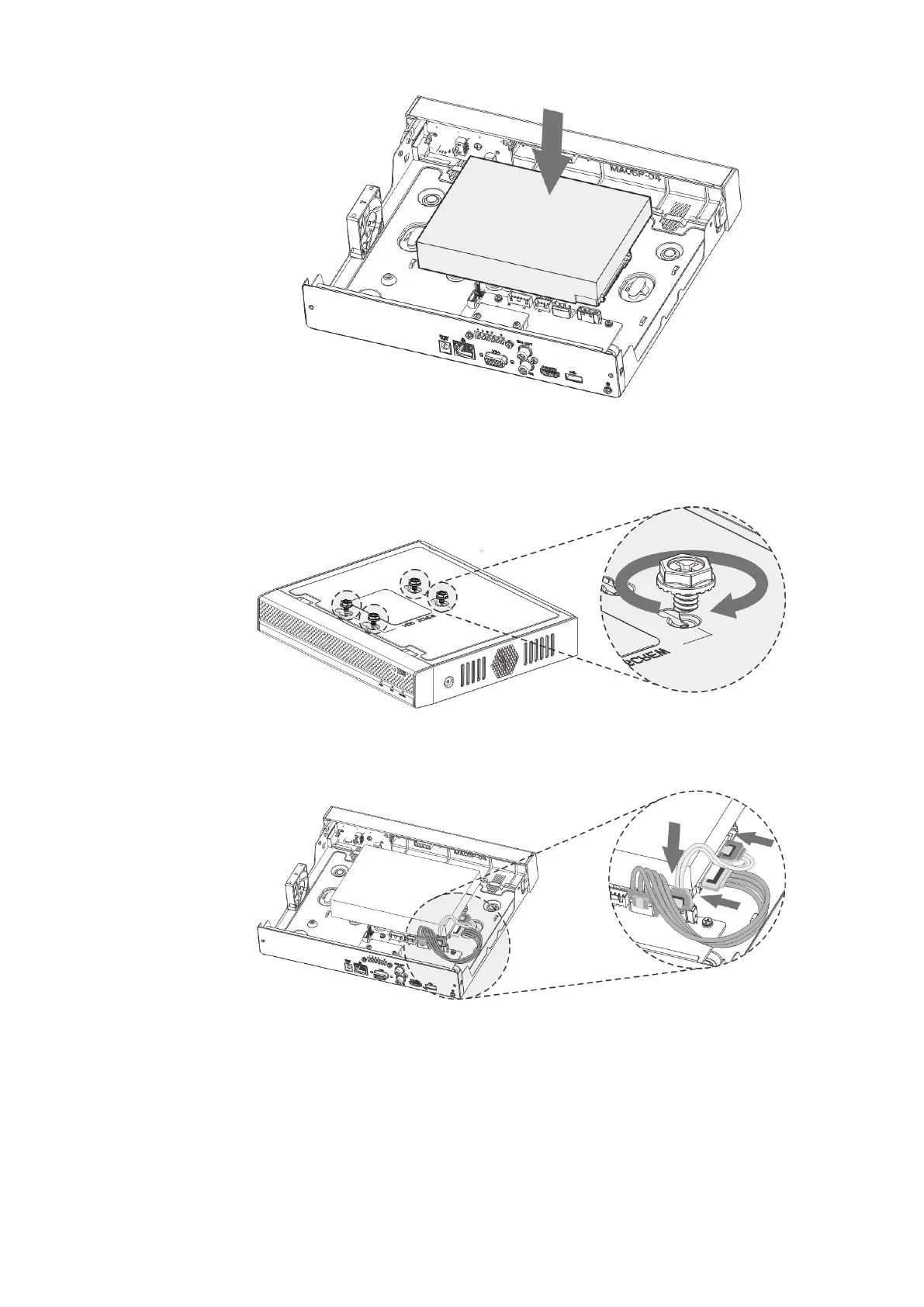

Figure 3-9
Step4 Turn the device upside down, match the screws with the holes on the HDD and then fasten them.
The HDD is fixed to the baseboard
Figure 3-10
Step5 Connect the HDD data cable and power cable to the device.
Figure 3-11
Step6 Put back the cover and fasten the screws on the rear panel and side panels to complete the
installation.
