2.2.4 NVR1AHS, NVR1AHS-4P, NVR1AHS-8P, NVR1B04HS, NVR1B08HS,
NVR1B04HS-4P, NVR1B08HS-8P Series

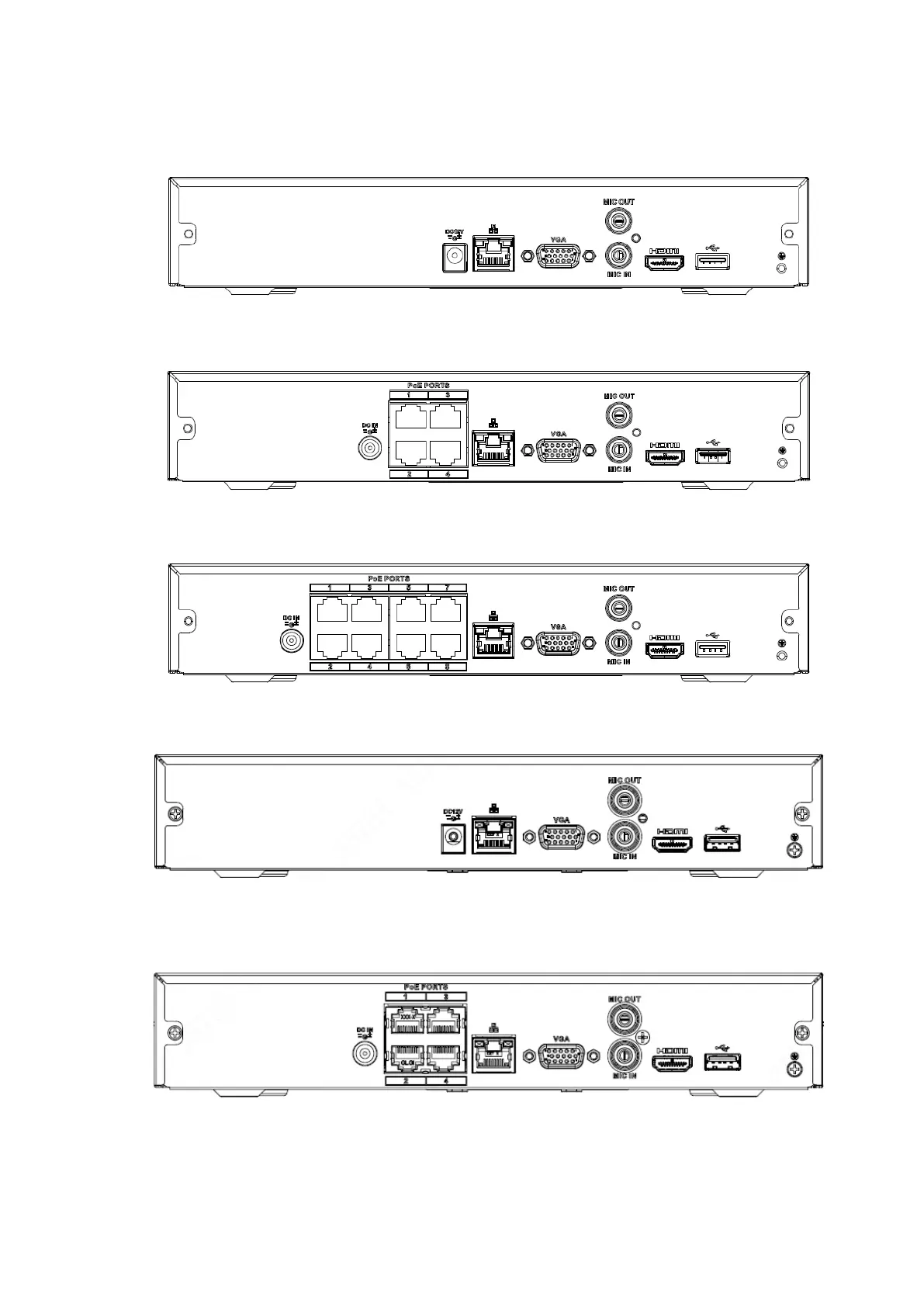

The NVR1AHS series rear panel is shown as below. See Figure 2-13.
Figure 2-13
The NVR1AHS-4P series rear panel is shown as below. See Figure 2-14.
Figure 2-14
The NVR1AHS-8P series rear panel is shown as below. See Figure 2-15.
Figure 2-15
The NVR1B04HS, NVR1B08HS series rear panel is shown as below. See Figure 2-16.
Figure 2-16
The NVR1B04HS-4P series rear panel is shown as below. See Figure 2-17.
Figure 2-17
The NVR1B08HS-8P series rear panel is shown as below. See Figure 2-18.
