2 Front Panel and Rear Panel
NOTE
The following front panel and rear panel figures are for reference only. The actual product shall prevail.
2.1 Front Panel
2.1.1 NVR1A-4P, NVR1A-8P, NVR1B04 (/L), NVR1B08 (/L), NVR1B04-4P (/L) Series

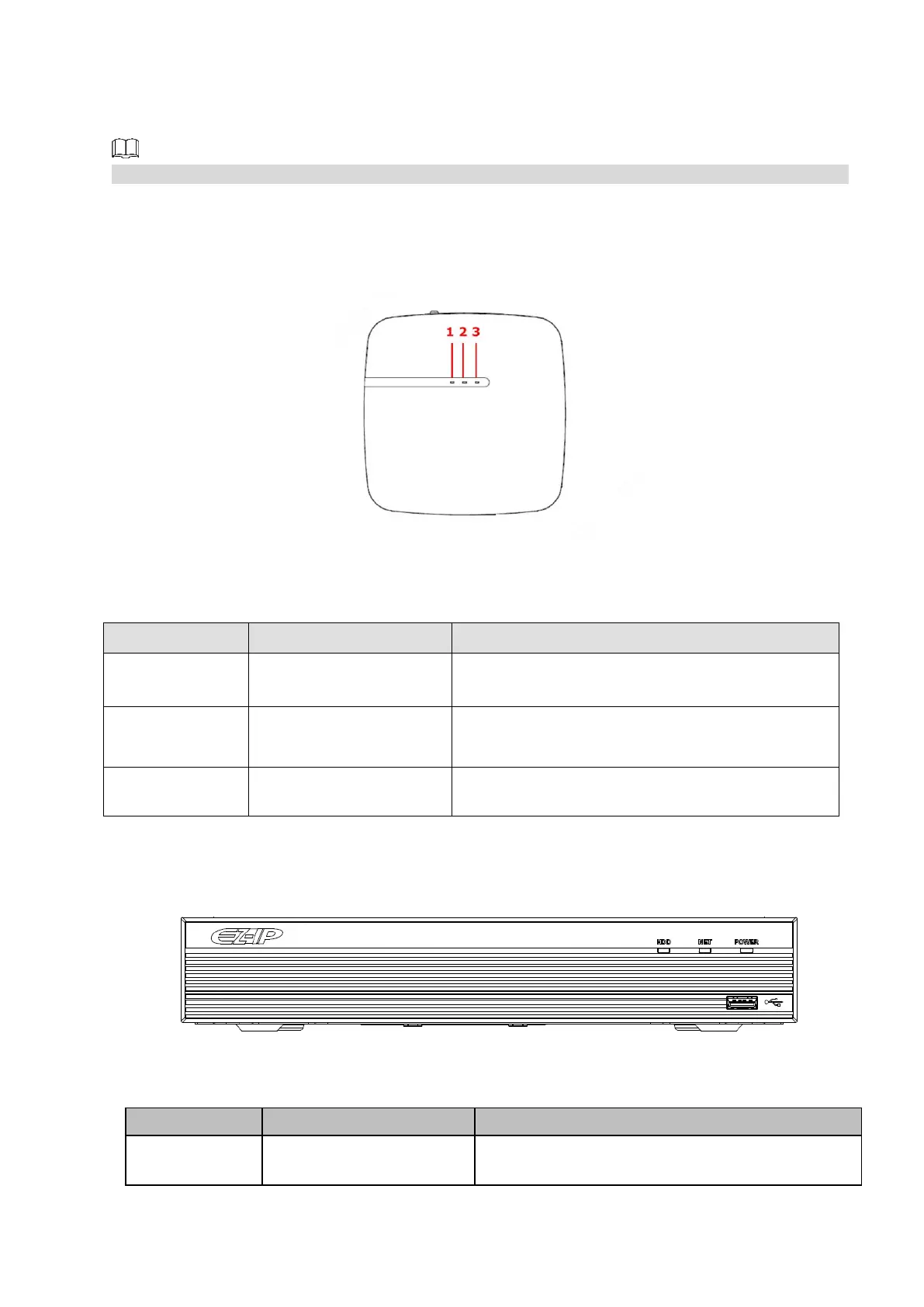

The front panel is shown as in Figure 2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
SN
Name
Function
1
HDD status indictor light
The red light becomes on when HDD is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2.1.2 NVR1AHS, NVR1AHS-4P, NVR1AHS-8P, NVR2A16, NVR1B04HS (/L),
NVR1B08HS (/L), NVR1B04HS-4P (/L), NVR1B08HS-8P, NVR2B16 Series
The front panel is shown as in Figure 2-2.
Figure 2-2
Please refer to the following sheet for front panel button information.
Icon
Name
Function
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
