Dahua NVR1A-4P Series User Manual

27
Figure 2-19

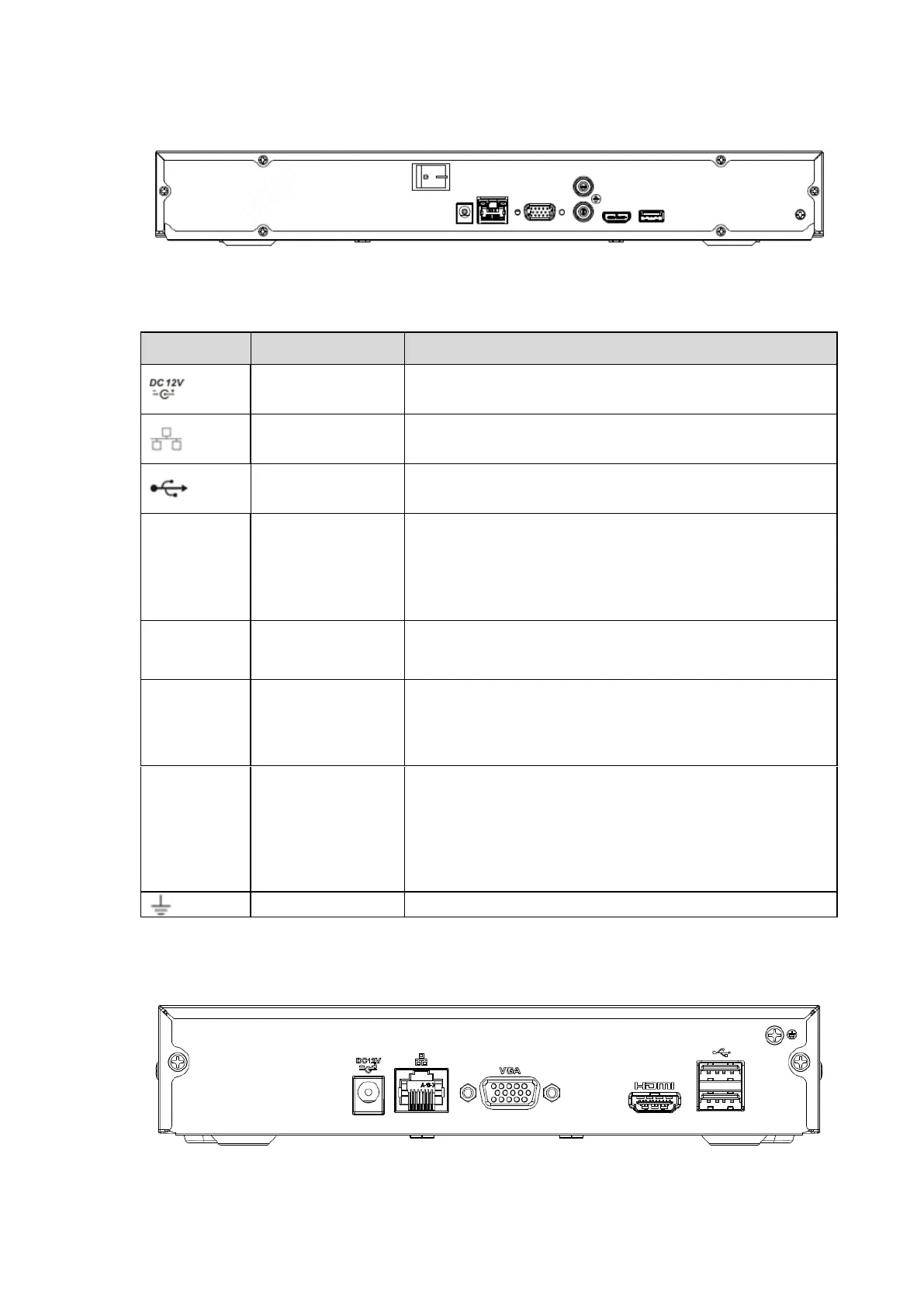

The NVR2B16 series rear panel is shown as below. See Figure 2-20.
Figure 2-20
Please refer to the following sheet for detailed information.
Port Name
Connection
Function
Power input port
Power socket.
Network port
10M/100Mbps self-adaptive Ethernet port. Connect to the
network cable.
USB port
USB port. Connect to mouse, USB storage device and
etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as microphone,
pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog audio signal to
the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
GND
Ground end
2.2.6 NVR1BHC/E, NVR1BHC-4P/E, NVR1BHS-8P/E Series
The NVR1BHC/E series rear panel is shown as below. See Figure 2-21.
Figure 2-21
The NVR1BHC-4P/E series rear panel is shown as below. See Figure 2-22.
