Dahua NVR1A-4P Series - NVR1 BHC;E, NVR1 BHC-4 P;E, NVR1 BHS-8 P;E Series; Rear Panel; NVR1 B04;L, NVR1 B08;L, NVR1 B04-4 P;L Series; NVR1 A-4 P, NVR1 A-8 P, NVR1 B04, NVR1 B08, NVR1 B04-4 P Series

22
Icon
Name
Function
NET
Network status indicator
light
The blue light is on when the network connection is
abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.
USB port
Connect to peripheral USB storage device, mouse
and etc.
2.1.3 NVR1BHC/E, NVR1BHC-4P/E, NVR1BHS-8P/E Series
The NVR1BHC/E, NVR1BHC-4P/E series front panel is shown as in Figure 2-3.

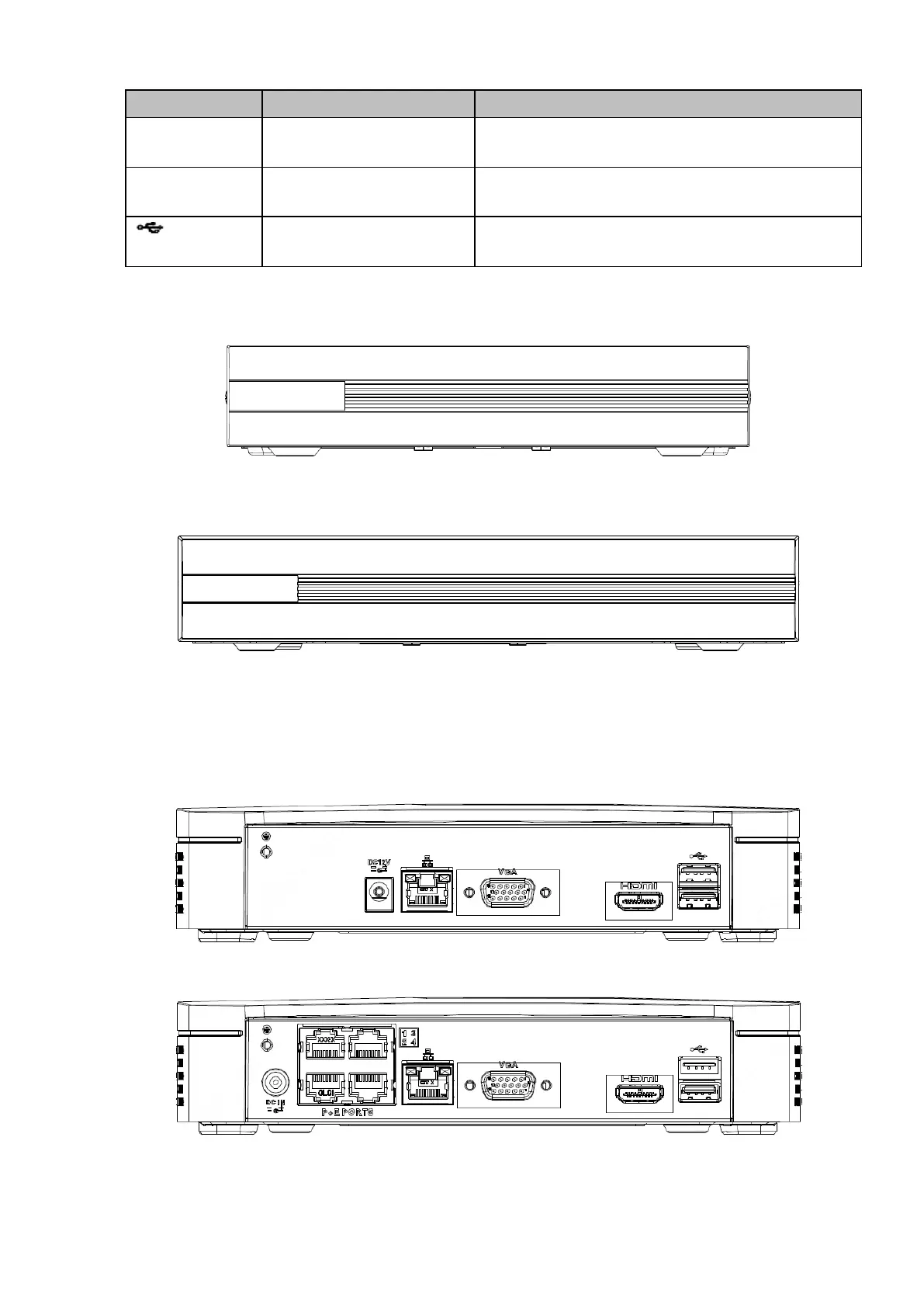

Figure 2-3
The NVR1BHS-8P/E series front panel is shown as in Figure 2-4.
Figure 2-4
2.2 Rear Panel
2.2.1 NVR1B04/L, NVR1B08/L, NVR1B04-4P/L Series
The NVR1B04/L, NVR1B08/L series rear panel is shown as in Figure 2-5.
Figure 2-5
The NVR1B04-4P/L series rear panel is shown as in Figure 2-6.
Figure 2-6
2.2.2 NVR1A-4P, NVR1A-8P, NVR1B04, NVR1B08, NVR1B04-4P Series
