125

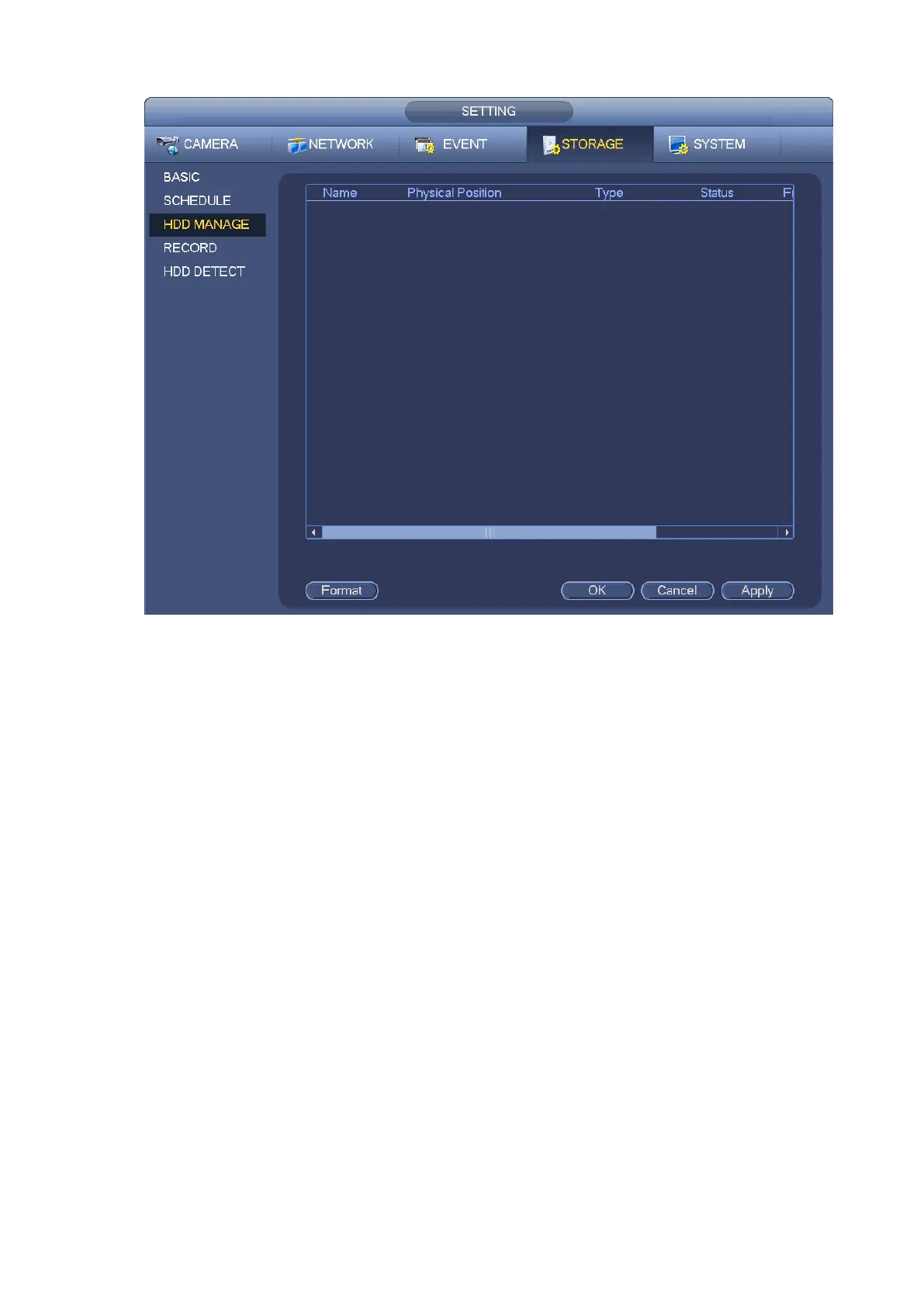

Figure 4-102
Step 2 Select a HDD and then select an time from the dropdown list. Click Execute button.
Step 3 Click OK button to complete the setup. You can see system needs to restart to activate current
setup if you want to format the HDD.
4.9.4 Record Control
After you set schedule record or schedule snapshot function, please set auto record/snapshot function so
that the NVR can automatically record or snapshot. For detailed information, please refer to chapter
4.1.4.5.3 record control.
4.9.5 HDD Information
Here is to list hard disk type, total space, free space, and status. See Figure 4-103.
○ means current HDD is normal.. - means there is no HDD.
If disk is damaged, system shows as “?”. Please remove the broken hard disk before you add a new one.
