User's Manual

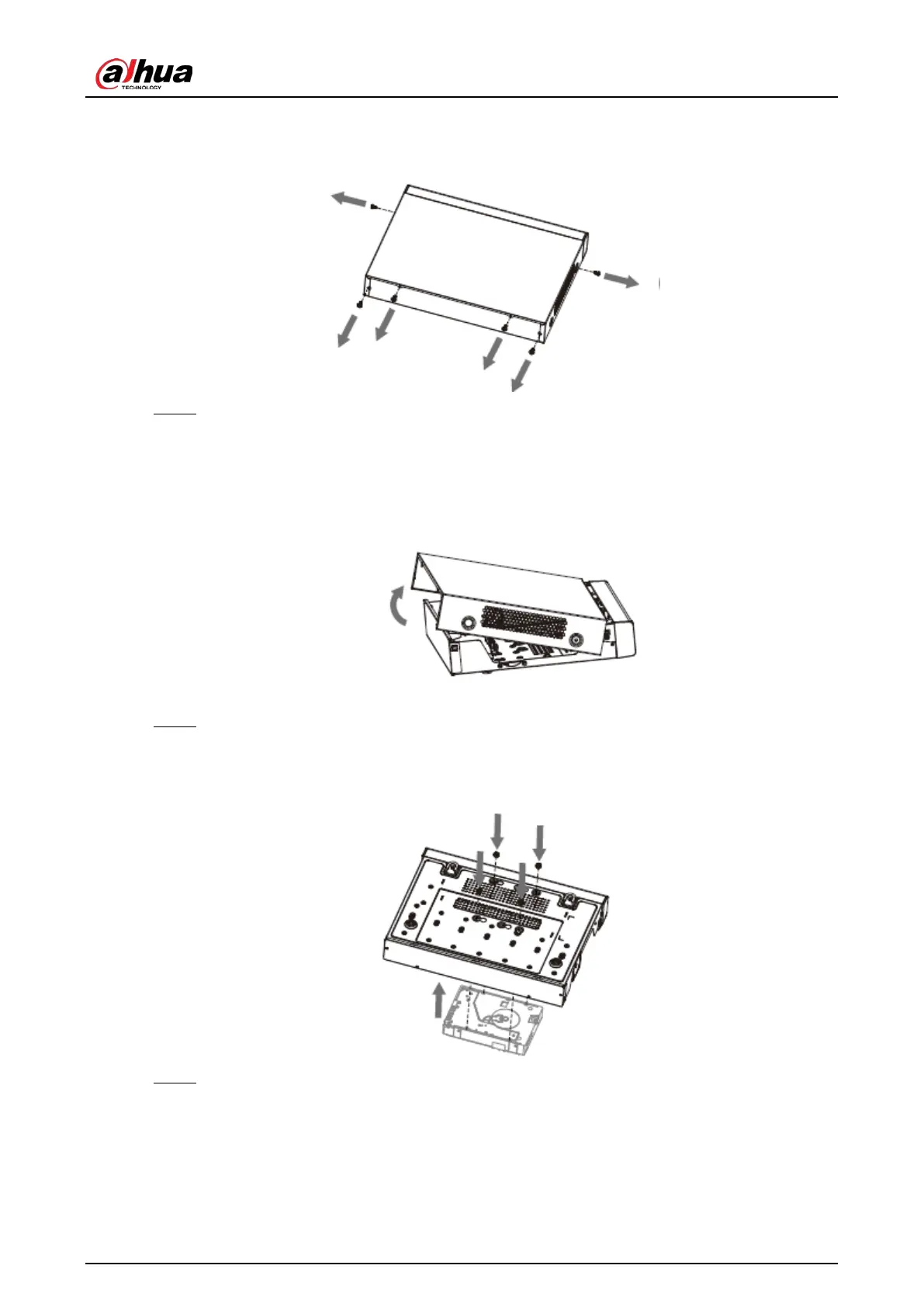

Figure 3-7 Loosen screws

Step 2 Remove the cover in the direction of the arrow as shown in the figure below.

Figure 3-8 Remove cover

Step 3 Turn over the device, and align the HDD to the four holes of bottom panel, and then fix the

HDD with screws.

Figure 3-9 Align HDD

Step 4 Connect HDD to the device using data cable and power cable.
