Dahua NVR5432-XI - NVR52-16 P-I;NVR52-16 P-I;L;NVR52-8 P-I;NVR52-8 P-I;L;NVR42-8 P-I;NVR42-16 P-I Series; NVR4216-I Series; NVR608-4 KS2;NVR608 H-XI;NVR608 RH-XI Series

3.5.12 NVR52-16P-I/NVR52-16P-I/L/NVR52-8P-I/NVR52-8P-
I/L/NVR42-8P-I/NVR42-16P-I Series

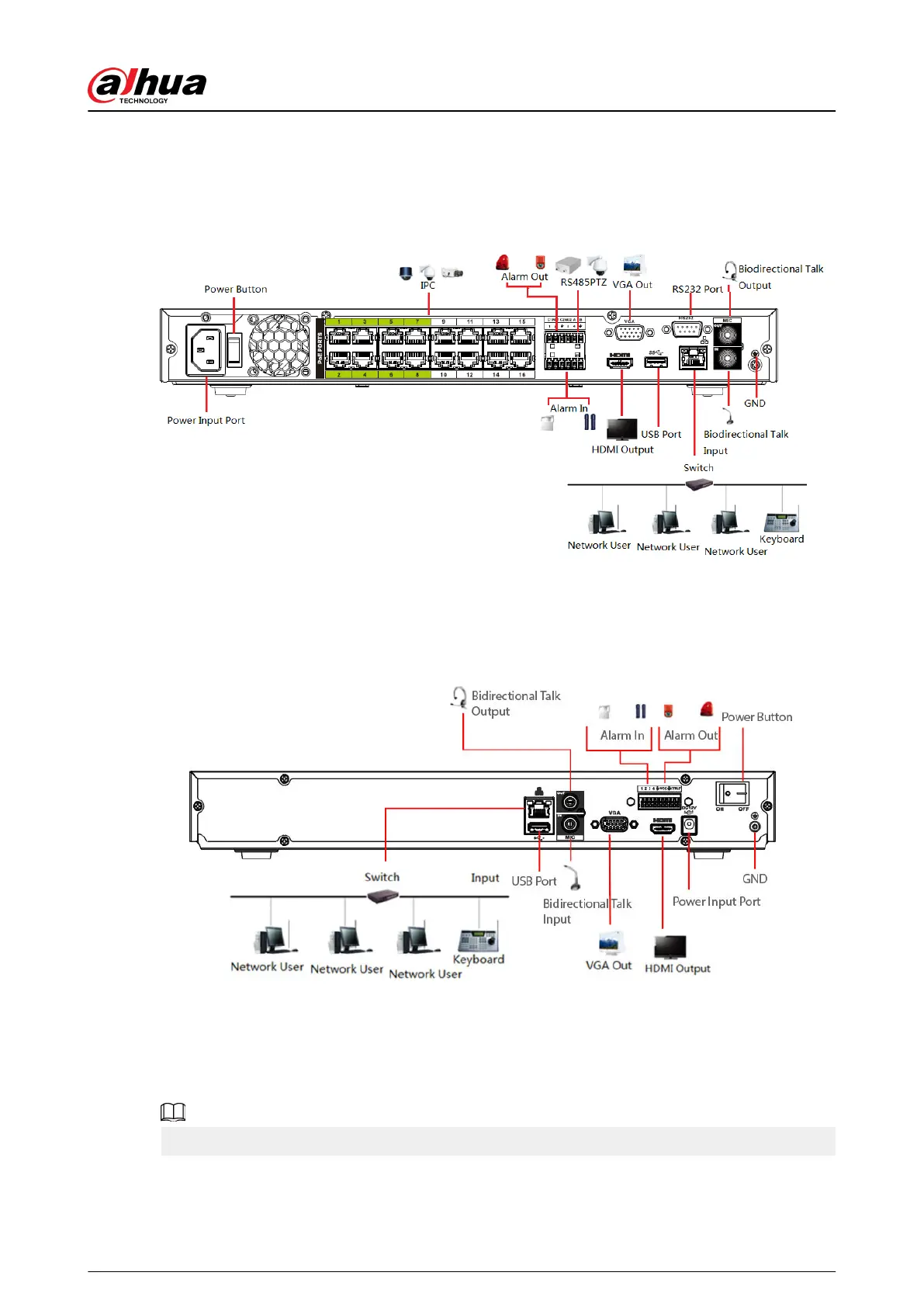

Figure 3-59 Typical connection
3.5.13 NVR4216-I Series
Figure 3-60 Typical connection
3.5.14 NVR608-4KS2/NVR608H-XI/NVR608RH-XI Series
The following gure is for reference only and might dier from the actual product.
