User's Manual
89

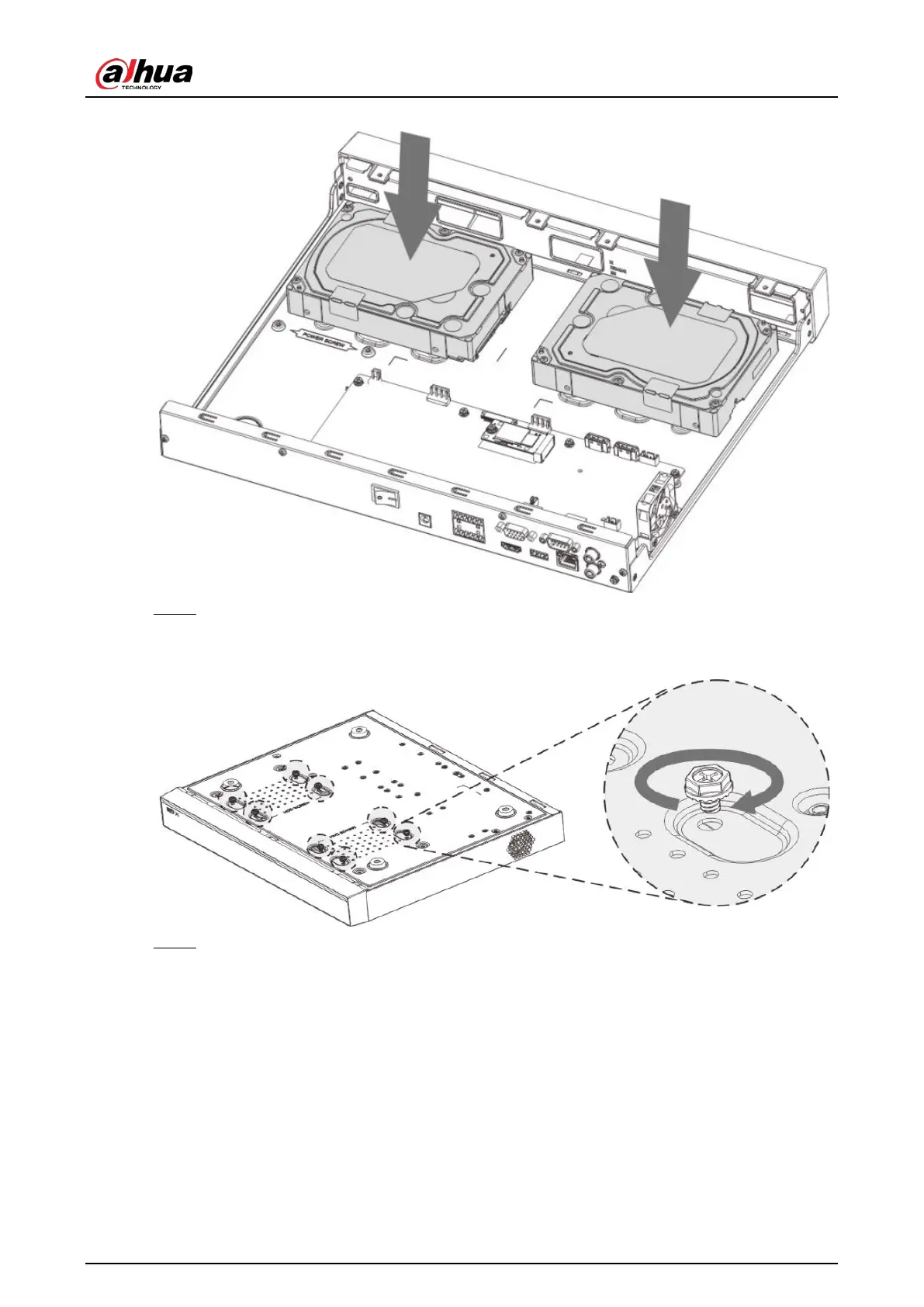

Figure 3
-
14 Align HDD
Step 4
Turn the d
evice
upside down, match th
e screws with the holes on t
he HDD and then fasten
them. The HDD is fixed to the baseboard.
Figure 3
-
15 Fasten
screws
Step 5
Connect the HDD data cable a
nd power cable t
o the device.
