Table 2-42 Ports
No. Name No. Name
1 Power on-off button 2 Power socket
3 1000M fiber port 4 Network port
5 HDMI port 6 RS-232 port
7 Video VGA output 8 Audio output
9 Audio input 10 USB 3.0 port
11 USB 3.0 port 12 eSATA port
13 SAS extension port 14 Alarm input/output/RS-485 port
15
HDMI port
High-definition decoding card is not
installed in standard hardware
configuration, you can purchase as
needed.
— —

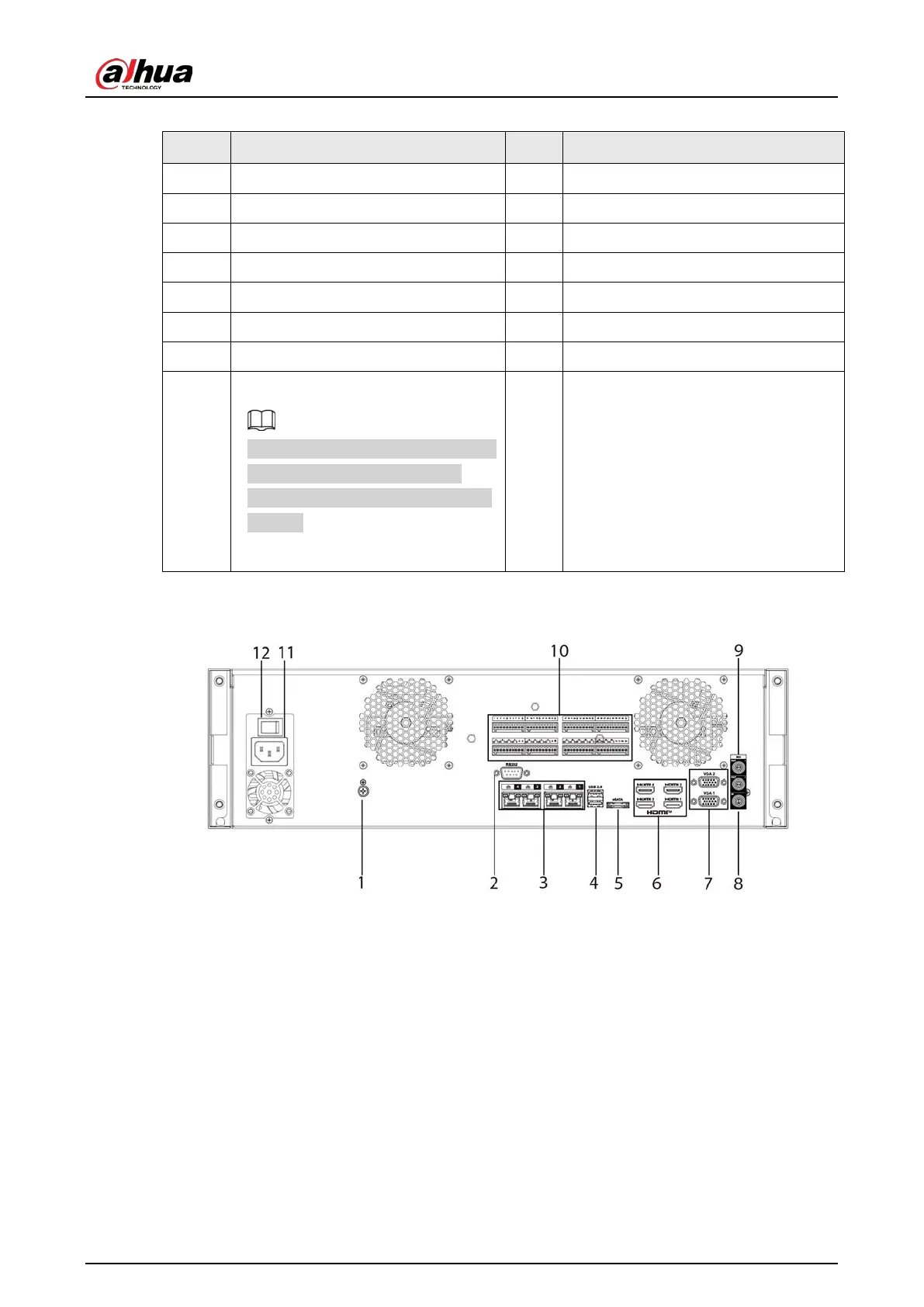

The general series rear panel of NVR616-XI series is shown as below.
Figure 2-106 Rear panel

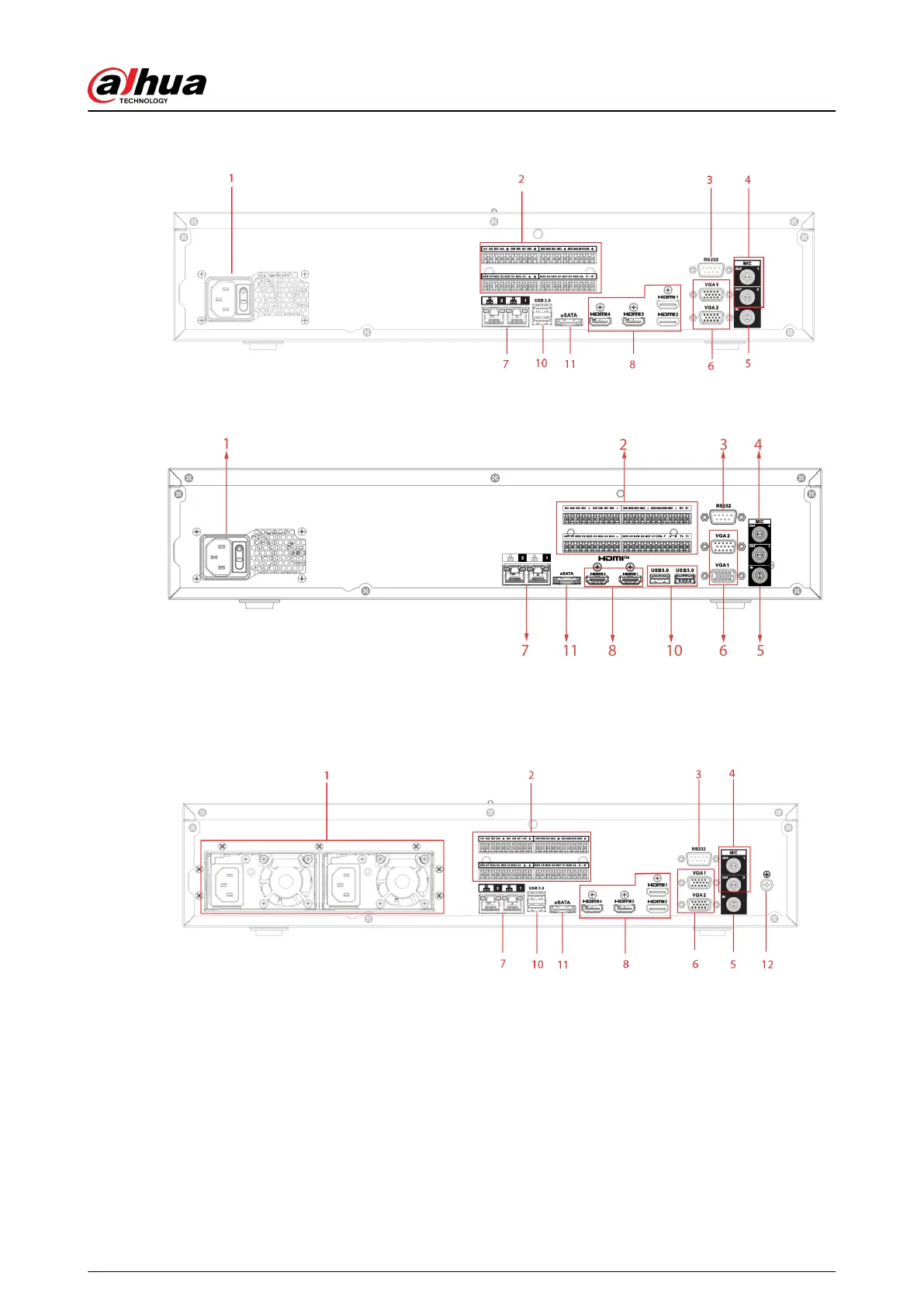

The redundant power series rear panel of NVR616-XI series is shown as below.
