●Disassembling Procedure
119
8
Disassembling Procedure
Disassembling
Procedure
Work Procedure Point
WARNING
Before disassembling work, be sure
to turn OFF all power supplies.
1 Many of the DC fan motor
(M3F), electronic expansion
valve for main circuit (Y1E),
motor operated valve for hot
gas (Y2E), high pressure
switch (S3PH), and connection
wiring (lead wires) to the
other electrical components
pass through the left and right
wiring ports, instead of the
conventional grommet.
To remove these wires, follow
the procedure below.

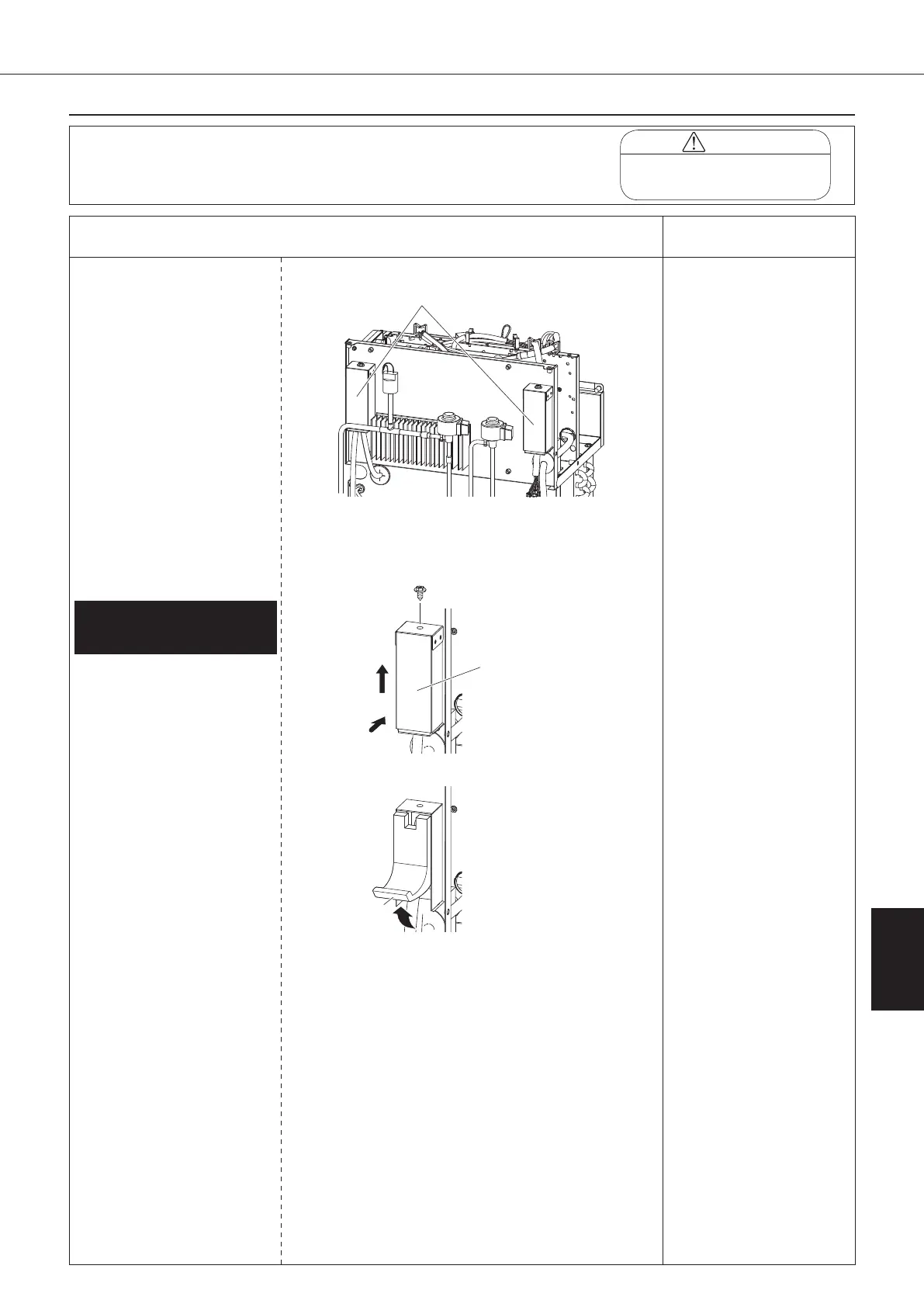

① Unscrew one screw and
remove the wiring port
cover.
② Peel off the sealing
material inside. (*1)
③ Pull out the lead wire of
the part to be replaced.
1.
Removing the wiring port
cover and sealing material.
*1
Once the sealing material
of the wiring port is
removed, its dust-preventive
performance is degraded.
扌
Change the removed sealing
material with a new one
before taking in lead wire
again.
Wiring port cover
Wiring port cover
(Sample: right side)
Remove
while pushing.
Sealing
material
Procedure for Removing Wiring
Inside Wiring Port
