●Disassembling Procedure
131
8
Disassembling Procedure
Disassembling
Procedure
Work Procedure Point
WARNING
Before disassembling work, be sure
to turn OFF all power supplies.
① Disconnect the relay
connector of the
condenser thermistor.
(wire color: red) Remove
the band banding the
condenser thermistor in
the oil cooling unit.
② Pull out the condenser
thermistor from the
thermistor holder.
Procedure for Removing
Thermistors (2/2)
*1
*1
Disconnect the relay
connector in the oil cooling
unit before replacing the
thermistors.

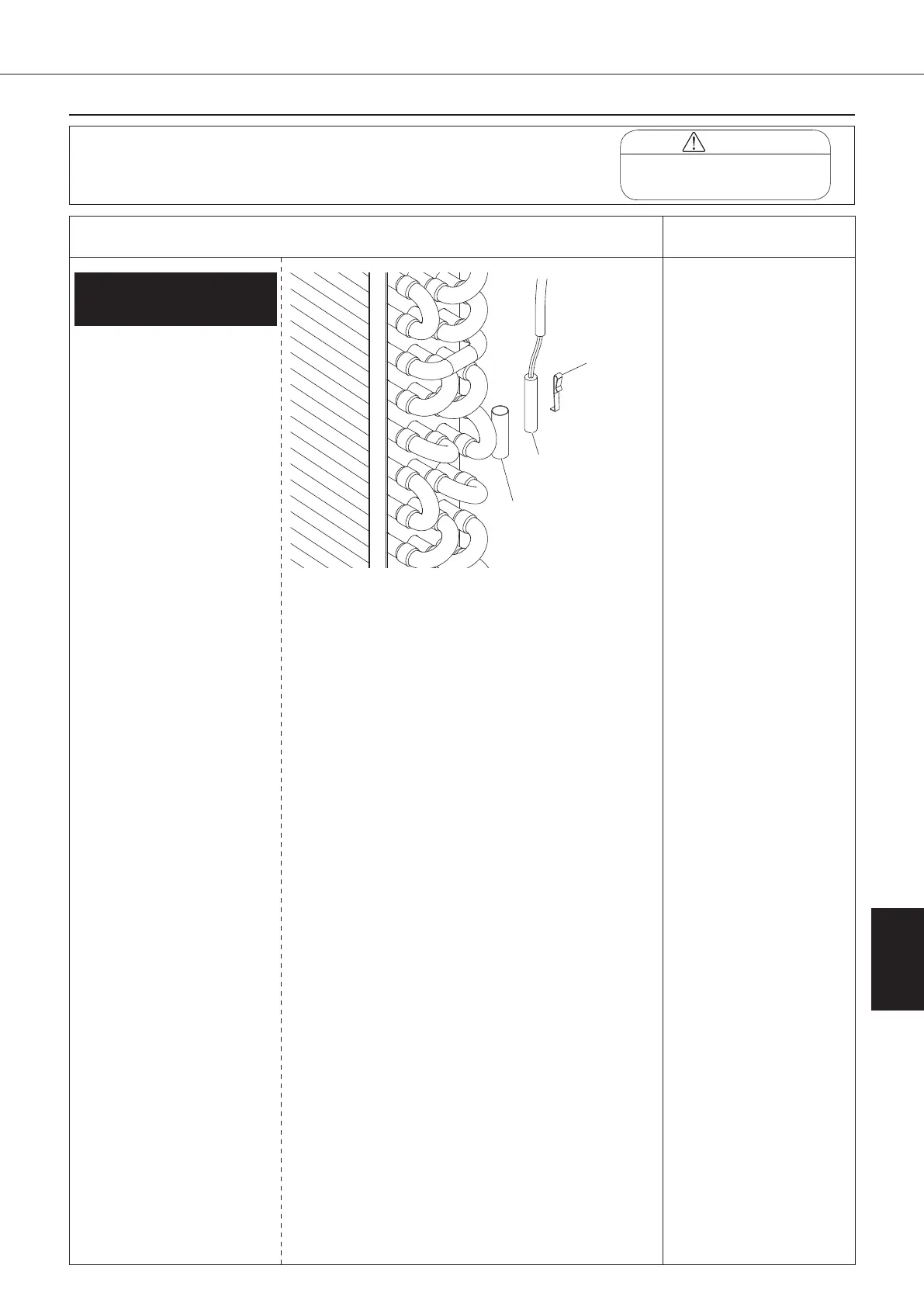

Condenser thermistor
(Th-7)
Thermistor holder
Support
spring
5.
Removing condenser
thermistor (Th-7)
