Disassembling Procedure
Work Procedure Point
WARNING
Before disassembling work, be sure
to turn OFF all power supplies.
1
Remove the switch box cover, top
panel, back panel, left side panel,
and right side panel in accordance
with “Procedure for Removing
Outside Panel Block (P.133)”.
① Remove the heat
insulating material.
② Recover refrigerant from
the service port.
③ Disconnect the brazing
section of the high
pressure switch (S3PH).
④ Disconnect the connector
(63H) on the control
board, and pull out the
lead wire of the high
pressure switch (S3PH)
from the wiring port (*1).
Remove the band banding
the lead wires of the high
pressure switch (S3PH) in
the oil cooling unit.
*1
Once the sealing material
of the wiring port is
removed, its dust-preventive
performance is degraded.
扌
Change the removed sealing
material with a new one
before taking in lead wire
again.
Procedure for Removing High
Pressure Switch
1.

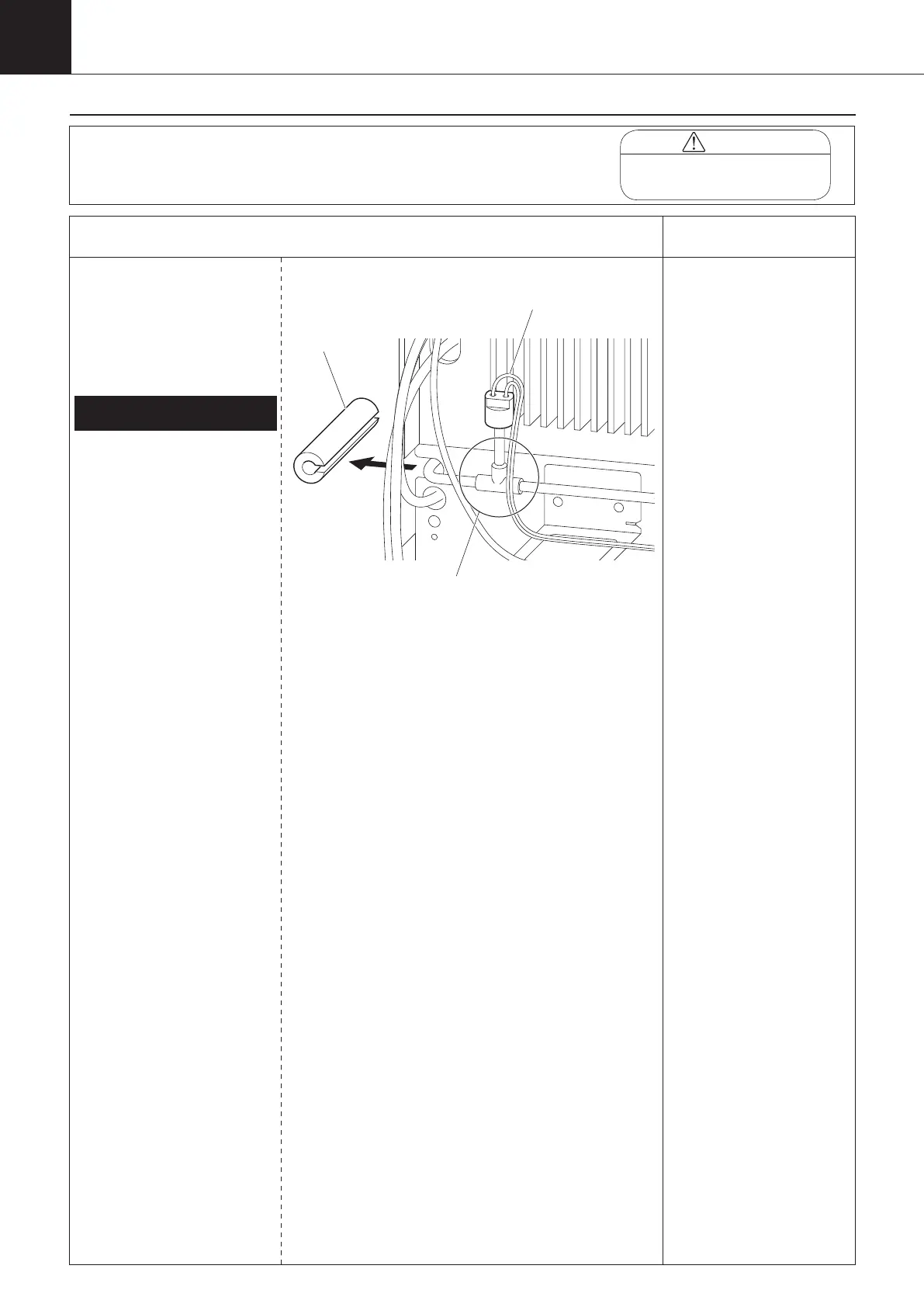

Removing high pressure switch (S3PH)
(S3PH)
Heat insulating
material
Brazing
