●Disassembling Procedure
145
8
Disassembling Procedure
Disassembling
Procedure
Work Procedure Point
WARNING
Before disassembling work, be sure
to turn OFF all power supplies.
1 Remove the switch box
cover, top panel, back
panel, left side panel,
and right side panel
in accordance with
“Procedure for Removing
Outside Panel Block
(P.133)”.
① Remove the tapered
screw and take out the
outlet oil thermistor (Th-2).
② Discharge oil from oil
drain.
① Unscrew the four screws
from the evaporator cover.
② Loosen the oil outlet pipe
and remove the hose.
③ Remove the heat
insulating material and
remove the two brazing
points.

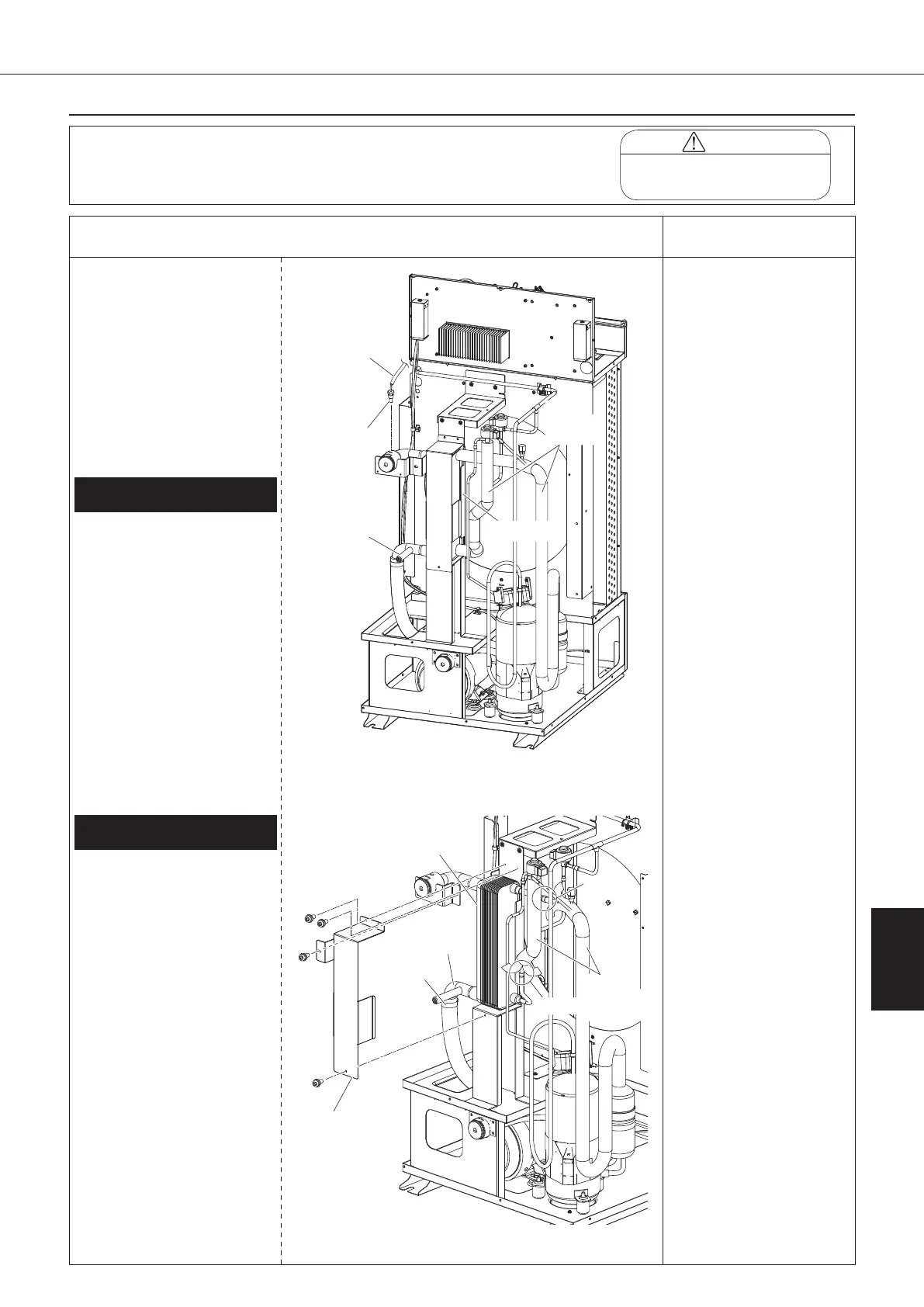

Procedure for Removing
Evaporator
1.
Discharging oil
2.
Removing evaporator
Outlet oil
thermistor
(Th-2)
Tapered
screw
Oil drain
Evaporator
Heat
insulating
material
Brazing
Oil outlet pipe
Hose band
Evaporator
cover
Evaporator
Brazing
Heat
insulating
material
