Disassembling Procedure
Work Procedure Point
WARNING
Before disassembling work, be sure
to turn OFF all power supplies.

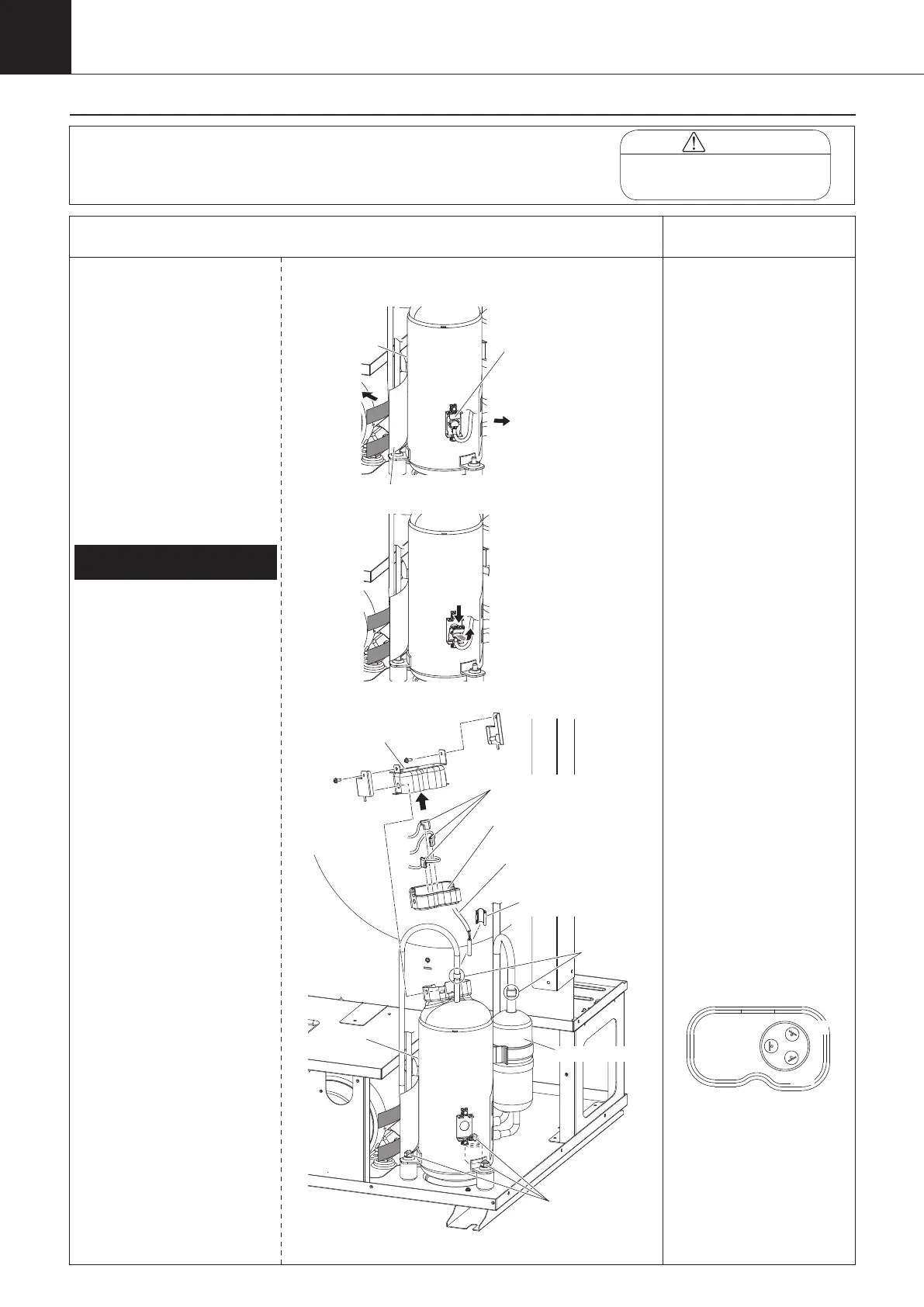

Procedure for Removing
Compressor
*1, 2, 3
1
Remove the switch box
cover, top panel, back panel,
left side panel, and right side
panel in accordance with
“Procedure for Removing
Outside Panel Block
(P.133)”.
1 Remove discharge
thermistor (Th-6) with
“Procedure for Removing
Thermistors (P.147)”.
① Recover refrigerant from
the service port.
② Remove the protective
material.
③ Remove the compressor
protection thermostat
(S2T).
④ Unscrew the two screws
to take off the terminal
cover.
⑤ Disconnect the lead wire
from the compressor
terminal section.
⑥ Remove the compressor
terminal cover sealing
material.
⑦ Unscrew the three
mounting nuts of the
compressor.
⑧ Disconnect the 2 brazing
sections to remove the
compressor (M2C).
Roll up the dew proofing
tube to expose the brazing
sections before brazing
the suction pipe.
1.
Removing compressor (M2C)
*1
When replacing the
compressor (M2C), prepare
the accumulator heat insulator
(upper and lower) separately,
and attach it. Running the unit
without the accumulator heat
insulator, condensation may
occur, causing water to drip
outside the unit.
*2
Once the compressor
protection thermostat (S2T)
is removed, the radiation
sheet can no longer be used.
In that case, replace with
new one.
*3
After the compressor (M2C)
is replaced, the cumulative
compressor (M2C) running
time must be reset. Input
“ 0011 ” into the parameter
n035, and reset the cumulative
compressor running time. (refer
to page 67)
After input the parameter,
turning ON the power supply
again.
*4
Compressor terminal signal
U
W
V
(Red)
(Blue)
(Yellow)
Protective material
Compressor protection
thermostat (S2T)
Compressor
(M2C)
(1)
(2)
(1)
While pushing the
upper part,
(2)
pull it toward you and
remove it upward.
Accumulator
Fixing spring
Discharge
thermistor (Th-6)
Compressor lead wire
Compressor terminal
cover sealing material
Compressor
mounting nut
Compressor
(M2C)
Terminal cover
Brazing
